ADJUSTMENTS
-17-
There are three fence angle stops: 90˚, 45˚
inward, and 45˚ outward. The angle stops allow
the fence to be quickly and accurately posi-
tioned at various angles.
To adjust the 90˚ angle stop, do these steps:
1. Using a machinist’s square, position the
fence 90˚ relative to the table surface
(
Figure 21).
2. Position the limit plate in the forward slot
of the 90˚ slide stop.
3. Loosen the jam nut on the 90˚ stop slide.
4. Using a flat-head screwdriver, adjust the
setscrew on the 90˚ stop slide until the peg
makes contact with the back of the fence
(
Figure 22).
5. Retighten the jam nut loosened in step 3.

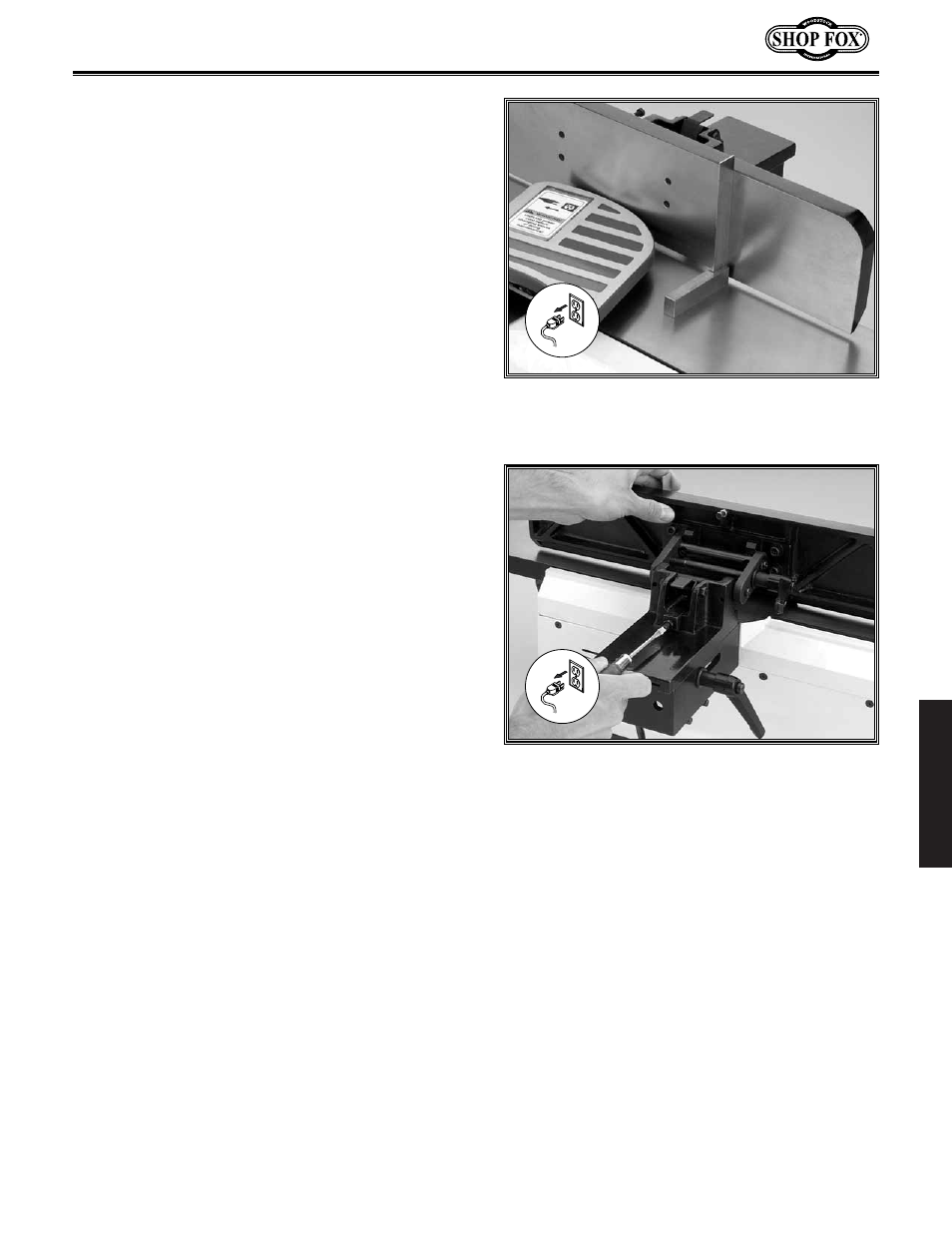

Figure 21. Setting the fence to 90˚.
Figure 22. Adjusting the 90˚ stop slide.
Fence Angle Stops
