Sears 316.79197 User Manual

Page 5

background image

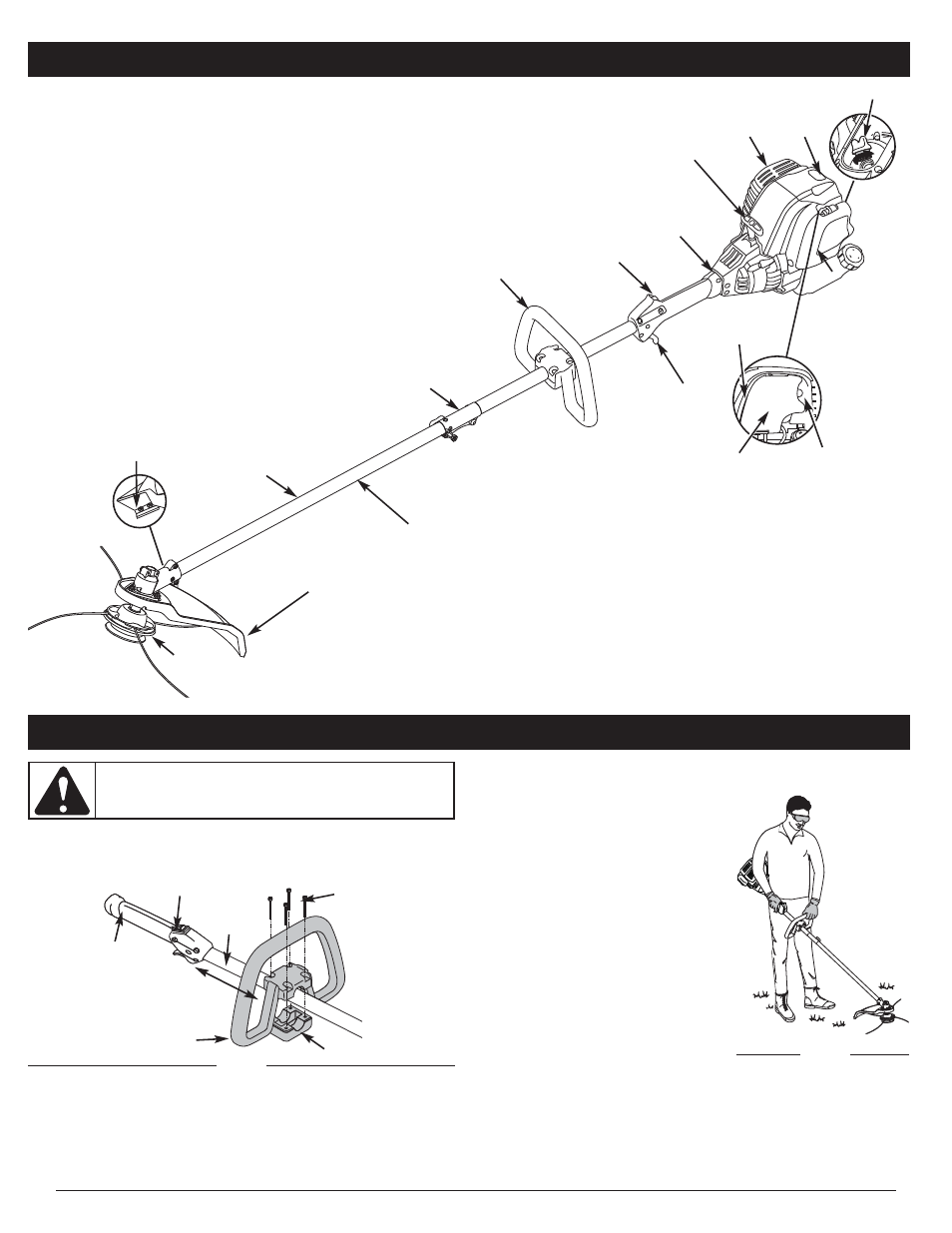

Cutting Attachment

Shield

Fuel Cap

Throttle

Control

D-Handle

Hassle-Free™ Plus

Shaft Grip

Primer Bulb

Oil Fill Plug

Cold Weather

Start Lever

Shaft

Housing

Starter Rope

Grip

Muffler

Craftsman®

Convertible™ Coupler

On/Off Stop

Control

Air Filter Cover

ADJUSTING THE D-HANDLE

1.

Loosen the screws on the D-handle (Fig. 1).

2.

While holding the unit in the operating position (Fig. 2), position
the D-handle to the location that provides you the best grip.

3.

Tighten the clamp screws evenly, until the D-handle is secure.

Fig. 1

(4) Screws

Shaft Grip

Shaft

Housing

On/Off Stop Control

Minimum 6 Inches

(15.24 cm)

D-Handle

Bottom Clamp

Spark

Plug

KNOW YOUR UNIT

ASSEMBLY INSTRUCTIONS

INSTALL LINE TRIMMER ATTACHMENT

NOTE: To make installation easier,

place the unit on the ground or
on a workbench.

1.

Turn knob counterclockwise to
loosen coupler (Fig. 16, p. 9).

2.

While firmly holding attachment,
push it straight into the coupler
until the release button snaps into
the primary hole (Fig. 17, p. 9).

NOTE: Aligning the release button with

the guide recess (Fig. 17, p. 9)
will help installation.

3.

Turn the knob clockwise to tighten.

LINE TRIMMER APPLICATIONS
Cutting grass and light weeds; edging;
and decorative trimming around trees,
fences, etc.

Line

Cutting

Blade

WARNING:

DO NOT ATTEMPT TO USE THIS UNIT

UNTIL THE D-HANDLE HAS BEEN ROTATED INTO
OPERATING POSITION (Fig. 1).

Fig. 2

Trimmer

Attachment

5
