Hooking Up and Setting Up the Speaker System
13
GB
STR-DE595/DE495 4-245-327-12(1) GB
B Monaural audio cord (not supplied)
Black

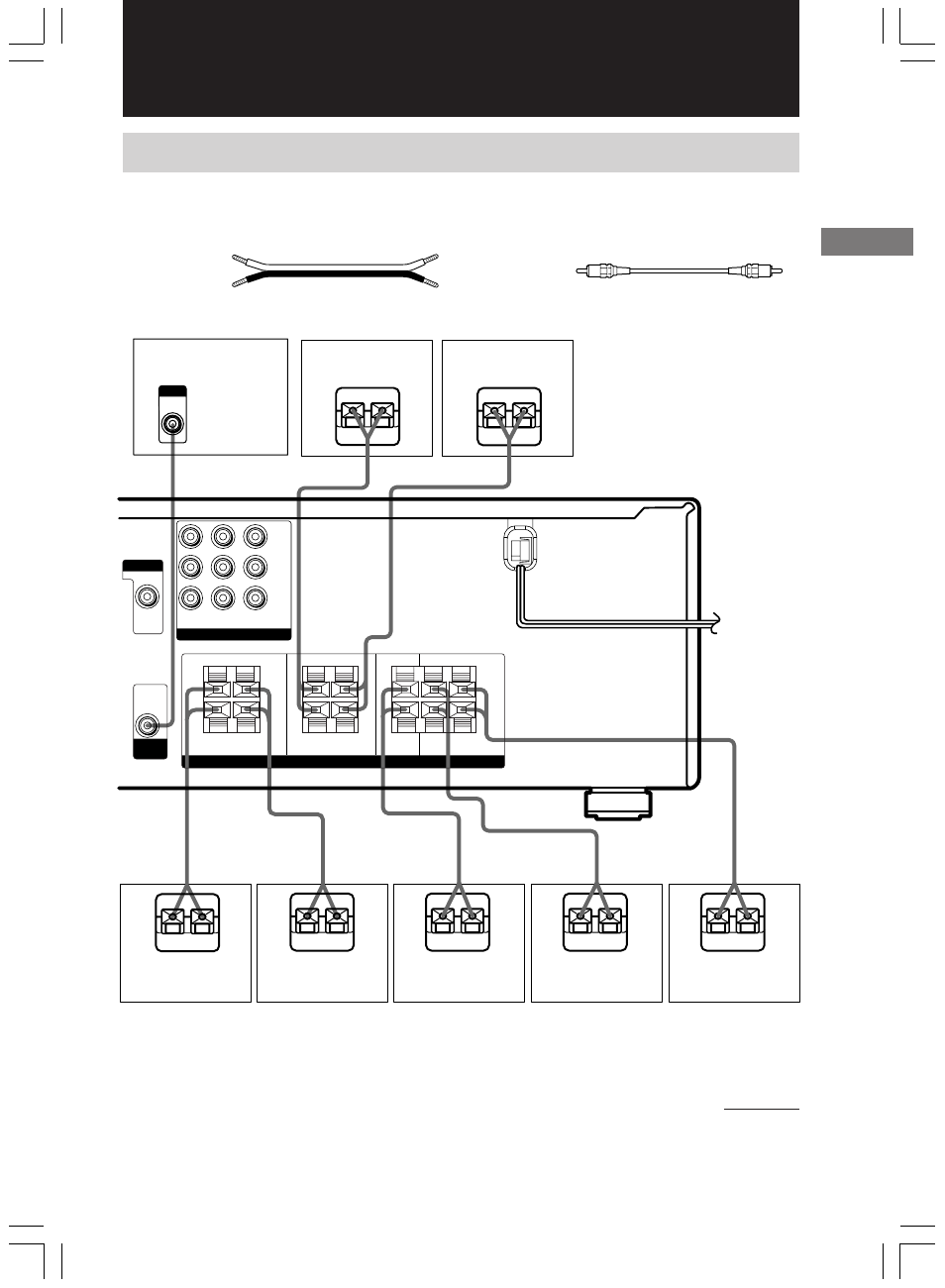

Speaker system hookups
Required cords
A Speaker cords (not supplied)
(+)
(–)
E e E e
A A
INPUT
AUDIO
IN
B
E e E e E e
A A A
E e
A
E e
A
Y
P B /B–Y
P R /R–Y
IMPEDANCE USE 8-16Ω
COMPONENT VIDEO
SPEAKERS
SUB
WOOFER
AUDIO
OUT
FRONT B FRONT A CENTER SURROUND
DVD IN VIDEO 2
IN
MONITOR
VIDEO OUT MONITOR
OUT
R
R
L
L
R
R
L
L
R
R
L
L
+
–
+
–
+
–
+
–
+
–
+
–
Hooking Up and Setting Up the Speaker System
Front speaker A
(L)
Front speaker A
(R)
Center speaker Surround speaker
(L)
Surround speaker
(R)
Active sub woofer
continued
Front speaker B*
(L)
Front speaker B*
(R)
* (STR-DE595 only) If you have an additional front speaker system, connect them to the SPEAKERS FRONT B
terminals. You can select the front speakers you want to use with the SPEAKERS (OFF/A/B/A+B) button (page
22).
