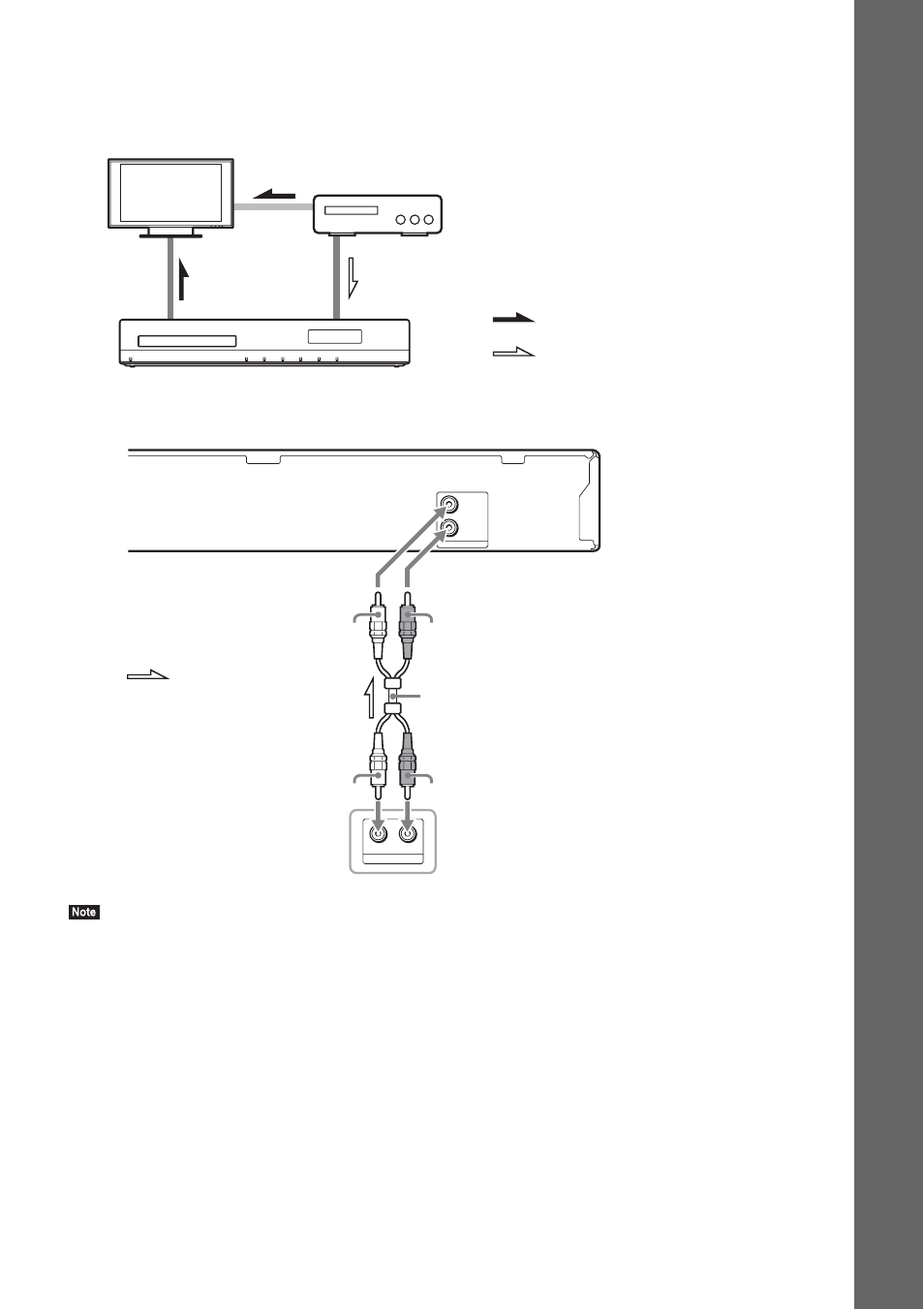

When the component does not have an HDMI OUT jack
Connect the system so that video signals from the system and other component are sent to the TV, and
audio signals from the component are sent to the system as follows.
If the component plays sound only, connect the audio output of the component to the system.
• If you make connection above, set [Control for HDMI] in [HDMI Settings] of [System Settings] to [Off] (page 49).
• You can enjoy component sound by selecting the “AUDIO” function (page 22).
System
Signal flow
TV
: Audio signal
: Video signal
Component
Video out
Audio out
AUDIO OUT
L R
AUDIO IN
R
L
AUDIO
To the audio out jacks of the VCR, digital
satellite receiver, PlayStation, or portable
audio source, etc.
Audio cord (not supplied)
Rear panel of the unit
Red White
Red White
: Signal flow
