Mother board block diagram – StarTech.com ESY1525L User Manual
Page 21
MEMORY
PC133/SDR
BOOT ROM
REALTEK
RTL8100C FAST
ETHERNET
CONTROLLER
VIA VT82C686B
SOUTHBRIDGE
PERIPHERAL
CONTROLLER
SOUND
KEYBOARD
MOUSE
HARD DRIVE
2 SERIAL PORTS
4 USB PORTS
WINDBOND
W83977F
I/O
CONTROLLER
TI PCI1410
PC CARD
CONTROLLER
2 SERIAL PORTS
PCMCIA
FAST
ETHERNET
VIA VT8606 TWISTER
NORTHBRIDGE
GRAPHICS CORE AND
MEMORY CONTROLLER
LCD
DISPLAY
VIA EDEN
ESP 600 MHZ
PROCESSOR
FSB
PCI

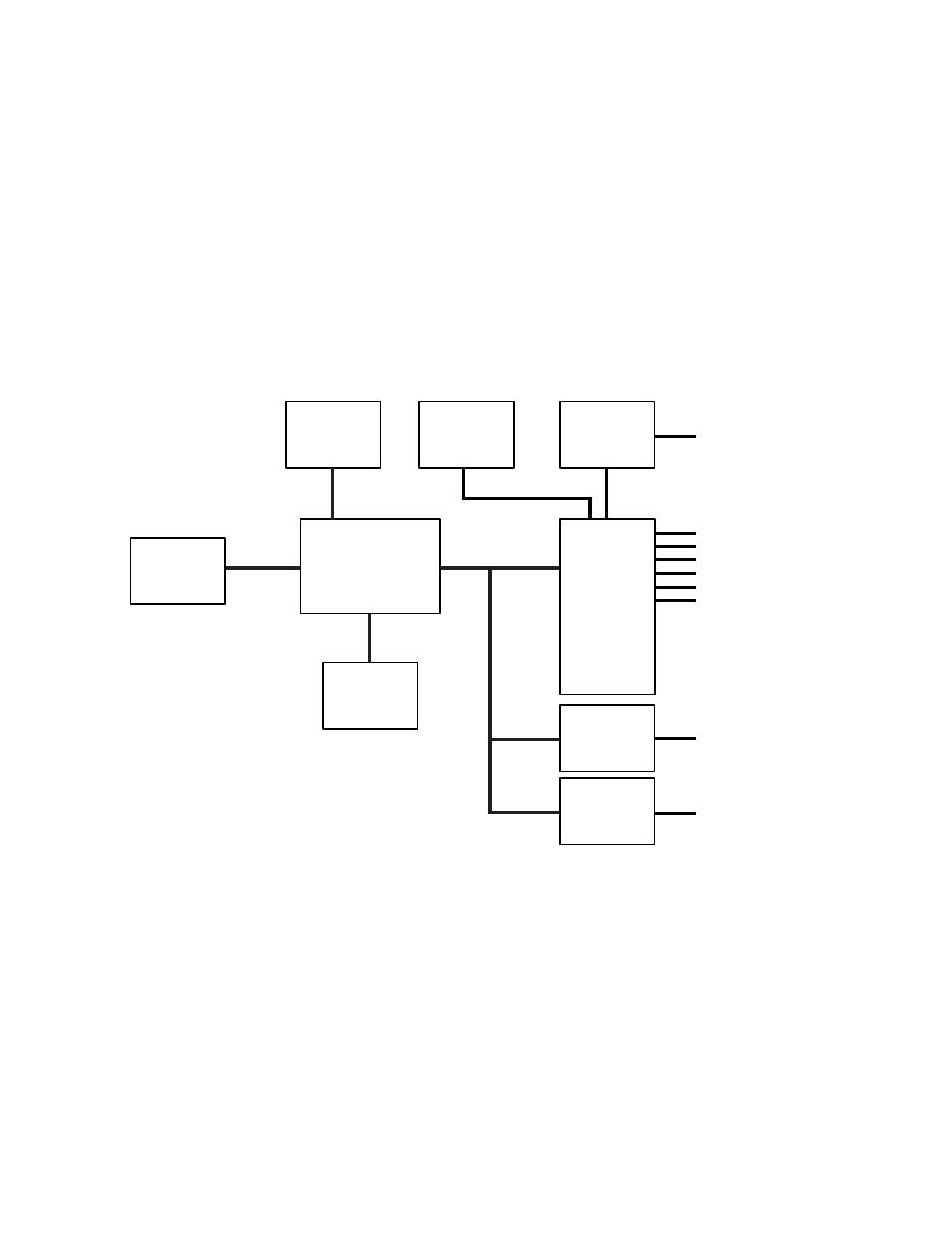

Mother Board Block Diagram
4-16
