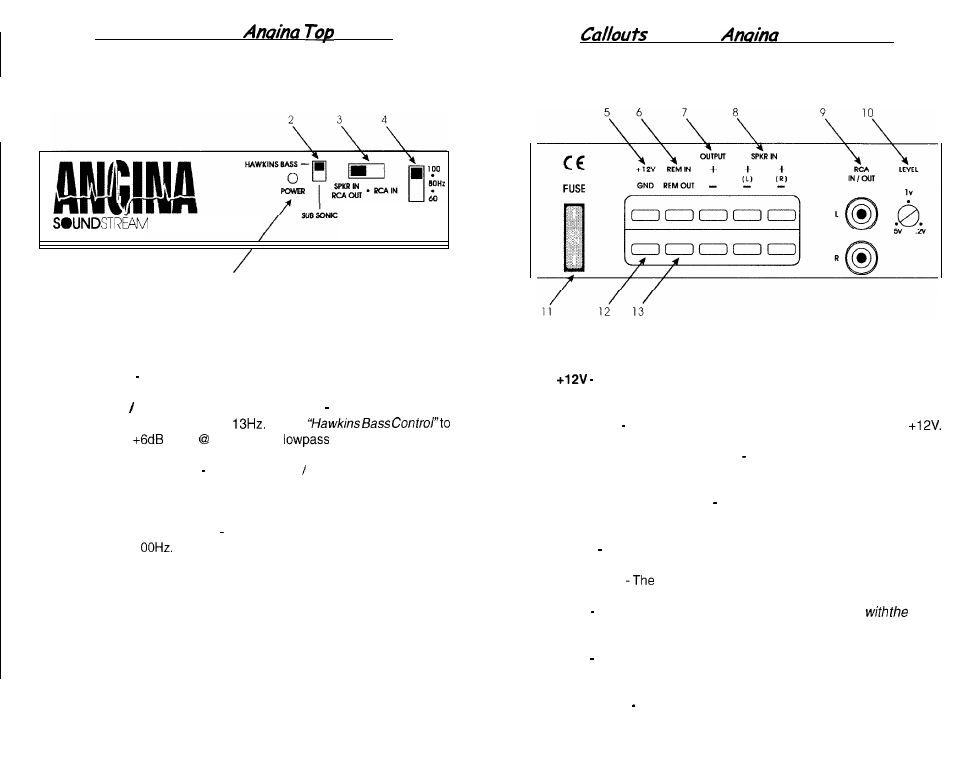

Cal/outs for the
Panel
for the Front Panel
LP
X-OVER
1
1.
2.
3.
4.
Power LED Indicates amplifier power.
Subsonic Hawkins Bass Control Switch Select “Subsonic” to
engage the Subsonic filter at
Select
engage the boost 45Hz for the channel.
Input Selection Switch Select “SPKR IN RCA OUT” to engage the
high level speaker inputs and the RCA’s become outputs to run to an-
other amplifier. Select “RCA IN” to engage the RCA’s as inputs.
Low Pass XOVER Switch A selectable crossover frequency switch
at 60, 80 or 1
8
5.
6.
7.
8.
9.
10.
11.
12.
13.
Connected to a fuse or circuit breaker, then to the battery’s
positive terminal.
Remote In Remote turn-on input from the head unit. Accepts
Speaker Connection Terminal Speaker connections to the mono
sub channel.
High Level Speaker Inputs Left and right inputs from a speaker level
source.
Inputs Right and left RCA inputs for the mono sub channel.
Input Level mono channel input level control.
Fuse Main power supply fuse. Warning: Replace only same
value fuse!
GND Main ground connection. Bolt to a clean chassis point in the
vehicle.
Remote Out Remote turn-on output to control a second amplifier.
