Installation/Operation Supplement
25 M414881 (EN)
Electronic OPL Control
H, L, P, S, U, X and Y Models with
RM Control Suffix
1. To use an Automatic Cycle, press an ON/
SELECT pad. Select HIGH, MEDIUM,
MED LOW, LOW or NO HEAT for items that
should not be dried with heat. A light to the left
of the selected pad lights up.
To use a Time Dry or Custom Cycle, refer to the
Programming Manual.

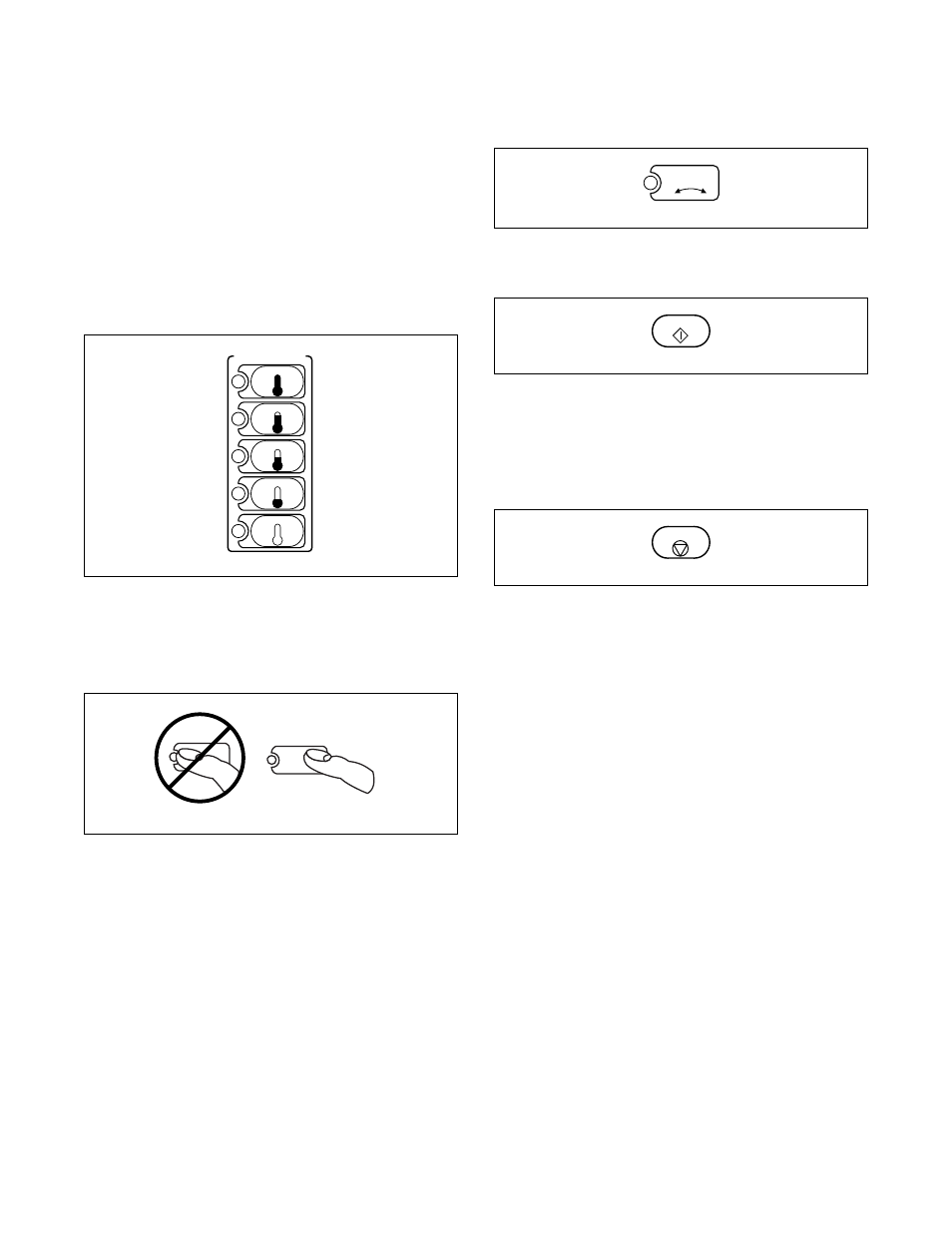

Figure 15
NOTE: Do not press directly on lights or the center
of pad. For proper selection, press on pad slightly
to the right of center. Refer to Figure 16.
Figure 16
2. Select REVERSING or NON-REVERSING
cylinder rotation setting.
Figure 17
3. Press START pad to start tumbler.
Figure 18
NOTE: All pads can be pressed in any sequence
without damaging control or tumbler. To stop the
tumbler at any time, open the door or press STOP/
RESET.
Figure 19
NOTE: The window display will flash. Press STOP/
RESET twice (within three seconds) to end the
cycle and reset the control to idle status. To restart
the tumbler, CLOSE door and press START pad.
IMPORTANT: If the loading door or lint panel
door is opened during the cycle, the heating system
will shut off and the motor will stop. To restart the
cycle, both doors must be closed and the START
pad must be pressed.
4. When the cycle is complete, open door and
remove the laundry.
TMB1483N
TMB806N
HIGH
MEDIUM
MED LOW
LOW
NO HEAT
ON / SELECT
TMB1486N
TMB1485N
TMB1484N
REVERSING
START
STOP/RESET
