Step 3 - Place a Video Shelf on 8˝ Pillars

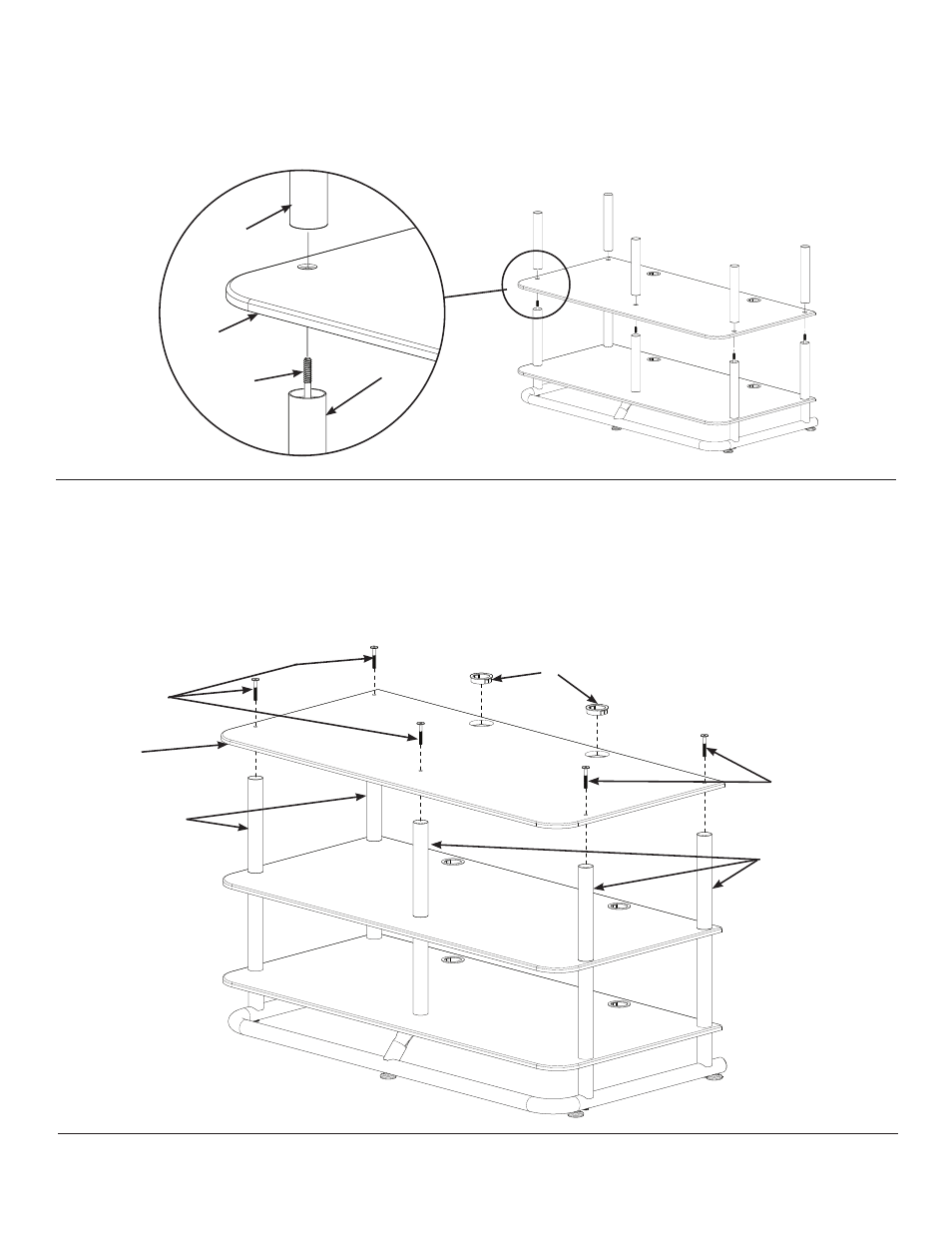

Place the next Video shelf on the 8˝ Pillars.
Thread a new 8˝ Pillar ( A) onto each Shelf Connector (C) and firmly hand tighten.
Diagram 3
A
Video
Shelf
C
Step 4 - Secure new Top Video Shelf to 8” Pillars
Place the new Video Shelf ( B) on the new 8˝ Pillars (A); then, using an Allen Key and the five Top Bolts, secure the new
Video Shelf to the new 8˝ Pillars.
Install the two new Wire Bushings ( D).
Diagram 4
8˝ Pillar
Sanus Systems 2221 Hwy 36 West, Saint Paul, MN 55113 2.07.06 (100014)
Customer Service: 800.359.5520. See complementary Sanus products at www.sanus.com
Top
Bolt
D
A
B
Top
Bolt
A
