28 Optional Connections
Acceptable input signal
A Audio/video and RGB signal
B Audio/video and S video signal
C Audio/video and S video signal
D Centre speaker input Set “Speaker”
on the Features menu to “Centre in”.
E No inputs
F S Video signal
G Video signal
H Audio signal
I No input
1 2
B
A
C
H
I
DVD
VCR
S.VHS/Hi8/DVC
camcorder
Dolby
Surround
Amplifier
Hi-Fi
F
G
8mm/Hi8/DVC
camcorder
“PlayStation”*
Decoder
D
E
Available output signal
Video/audio from TV tuner.
Video/audio from selected source.
Video/audio displayed on TV screen (monitor out).
No outputs.
Audio signal.
No output.
No output.
No output.
Audio signal to headphones.
To avoid picture
distortion:
• Do not connect
equipment to
F and G
connectors at
the same time.
VCR

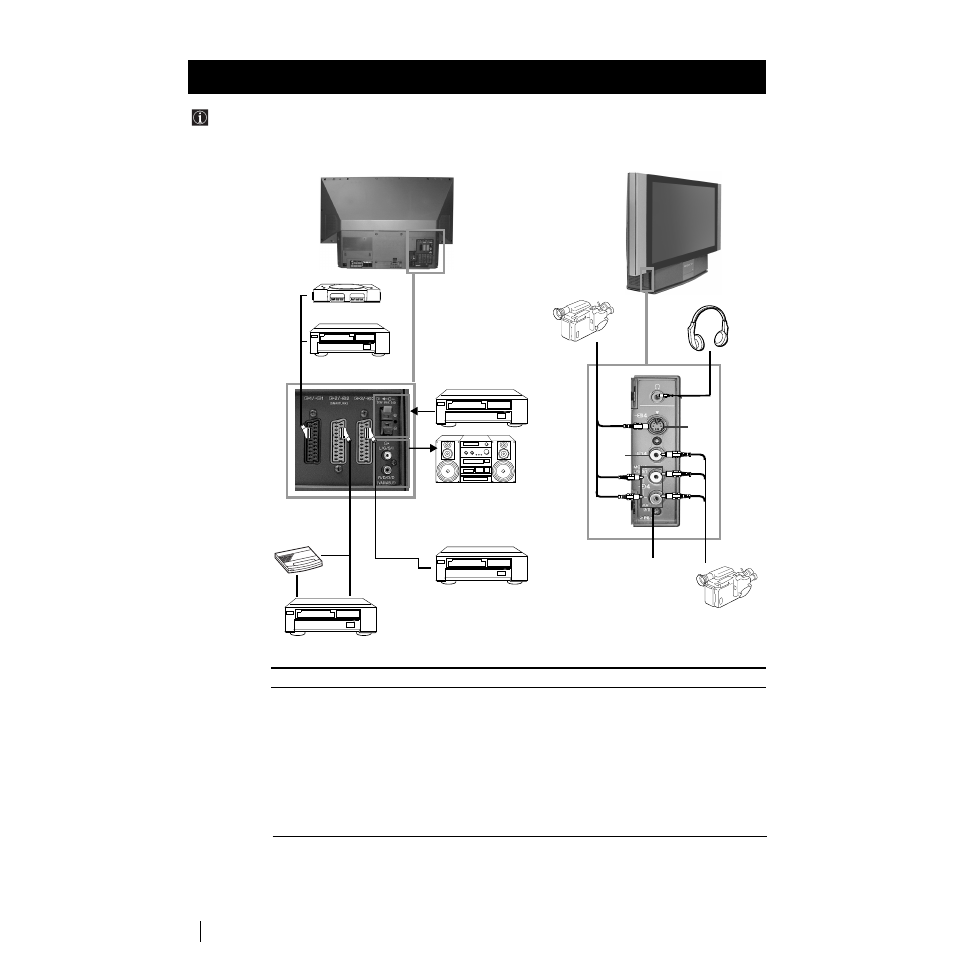

Optional Connections
Using the following instructions, you can connect a wide range of optional equipment to this set.
Connecting Optional Equipment
* “PlayStation”
is a product of
Sony
Computer
Entertainment,
Inc.
* “PlayStation”
is a trademark
of Sony
Computer
Entertainment,
Inc.
