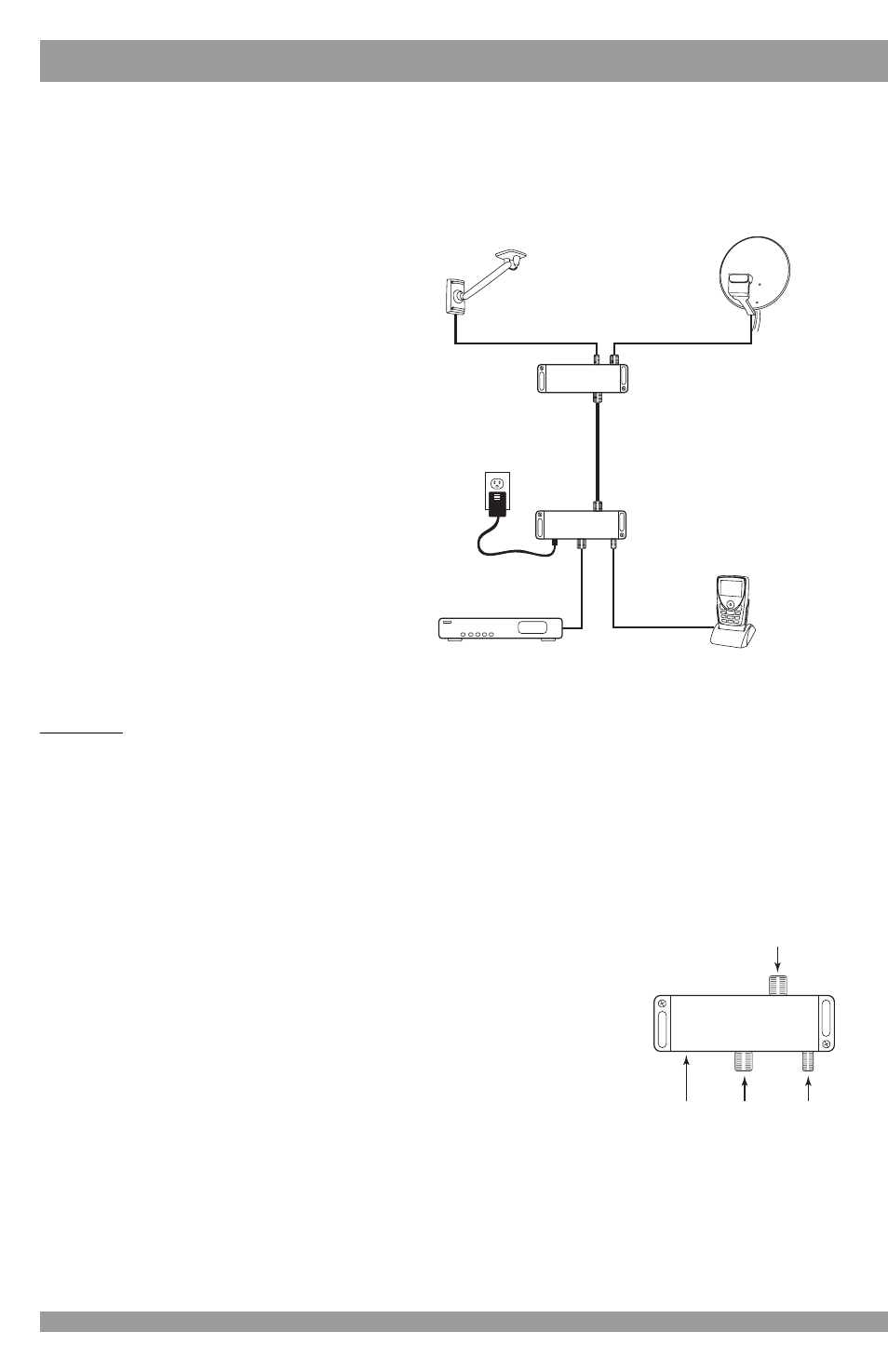

10 SIRIUS/DBS Signal Combiner/Splitter Installation Guide
3. Connect one end of the 3 ft. RG-6 cable (shown as F on page 3) to the device
from which the cable in Step 2 was disconnected (i.e., the satellite dish LNBF, or
the multiswitch, or the signal splitter, etc.).
4. Connect the other end of cable F
to the Signal Combiner connector
labeled DBS IN. When connected,
be sure to slide the rubber boots
on each end of the cable over the
connections to protect the
connections from the weather
elements.
5. Connect one end of the 30 ft. RG-
58 cable (shown as E on page 3)
to the SIRIUS outdoor antenna.
6. Connect the other end of cable E
to the Signal Combiner connector
labeled SIRIUS IN. When
connected, be sure to slide the
rubber boots on each end of the
cable over the connections to protect the connections from the weather elements.
Indoors:
1. Install the Signal Splitter (shown as B on page 3) near to where the cable which
brings the signal from the satellite TV dish terminates. Use the provided screws
for mounting.
2. Disconnect the cable which brings the signal from the satellite TV dish from the
device that it is connected to (i.e., a Receiver/Tuner, or a Multiswitch, or a
DishPro Adapter, etc.), and connect this cable to the Signal Splitter connector
labeled COMBINED IN. When disconnecting this cable,
make a note of where it was connected for the next
installation step.
3. Connect one end of the 10 ft. RG-6 cable (shown as H on
page 3) to the device from which the cable in Step 2 was
disconnected (i.e., the Receiver/Tuner, or the Multiswitch,
or the DishPro Adapter, etc.).
4. Connect the other end of cable H to the Signal Splitter
connector labeled DBS OUT.
5. Connect one end of the 10 ft. RG-58 cable (shown as G on page 3) to the Signal
Splitter connector labeled SIRIUS OUT.
6. Connect the other end of cable G to your SIRIUS receiver.
SPLITTER
COMBINED IN
DBS
OUT
POWER
IN
SIRIUS
OUT
COMBINER
SPLITTER
CABLE "E" CABLE "F"
EXISTING
SATELLITE
TV CABLE
CABLE "H" CABLE "G" SIRIUS
RECEIVER
RECVR/TUNER
"A"
"B"
"C"
