9. How to Use Network Viewer
Computer
Access Point
Server Instruction
Server Instruction
FTP Server
Computer
Server Instruction
Image Data
Network Projector
Wireless Communication Mode :
Infrastructure
Computer
Wireless Communication Mode:
Infrastructure
Network Projector
Wireless Communication Mode:
AdHoc
Computer
Wireless Communication Mode:
AdHoc
Server Instruction
FTP Server Computer
Wireless Communication Mode :AdHoc
Image Data

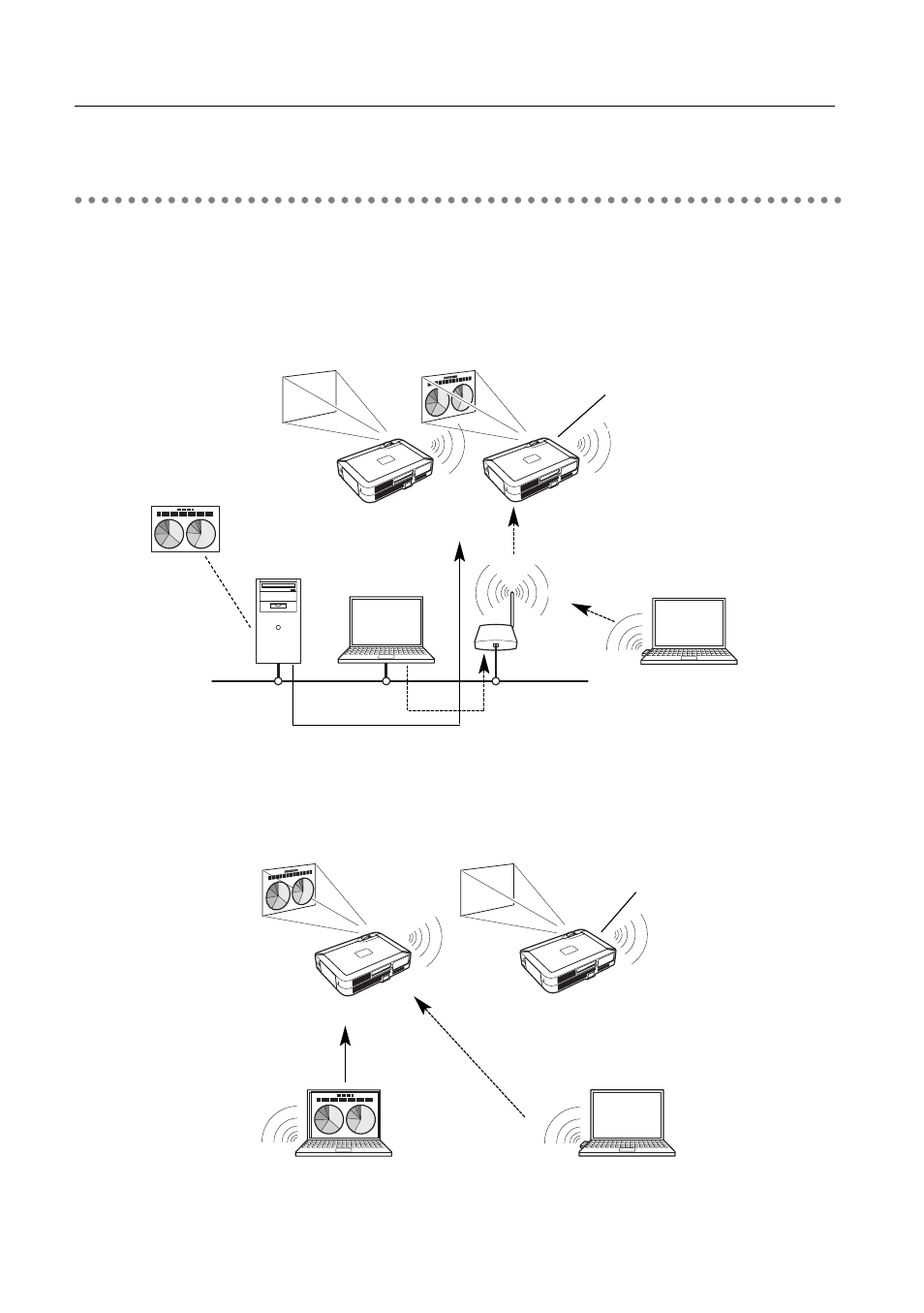

The Mechanism of Network Viewer and the Flow of the Signal
Network Viewer is to project an image stored on a FTP server which is on the same LAN as a
computer, through the projector by operating a computer or a projector. The flow of the signal
for each communication mode is shown below.
■ Wireless LAN Infrastructure Communication Mode
■ Wireless LAN AdHoc Communication Mode
