Page 5
1. Handle grip
2. On/Off switch
3. Handle assembly
4. Retaining ring
5. Cover release flap
6. Dust bag housing
7. Front cover
8. Housing release button
9. Power head with brush
10. Cable (cord)
11. Attachment tube handle
12. Attachment hose
13. Carrying handle
14. Cable (cord) hook
15. Attachment tube (active wand)
16. Crevice nozzle
17. Upholstery nozzle
18. Pile adjustment knob
19. Foot pedal
20. Swivel neck
21. Support lever
22. Handle release catch
23. Projection tab
24. Connecting tube
25. Dusting brush clamp

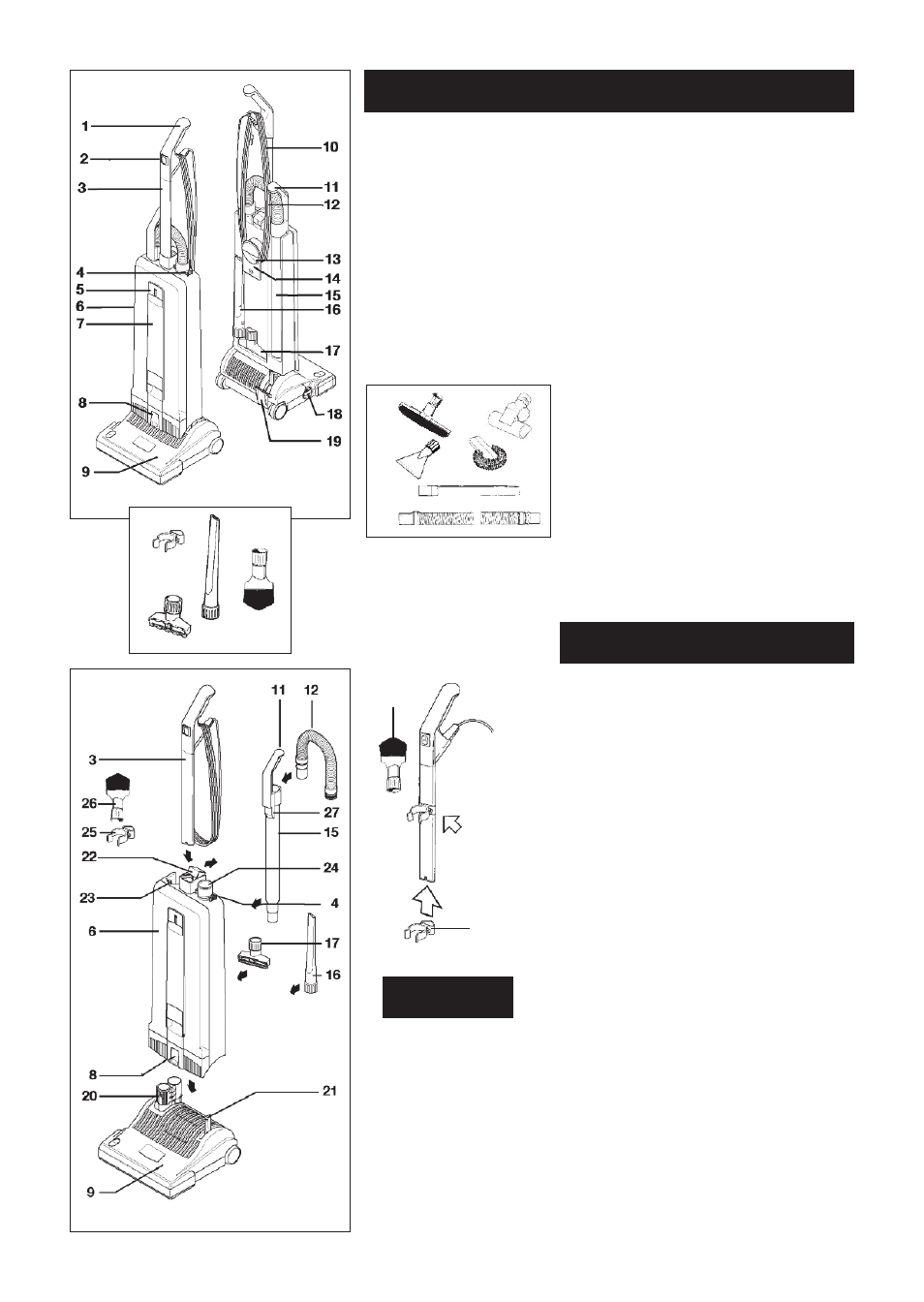

Identification of Parts
Place the power head (9) on the floor with
the swivel neck (20) and the support lever
(21) upright. Hold the dust bag housing (6)
vertically and place it over the swivel neck
and support lever. Push firmly and evenly
down so that the housing release button (8)
snaps outward to its “locked” position.
Slide the dusting brush clamp (25) onto the
handle tube (3) and tighten the screw. The
handle of the dusting brush (26) will now
snap into the clamp.
To insert the handle tube (3) into the hous-
ing, lift the catch (22), slide the handle in,
making sure that the handle is all the way in
and cannot go any further. Push the catch
(22) down to lock handle in place. If the han-
dle is not pushed fully down, the vacuum will
not work.
Push the black end of the attachment hose
(12) into the connecting tube (24) so that it
clicks into place. Insert the attachment tube
(15) into the swivel neck and push the han-
dle (11) over the projection tab (23).
Insert crevice nozzle (16) and upholstery
nozzle (17) into the recesses in the back of
the machine.
Attach dusting
brush clamp
with screw
25
26
26
17
16
25
Optional Attachments
41. Wall and floor brush - Part # 1325 HG
42. Turbo brush for stairs - Part # 6179 AM
43. Radiator brush - Part # 1496 HG
44. Extension hose (9’3”) - Part # 1495 AM
45. Straight tube - Part # 1084 HG
46. Flat upholstery nozzle - Part # 1090 HG
Also available for odor control - the combined
micro/charcoal filter - Part # 5425 AM
45
Standard Attachments
16. Crevice nozzle
17. Upholstery nozzle
25. Dusting brush clamp
26. Dusting brush
Assembly
42
43
46
44
41
Note
All illustrations shown
in this manual repre-
sent the G1 model
except where part
numbers and instruc-
tions are
different for each
model. In those
instances, illustrations
for both the G1 and
G2 will be shown.
