ENFORCER IR LED Bullet Cameras
SECO-LARM U.S.A., Inc. 3

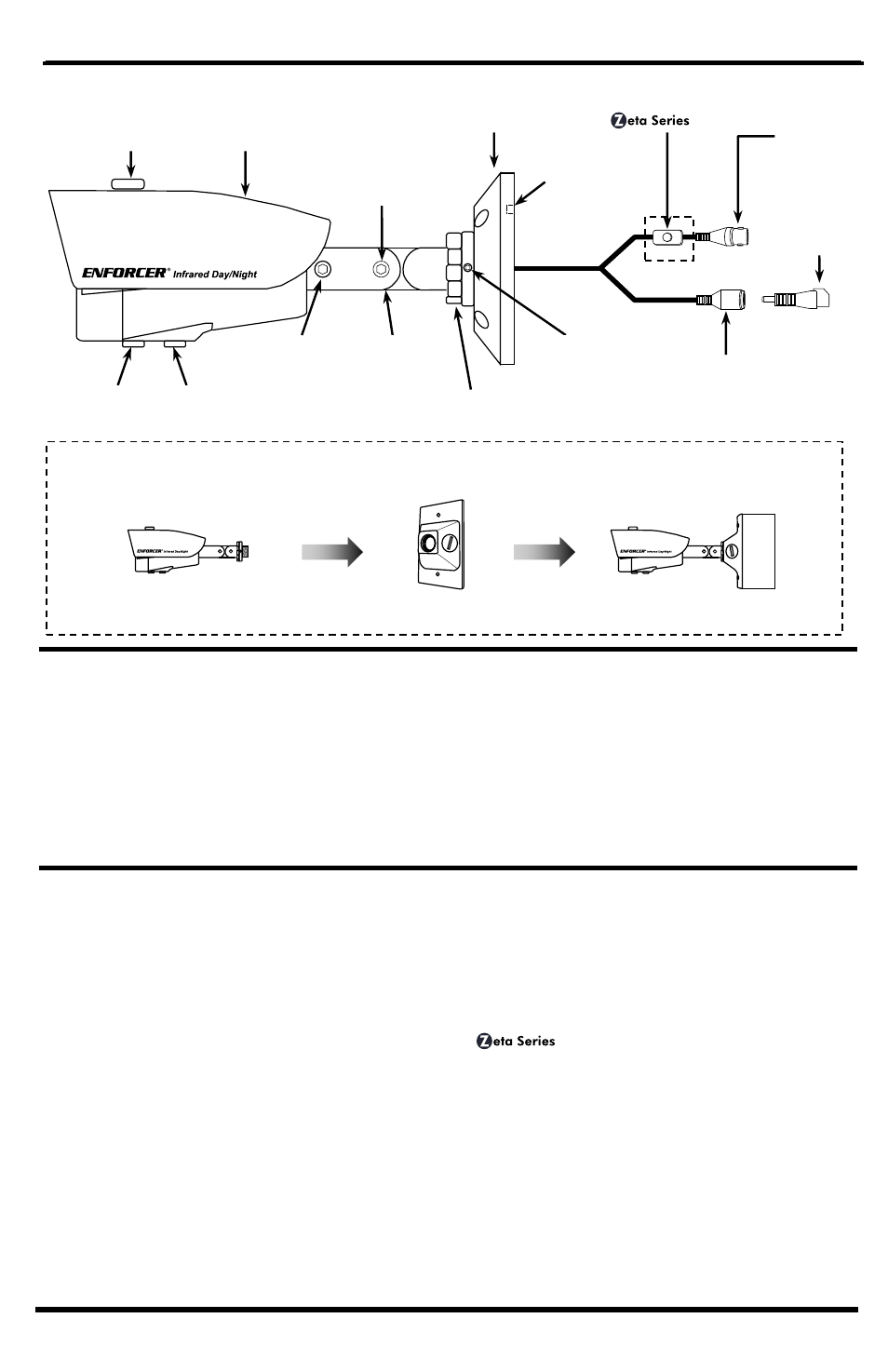

Overview:
*EV-1196-NKGQ and EV-1816-NKGQ only.
1. Run a 12VDC power supply wire and a video cable
with a male BNC connector through the wall to where
the camera is to be mounted.
2. Temporarily connect the camera to the 12VDC power
supply. Do not cut the DC jack or female BNC plug
as warranty will be voided. If needed, use the
included SECO-LARM DC plug with
terminal block.
3. Temporarily connect the camera’s female BNC jack to
the video cable’s male BNC plug. While watching the
monitor, hold the camera bracket by hand against the
wall where it is to be mounted, then twist the camera
until it is certain that this mounting location is correct.
Use a pencil to mark the location of the four screw
holes in the bracket.
4. Disconnect the 12VDC power supply and video cable.
5. Mount the bracket to the wall using the four included
mounting screws.
6. Reconnect the 12VDC power supply and video cable.
Turn the monitor on and make sure the camera is sending
the proper video signal.
7. To adjust the camera angle, loosen and tighten the
adjustment nut, or loosen and tighten either of the two
screws on the mounting arm. Adjust until the desired
scene is displayed.
8. only: Use the OSD controller (sold separately)
or in-line OSD joystick to adjust camera settings (see the
separate OSD manual).
9. Adjust the zoom and focus using the included hex
wrench. (Varifocal models only.)
10. Do a final test of the video camera and monitor.
Mounting to Lamp Holder Cover Plate
1. Remove mounting base by loosening adjustment screw
and adjustment nut before removing the mounting base
by twisting.
2. Screw the camera onto a lamp holder cover plate and
tighten the adjustment nut and adjustment screw.
Sunshield screw
Installation:
1. Please read this manual carefully and keep it for
future reference.
2. Use the camera within given temperature and
electrical limits.
3. Do not aim the LED light directly at the eyes when the
LEDs are on.
4. Do not point the camera at the sun. Heat could damage
the camera, even when not in use.
5. Do not mount the camera in areas exposed to
radiation, strong magnetic fields, or strong electrical
signals.
6. Do not open or disassemble the camera. There are
no field serviceable parts inside.
7. Do not drop the camera or subject it to strong
vibrations.
Before Starting:
Mounting base
Camera angle
adjustment screw
Adjustment nut
Mounting arm
adjustment screw
Mounting
arm
Sunshield
Zoom* Focus*
Surface mount
knock-out
Remove with a pair of
pliers
Adjustment
screw
Female BNC
connector
DC Plug with
terminal block
DC Jack
ENFORCER IR LED Bullet Cameras can be mounted to a standard lamp holder cover plate (not included).
Unscrew the mounting base from the mounting arm and screw onto the fitting.
In-line OSD joystick
( only)**
**Optional Zeta Series OSD Controller available for added convenience. (Model #: EV-18C)
