ENFORCER IR LED Bullet Cameras
2 SECO-LARM U.S.A., Inc.
Model #
NTSC EV-1186-N3GQ EV-1806-N3GQ
EV-1196-N6GQ
EV-1196-NKGQ
EV-1816-N6GQ
EV-1816-NKGQ
PAL EV-1186-P3GQ EV-1806-P3GQ
EV-1196-P6GQ
EV-1196-PKGQ
EV-1816-P6GQ
EV-1816-PKGQ
Type IR LED Bullet Camera
CCD 1 /
3
” Sony Super HAD II
# of infrared LEDs 30 42
Resolution 480 TV lines 600 TV lines 480 TV lines 600 TV lines
Pickup
elements
NTSC 510x492 pixels 768x494 pixels 510x492 pixels 768x494 pixels
PAL 500x528 pixels 752x582 pixels 500x528 pixels 752x582 pixels
Sync Internal
Video output 1.0Vp-p Composite video, 75Ω
Minimum
illumination
LEDs OFF 0.1 Lux
LEDs ON 0 Lux
Gamma correction 0.45
S/N ratio >45dB
Shutter control Auto Electric Shutter (AES)
Gain control Auto
LED range Up to 75ft (23m) Up to 105ft (32m)
Operating voltage 12VDC
Current
draw
LEDs OFF 87mA 95mA 87mA 95mA
LEDs ON 260mA 270mA 330mA 350mA
Operating temperature 14~122 F (-10~50 C)
Dimensions 7” x 3 1 /
8
” x 3 1 /
8
” (177 x 80 x 80 mm) 7 7 /
8
” x 3 1 /
2
” x 3 1 /
8
” (200 x 90 x 80 mm)
Weight 12-oz (340g) 1-lb 2-oz (510g)
Model # Lens IP Rating
EV-1186-N3GQ EV-1186-P3GQ 3.6mm IP67
EV-1806-N3GQ EV-1806-P3GQ 3.6mm IP67
EV-1196-N6GQ EV-1196-P6GQ 6.0mm IP67
EV-1816-N6GQ EV-1816-P6GQ 6.0mm IP67
EV-1196-NKGQ EV-1196-PKGQ 2.8~12mm IP66
EV-1816-NKGQ EV-1816-PKGQ 2.8~12mm IP66

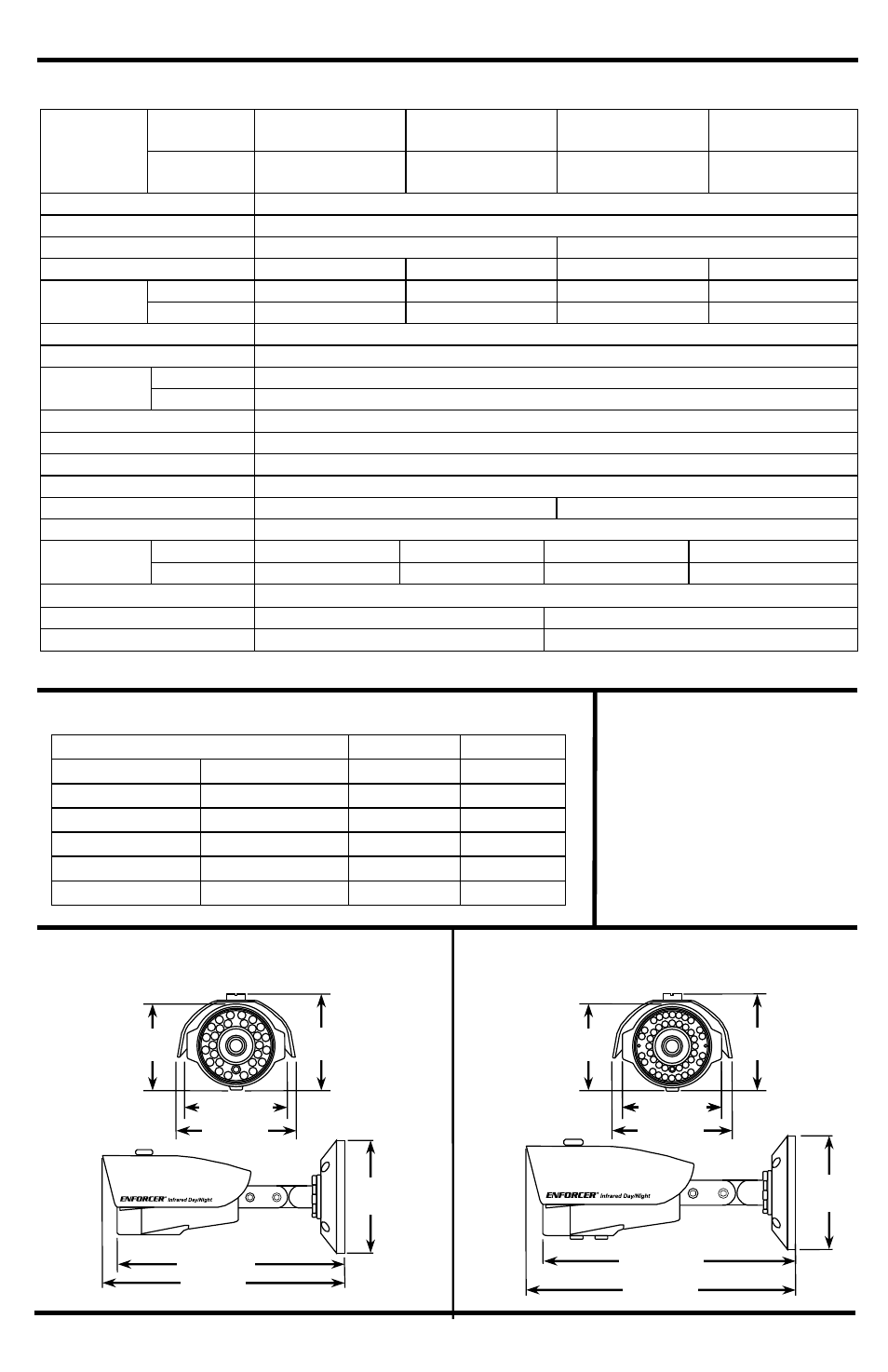

Dimensions:
1 x IR Camera
1 x Hex wrench
1 x Sunshield
1 x Manual
1 x DC Plug with terminal block
4 x Mounting screws
4 x Screw anchors
Specifications:
Lens and IP Rating: Parts List:
6 9 /
16
” (167mm)
7” (177mm)
3 1 /
8
”
(80mm)
3 1 /
8
”
(80mm)
7 7 /
8
” (200mm)
7 11 /
16
” (195mm)
30-LED Models 42-LED Models
3 1 /
8
(80mm)
(85mm)
2 1 /
2
”
(65mm)
2 15 /
16
”
(75mm)
2 15 /
16
” (75mm)
3 1 /
2
(90mm)
85mm)
2 15 /
16
”
(75mm)
3 1 /
8
”
(80mm)
3 3 /
8
” (85mm)
