Schwinn 202 - Manual (Page 5)

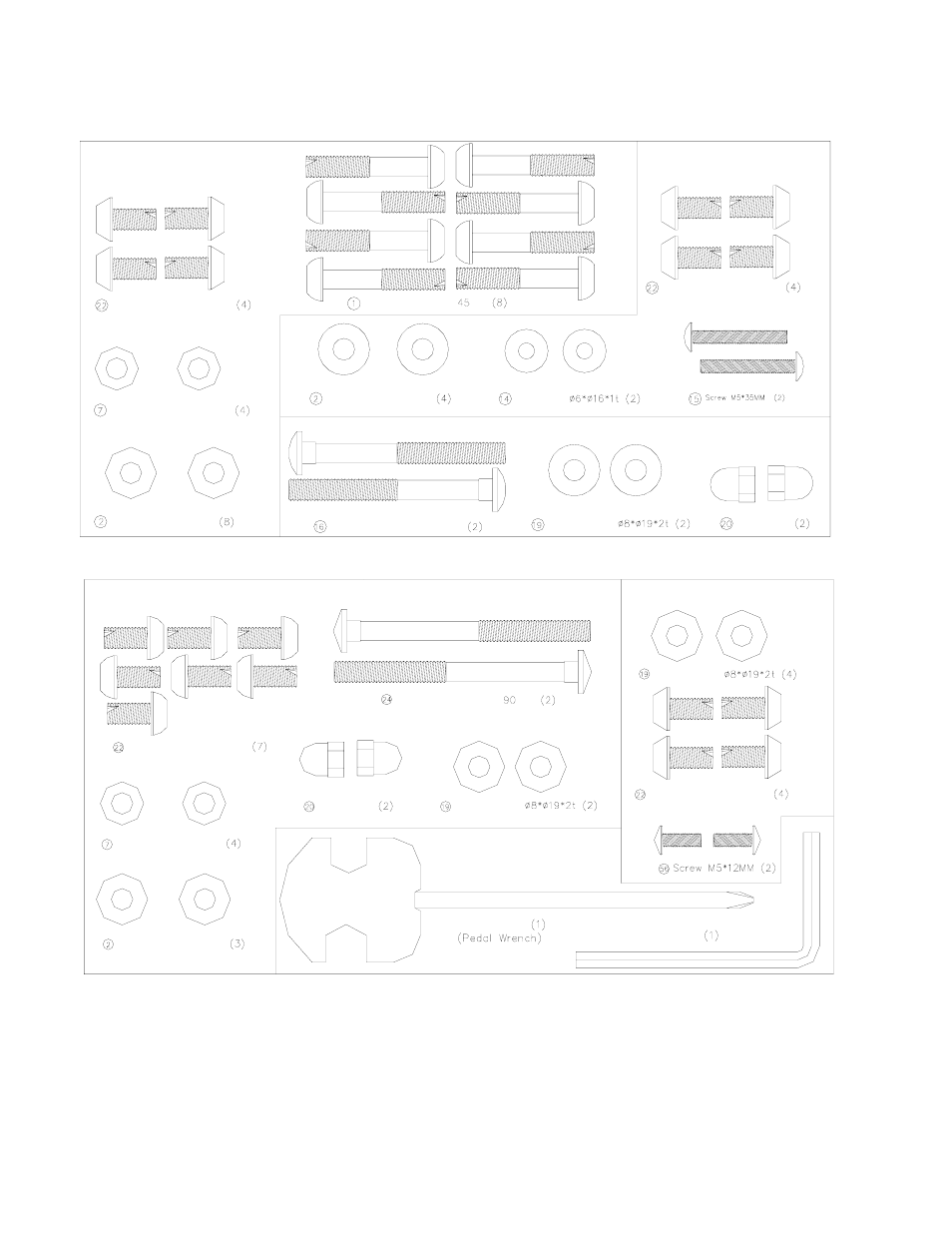

Hardware Chart
Allen Bolt M8xP1.25x16mm
Stage#2
Allen Bolt M8xP1.25x mm
Note: Please verify you have all correct parts and quantities before assembling
unit.
If you are missing items, are short quantities, or have damaged components,
please call 1-800-4-MY-HOME for assistance.
Flat Washer for
ф 8*ф 16*2T
Flat Washer ф 8*ф 19*2T
Allen Bolt M8xP1.25x16mm
Flat Washer
ф 8*ф 19*2T
Flat Washer
Carriage Bolt M8xP1.25x75mm Curved Washer
Stage#3
Acorn Nut M8
Stage#1
Flat Washer
ф 8*ф 19*2T
Flat Washer ф 8*ф 16*2T
Allen Bolt M8xP1.25x16mm
Stage#4
Curved Washer Acorn Nut M8
Carriage Bolt M8xP1.25x mm
Allen Bolt M8xP1.25x16mm
Curved Washer
Stage#5
Allen Key
Screwdriver
