89
Connections for SDTI (QSDI) Dubbing
Ch
apt
er 5
Con
nec
tions
and
S
e
ttin
gs
Connections for SDTI (QSDI) Dubbing

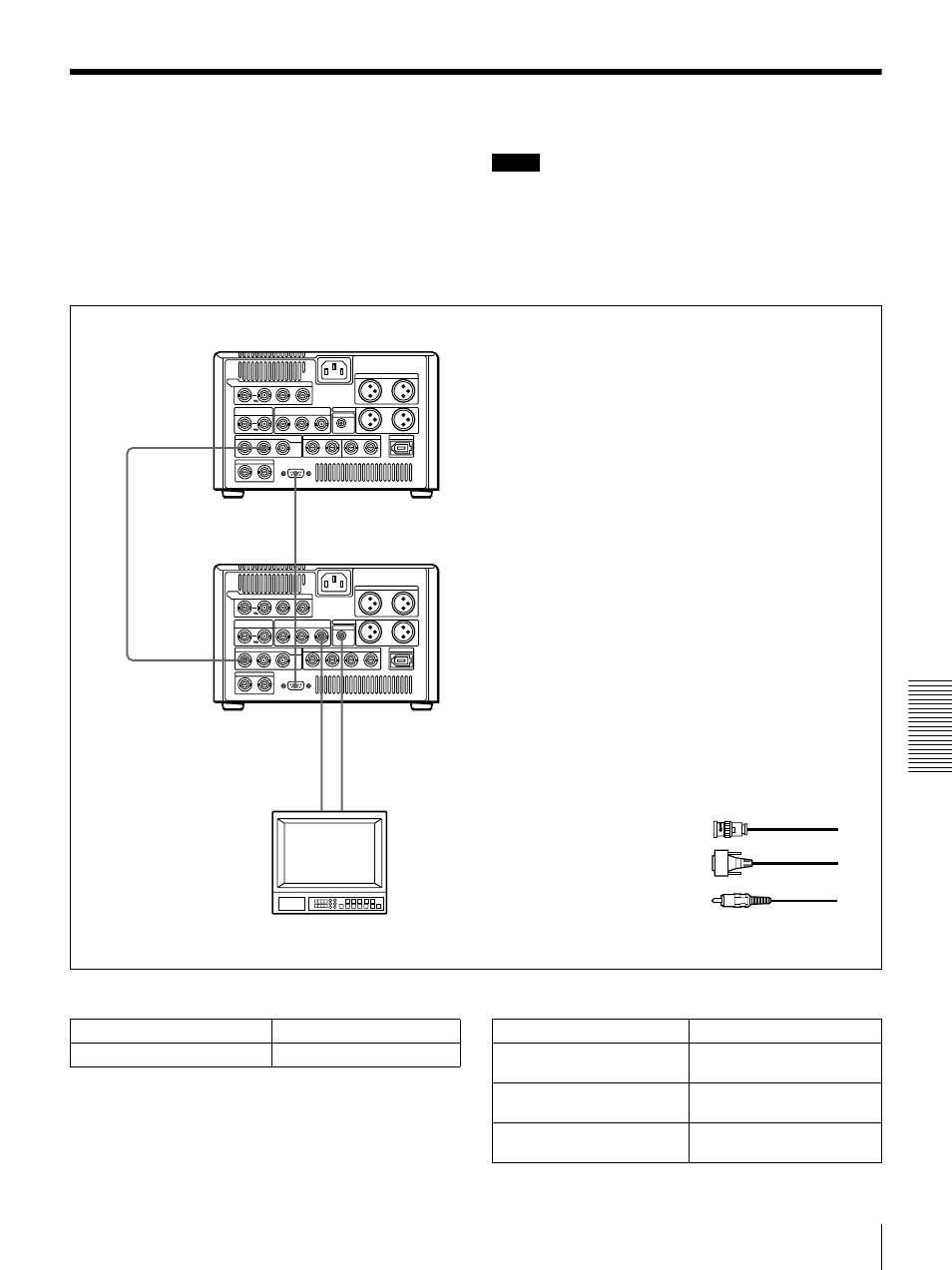

The following shows an example of connections for
digitally dubbing SDTI (QSDI) signals (see page 51) using
a pair of DSR-1500/1500P units.
Notes
• This application requires both of the DSR-1500/1500P
units (recorder and player) to be fitted with the optional
DSBK-1501 board.
• The DSR-1500/1500P units shown in the following
figure are fitted with the optional DSBK-1501, DSBK-
1503, and DSBK-1504/1504P boards.
Settings on the DSR-1500/1500P (recorder) Settings on the DSR-1500/1500P (player)
SDI/SDTI
(QSDI)
OUT
SDI/SDTI
(QSDI)
IN
1
1 3
2
MONITOR VIDEO OUT
B-Y/CPST
(SUPER)
REMOTE
REMOTE
DSR-1500/1500P
(recorder)
Audio input
Composite
video input
C Cable with RCA phono plugs
(not supplied)
B 9-pin remote control cable
(not supplied)
A 75
Ω
coaxial cable (not supplied)
Video monitor
DSR-1500/1500P (player)
Switch/menu item Setting
LOCAL/REMOTE switch LOCAL
Switch/menu item Setting
LOCAL/REMOTE switch REMOTE
(REMOTE indicator lights.)
DIGITAL OUTPUT menu item
(see page 67) SDTI
(SDTI indicator lights.)
REMOTE I/F menu item (see
page 67)
9PIN
(9P indicator lights.)
