Connections for an A/B Roll Editing System
Ch
apt
er 5
Con
nec
tions
and
S
e
ttin
gs
Control signal connections

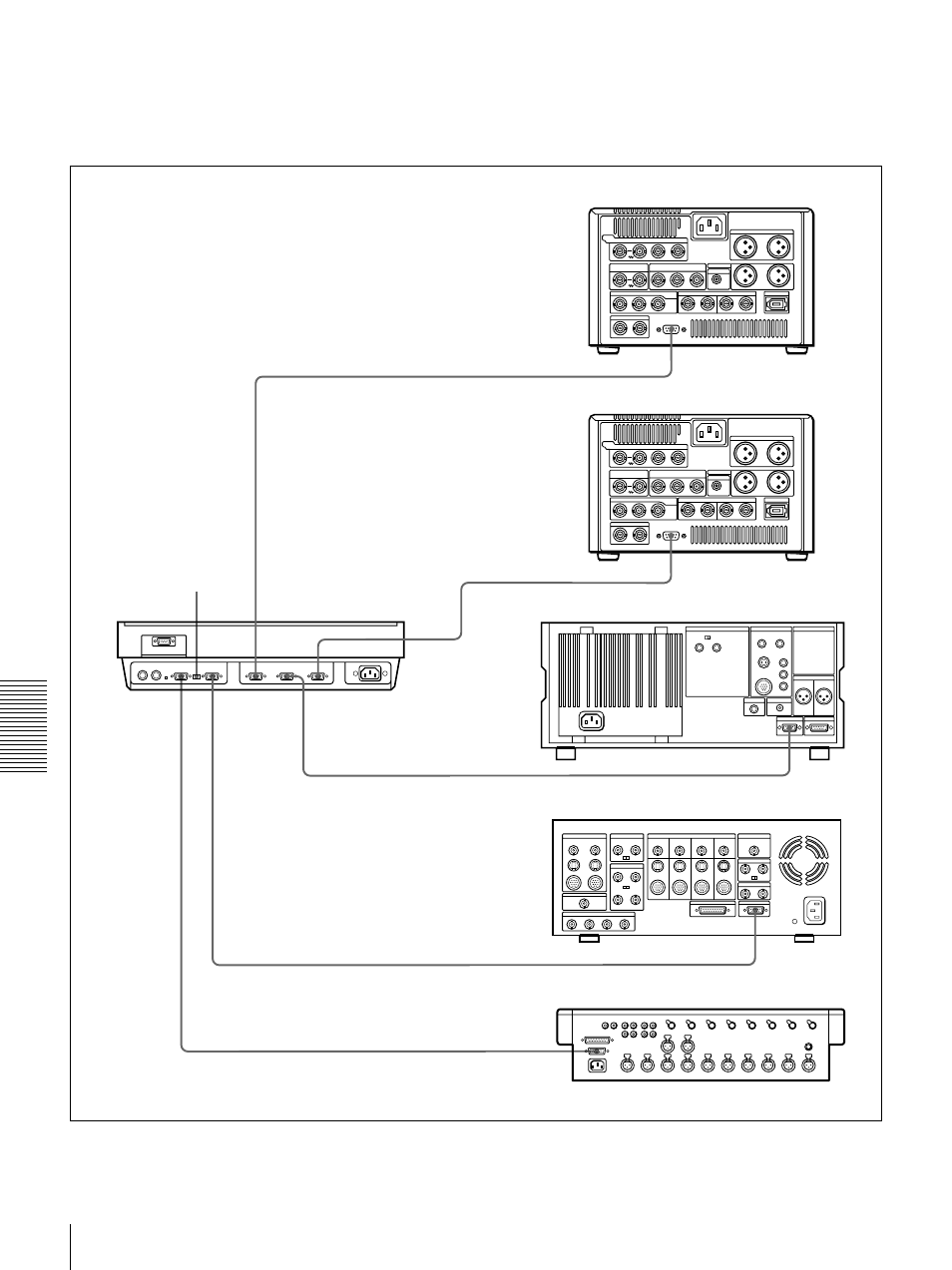

The following shows an example of control signal
connections to enable the editing control unit to control all
other A/B roll editing system devices.
SWITCHER PLAYER 2 MIXER
PLAYER 1
RECORDER
REMOTE
EDITOR
REMOTE
REMOTE
DSR-1500/1500P (recorder)
9-pin remote control cable a)
DSR-1500/1500P (player 1)
Mixer control mode
selection switch:
PARALLEL
9-pin remote control cable
a)
UVW-1600/1600P (player 2)
PVE-500 Editing
Control Unit
DFS-500/500P DME Switcher
9-pin remote control cable
a)
9-pin/15-pin mixer control cable (not supplied)
a) For the 9-pin remote control cable, use an optional
RCC-5G/10G/30G cable.
EDITOR (15-pin)
MXP-290 Audio Mixer
9-pin remote control cable
a)
