Assembly – Smooth Fitness 9.45ST User Manual
Page 20
20
9.45ST TREADMILL
ASSEMBLY

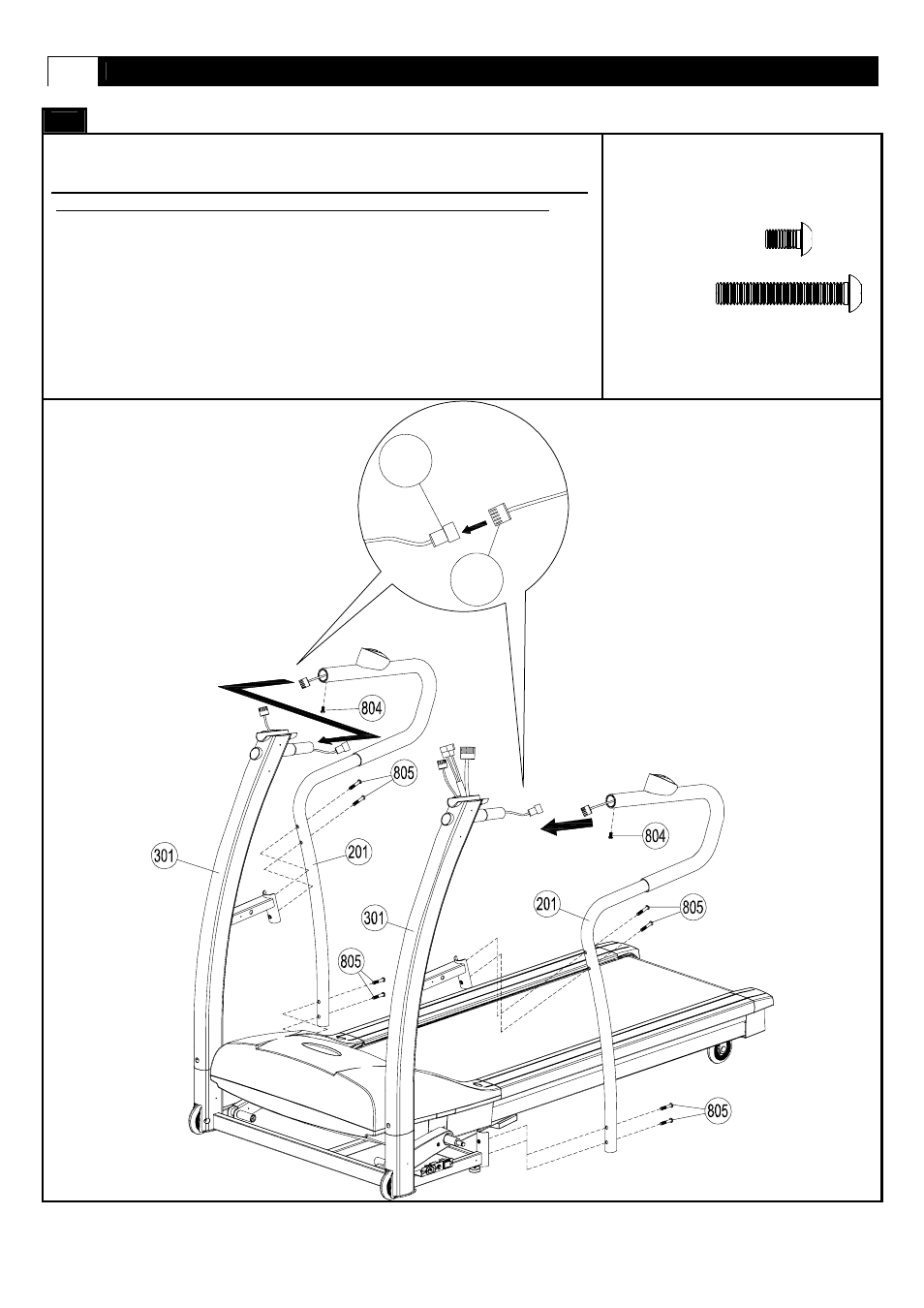

STEP 3: Assemble The Side Handlebars
NOTE: Side rails are interchangeable for use on both right and left sides.
Make sure all wires recessed into the frame. DO NOT trap or pinch.
(A) Connect the Left Motion Control lower wire to the middle wire (207 to 309 ). As
Shown in the diagram below.
(B) Insert the Left Handlebar (201) into the Upright Tube (301). Using one M8 x 15mm
bolts (804) to secure the upper portion. Use two M8 x 50mm Bolts (805) to secure
the lower portion to the base frame. Use two M8 x 50mm Bolts (805) to secure the
middle portion to the base frame.
(C) Repeat the above process for the Right side
804
X2
X8
805
207
309
