29
R
Section 6
Slot “A” Hole 1 Hole 2 Hole 3
Height (inches) 3” 3-1/2” 4”
Custom-Cut Baffle Adjustment
Mounting Slot Mounting Hardware Location
1
2
3
A
1 2
3
A

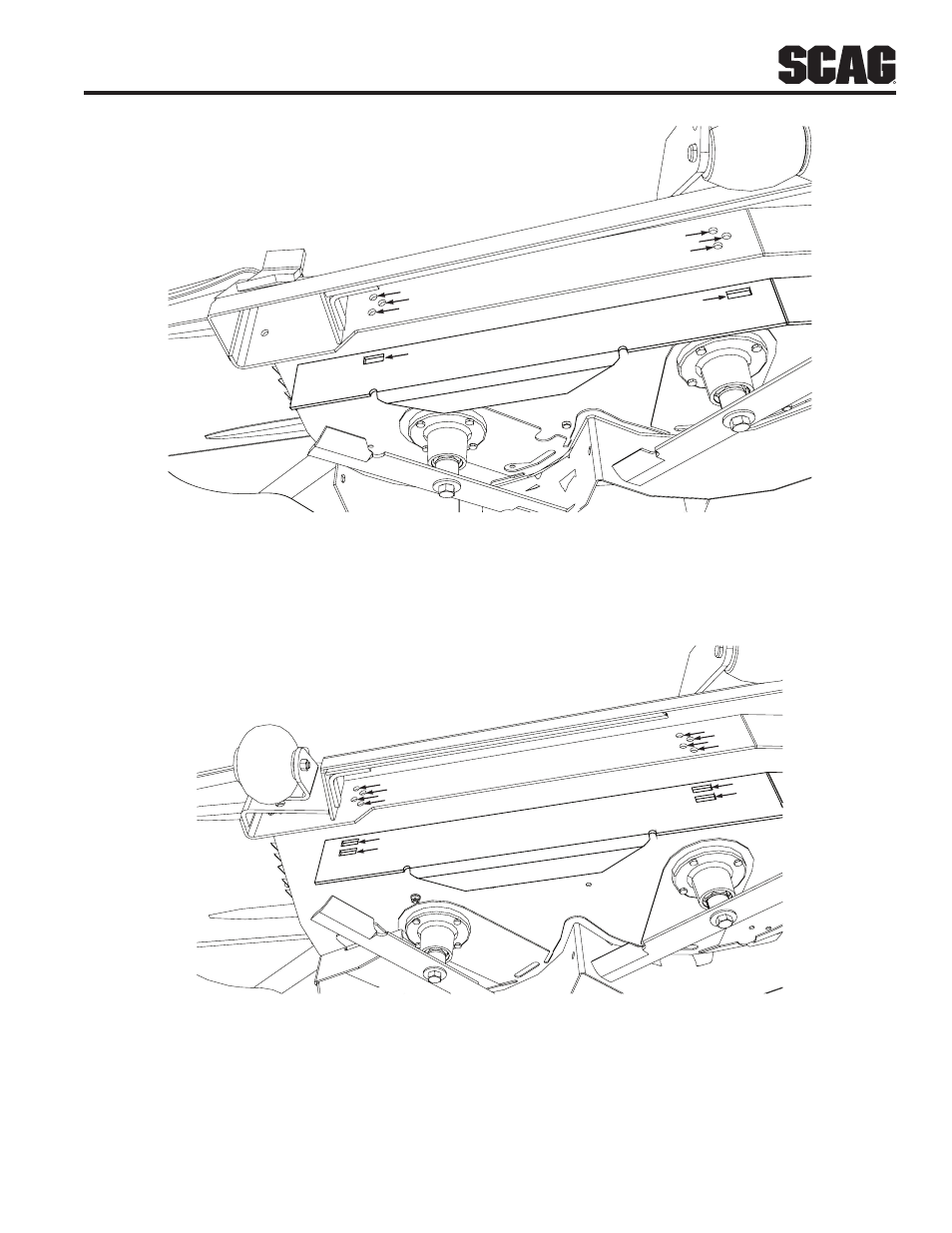

3-Position Custom-Cut Baffle Adjustment Figure 6-9.
1 2
34
A
B
1 2
3 4
A
B
Custom-Cut Baffle Adjustment
Mounting Slot Selected Mounting Hardware Location
Slot “A” Hole 1 Hole 2 Hole 3 Hole 4
Height (inches) 3-3/4” 4-1/4” 4-3/4” 5-1/4”
Slot “B” Hole 2 Hole 3 Hole 4
Height (inches) 3-1/2” 4” 4-1/2”
7-Position Custom-Cut Baffle Adjustment Figure 6-10.
