DESCRIPTION
1. AC MAINS This is to plug in the AC mains power cord.
The input AC voltage range is 120V, 60Hz supply.
2. DISH INPUT This port is to connect the coaxial cable from LNB of your dish.
The IF input is provided through this port and the input frequency
range is 950-2150 MHz. Also the voltage switching 13V and
18V is passed through this port.
3. RS 232 DATA PORT This is used to connect your receiver to a computer for reading
and loading data information. (only for service)
4. LOOP To enable the connection of an Analog receiver,
The receiver is provided with this ‘LOOP’ port.
5. S-VIDEO OUT This is used to connect STB to your TV by using S-VHS cable.
6. 0/12V This is used to connect to an external LNB switch.
7. AV OUT These RCA connectors are used to connect any external
video and audio.
8. RF OUT This is used to connect to your TV via RF cable.
(Preset to channel 3)
9. ANT. IN This is used to connect your local RF channels to
your TV through Loop.

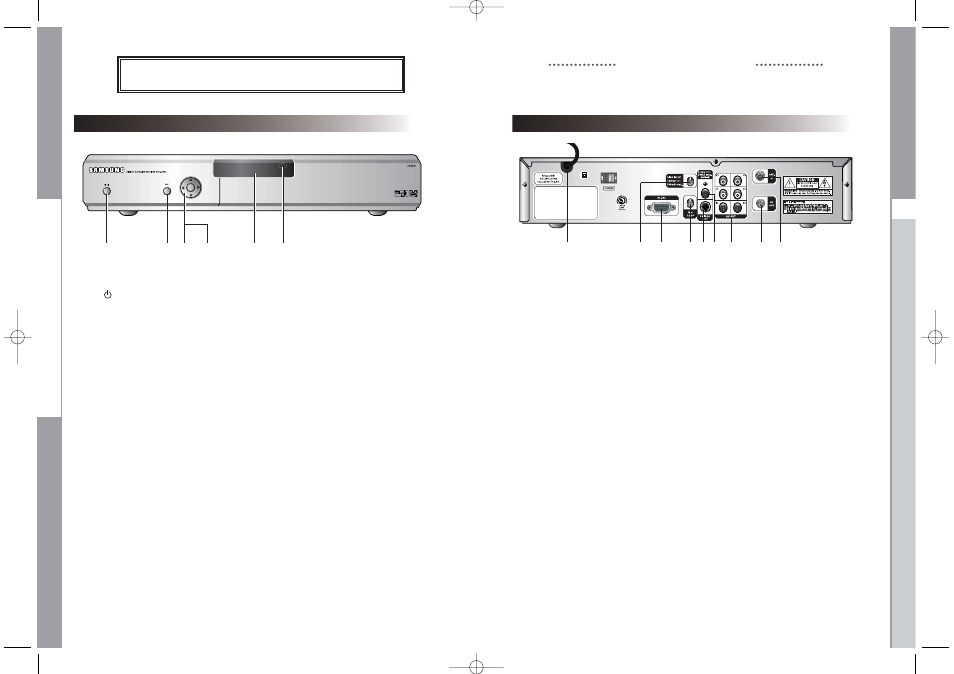

Rear Panel Front Panel
1. / I This key is for turning the receiver on and Standby.
2. OK This key is for entering and confirming any data to the receiver in the
menu system. This key is for selecting the item. Press while viewing
TV and a list of channels is displayed.
3. … , † These keys are for changing the channels during watching TV and for
moving the highlight bar for selecting options on the menu.
4. œ , √ These keys are for increasing and decreasing the volume level manually
during watching TV and for moving the highlight bar for selecting options
on the menu.
5. 7 Segment Display This LED display will show the current channel number.
While the receiver is in Standby mode, the display will show the current
time.
6. Infrared Sensor This is to receive the IR commands from the Remote Control Unit.
1 7 8 2 5 4 3 2 3 6 4 5 1
