Applications
Here are four suggested applications for the PL 1602; bear in mind that your particular circumstance may dictate
changes in these suggested signal connections and routings.

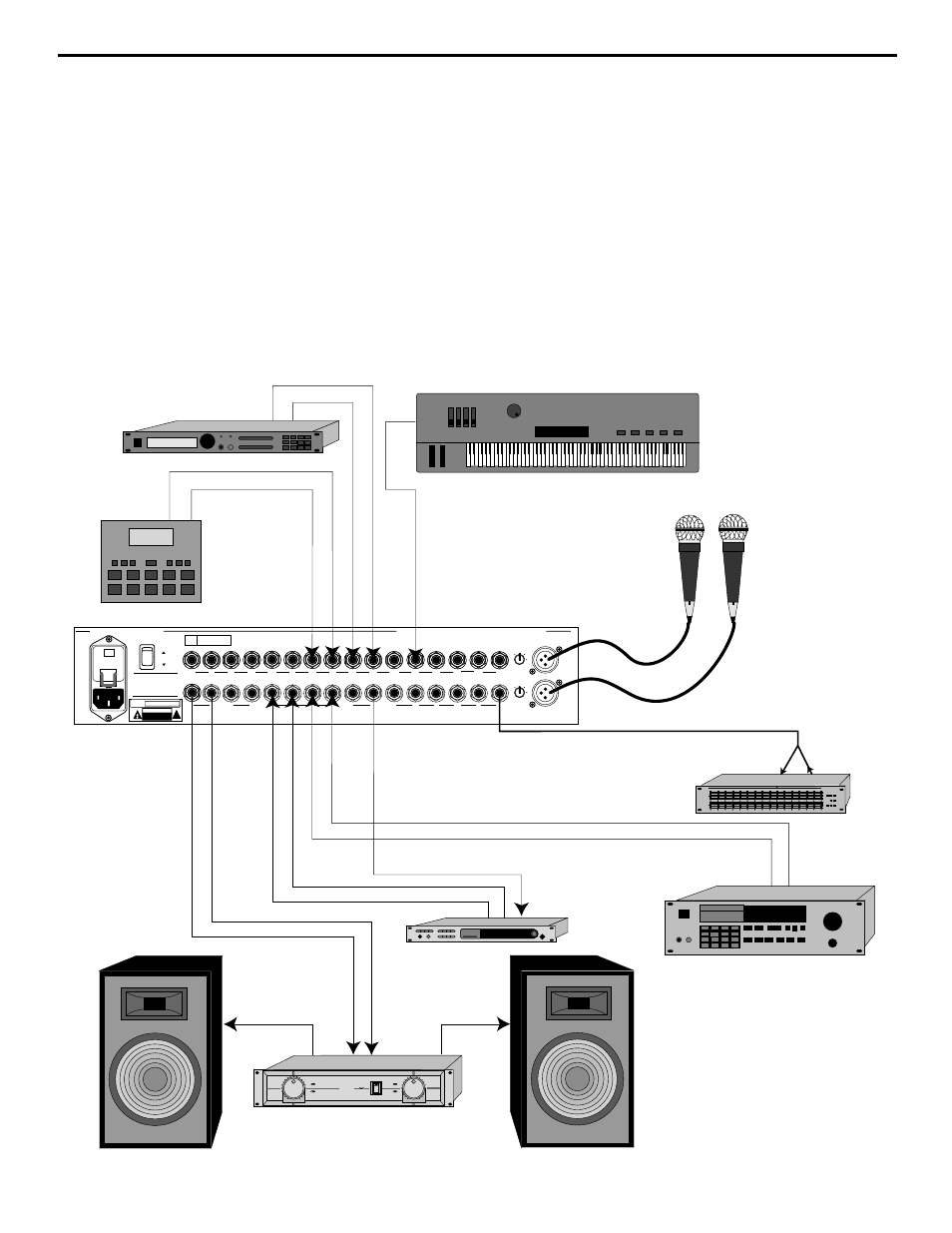

Application 1 - Using The PL 1602 As A Main Live Mixer
The main connections here involve routing the PL 1602’s Main output to the input of a power amplifier, and, from there,
to PA speakers. Microphones are connected to channels 1 and 3, while line level signals are connected to other channel
inputs (stereo signals are routed to “matched” consecutive odd- and even-numbered inputs). A tape deck is connected
to stereo Aux return 1, while a signal processor is connected to Aux return 2, with signal being sent to that signal proces-
sor from Aux send 1. Another signal processor is connected to channel insert 1 so as to affect the signal coming from
the mic connected to channel 1.
