GETTING STARTED-CONNECTIONS
3
Analog Signal Connections - VIDEO1 or VIDEO2
(optional).
Connect an analog device, such as, an Analog
Cable Box, Satellite Receiver or VCR
Composite connectors are included on your HDTV
to provide continued compatibility with older analog
devices such as a VCR. The S-Video connector will
provide the best analog resolution. If you have an
S-Video connector on your old analog equipment, you
should use it instead of the standard video connector.
(Cables are not supplied)

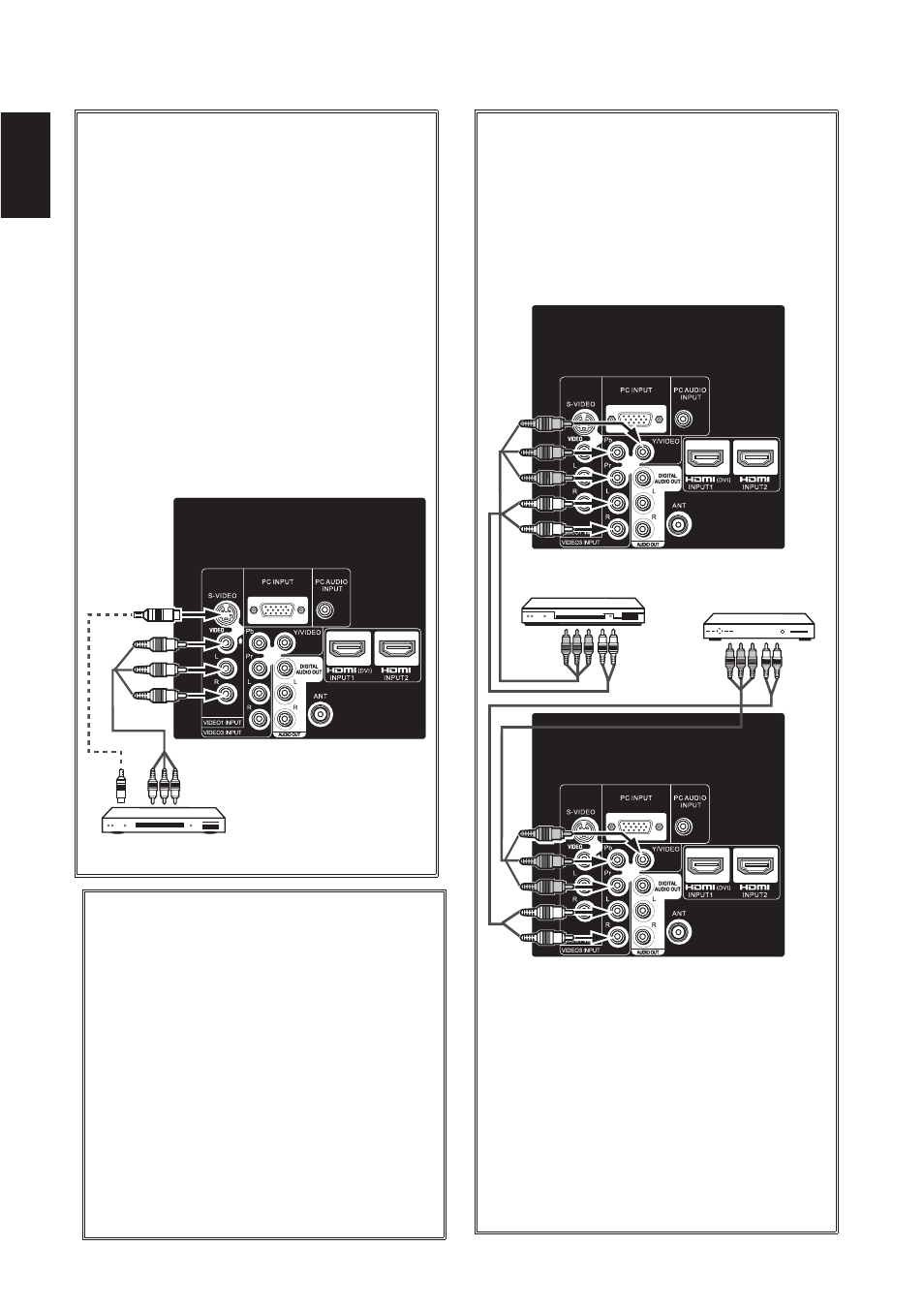

1 Connect an AV cable to the VIDEO1 or VIDEO2
jack on the HDTV and to your analog AV
equipment, as shown. Match the connector colors
to jack colors.
2 Press the INPUT button to step through the
signal inputs to select Video1 or Video2.
ANALOG DEVICE
4
Component Signal Connections - VIDEO3 (YPbPr)
Connect Digital devices, such as, a HD Cable
Box, HD Satellite Receiver, DVD Player, and Game
System
The Component jacks on this HDTV will accept
HDTV, EDTV, and SDTV video signals, making
Component a great choice when connecting your
compatible external devices.
1 Connect a COMPONENT cable to a set of
Green, Blue, and Red video jacks VIDEO3
(YPbPr) on the HDTV and to your digital device,
as shown. (Cable is not supplied)
2 Connect an AUDIO cable to the matching set of
White and Red audio jacks, as shown. (Cable is
not supplied)
3 Press the INPUT button to step through the
signal inputs to select VIDEO3 (YPbPr).
NOTES:
‡ The Green video jack and White ,Red audio jacks
can be used as Composite connectors like VIDEO1
and VIDEO2 (Shared with Component-Y).
‡ You may follow the VIDEO3 OPERATION (See
PAGE 19) to choice suitable function (Video or
YPbPr) for external devices.
DVD PLAYER SATELLITE
RECEIVER
