9
PREPARATION

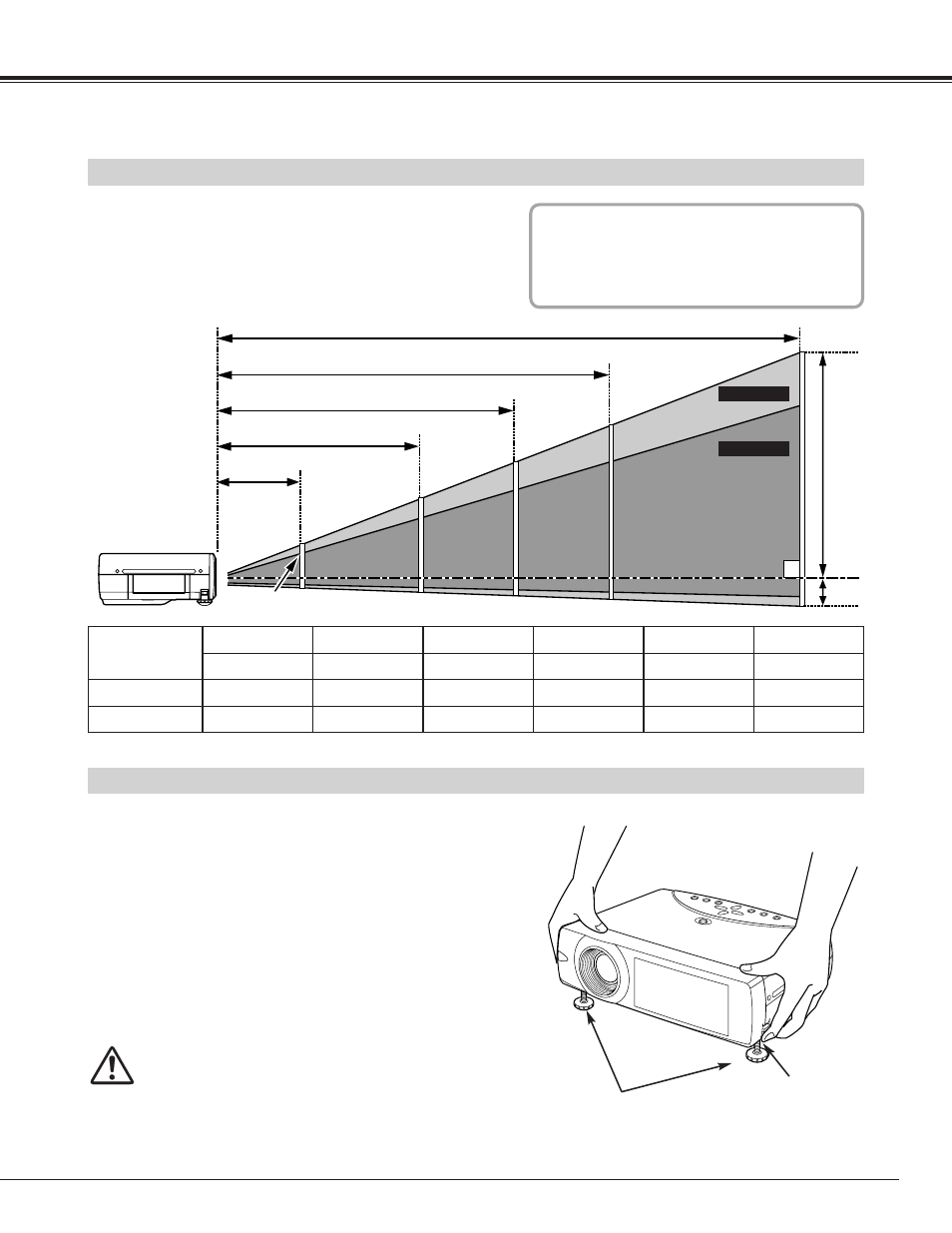

POSITIONING PROJECTOR
ADJUSTABLE FEET
Picture tilt and projection angle can be adjusted by rotating
ADJUSTABLE FEET. Projection angle can be adjusted to 15.6
degrees.
Lift the front of a projector and pull FEET LOCK LATCHES
on the both sides of a projector. 1
ADJUSTABLE FEET
FEET LOCK
LATCHES
Release FEET LOCK LATCHES to lock ADJUSTABLE FEET
and rotate ADJUSTABLE FEET to fine tune position and tilt. 2
To retract ADJUSTABLE FEET, lift the front of a projector
and pull and undo FEET LOCK LATCHES.
Keystone distortion of a projected image can be adjusted by
Menu Operation. (Refer to P20 and 35.) 3
CAUTION
Avoid positioning a projector with the angle of more than 20
degrees. Projection Lamp may malfunction.
● This projector is designed to project on a flat projection surface.
● The projector can be focused from 5.3’(1.6m) ~ 40.0’(12.2m).
● Refer to the figure below to adjust a screen size.
40”
100”
160”
200”
300”
230”
153”
115”
77”
31”
H1
H2
40.0’ (12.2m)
26.6’ (8.1m)
21.3’ (6.5m)
13.1’ (4.0m)
5.3’ (1.6m)
ROOM LIGHT
The brightness in a room has a great influence on
picture quality. It is recommended to limit
ambient lighting in order to provide the best
image.
Max. Zoom
Min. Zoom
Screen Size
(W x H) mm
Zoom (min)
40”
Zoom (max)
813 x 610
6.9' (2.1m)
5.2' (1.6m)
100”
2032 x 1524
17.4' (5.3m)
13.1' (4.0m)
160”
3251 x 2438
27.9' (8.5m)
21.3' (6.5m)
200”
4064 x 3048
34.8' (10.6m)
26.6' (8.1m)
300”
6096 x 4572
–––––
40.0' (12.2m)
31"
630 x 472
5.3' (1.6m)
–––––
H1 : H2 = 9 : 1
