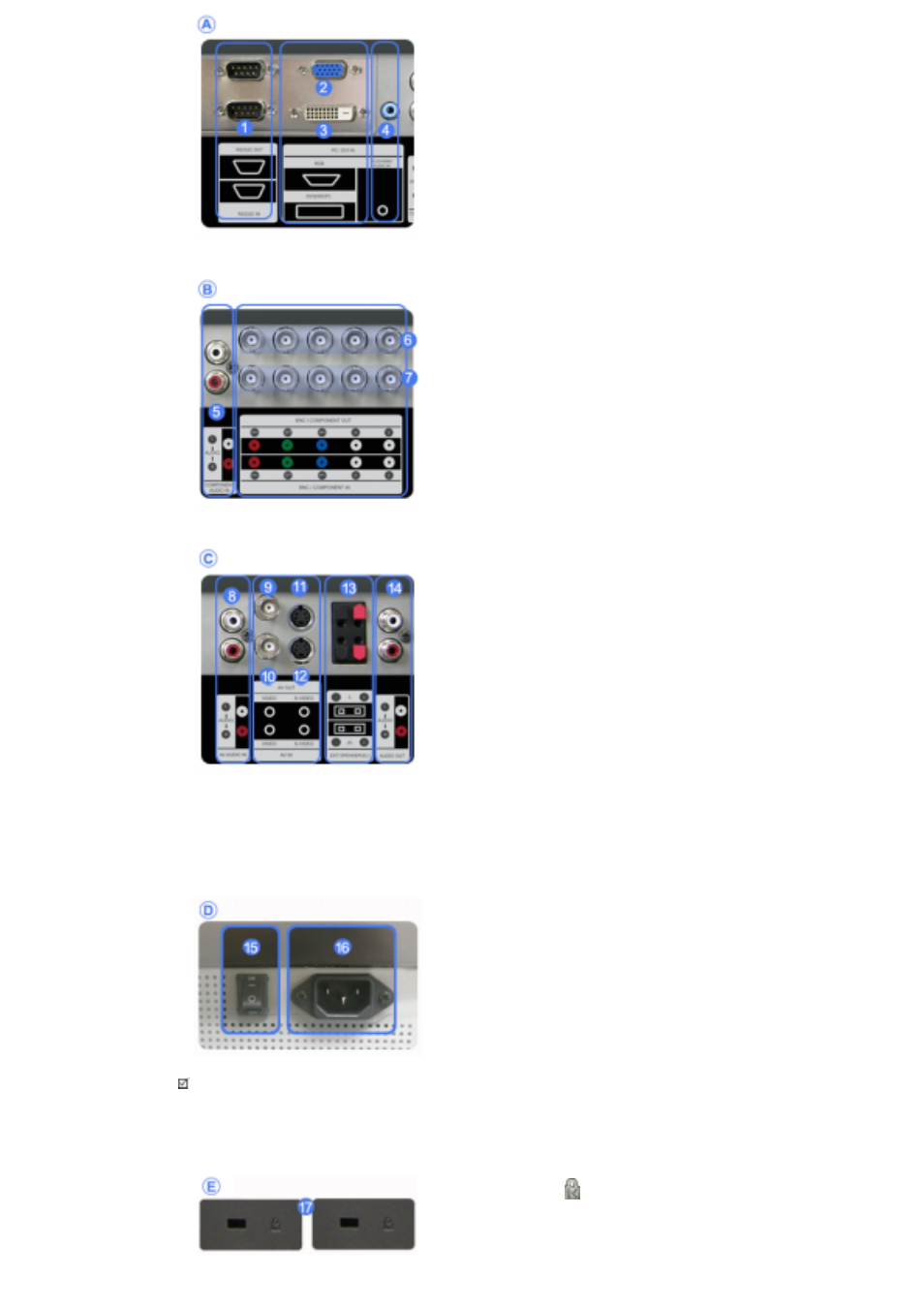

MDC(Multiple Display Control) Program Port
2) DVI / PC IN [RGB] (PC Video Connection
Terminal)
Using a D-Sub Cable (15 pin D-Sub) - PC mode
(Analog PC)
3) DVI / PC IN [DVI(HDCP)] (PC Video
Connection Terminal)
Using a DVI Cable (DVI-D to DVI-D) - DVI mode
(Digital PC)
4) DVI / PC IN [PC/DVI/BNC AUDIO IN]
(PC/DVI/BNC Audio Connection Terminal
(Input))
5) COMPONENT AUDIO IN [L-AUDIO-R]
(Component Audio Connection Terminal
(Input))
6) BNC/COMPONENT OUT [R/P R , G/Y, B/P B ,
H, V] (BNC/Component Connection
Terminal (Output))
BNC (Analog PC) Connection: connecting the R,
G, B, H, V ports
Component Connection: connecting the P
R , Y,
P B ports
7) BNC/COMPONENT IN [R/P R , G/Y, B/P B , H,
V] (BNC/Component Connection Terminal
(Input))
8) AV AUDIO IN [L-AUDIO-R] (LCD Display
Audio Connection Terminal (Input))
9) AV OUT [VIDEO] (VIDEO Connection
Terminal): AV mode (Output)
10) AV IN [VIDEO] (VIDEO Connection
Terminal) (Input)
11) AV OUT [S-VIDEO] (S-VIDEO Connection
Terminal): S-VIDEO mode (Output)
12) AV IN [S-VIDEO] (S-VIDEO Connection
Terminal) (Input)
13) EXT SPEAKER(8 Ω)[- - L - +, - - R - +] (EXT
Speaker Connection Terminal)
14) AUDIO OUT [L-AUDIO-R] (LCD Display
Audio Connection Terminal (Output))
AUDIO OUT is the terminal for sound output of
PC, DVI or BNC.
15) POWER S/W ON [ | ] / OFF [O]
Switches the LCD Display On/Off.
16) POWER IN
The power cord plugs into the LCD Display and
the wall plug.
Note
• The number of LCD Displays that can be connected to loopout may differ depending on the cables, signal
source etc. With cables where there is no degradation or signal source, up to ten LCD Displays can be
connected.
17) Kensington Lock
The Kensington lock is a device used to
physically fix the system to something when
using it in a public place. (The locking device has
to be purchased separately.)
