Hydraulics/Electrical 19

PN 30533

PN 30532

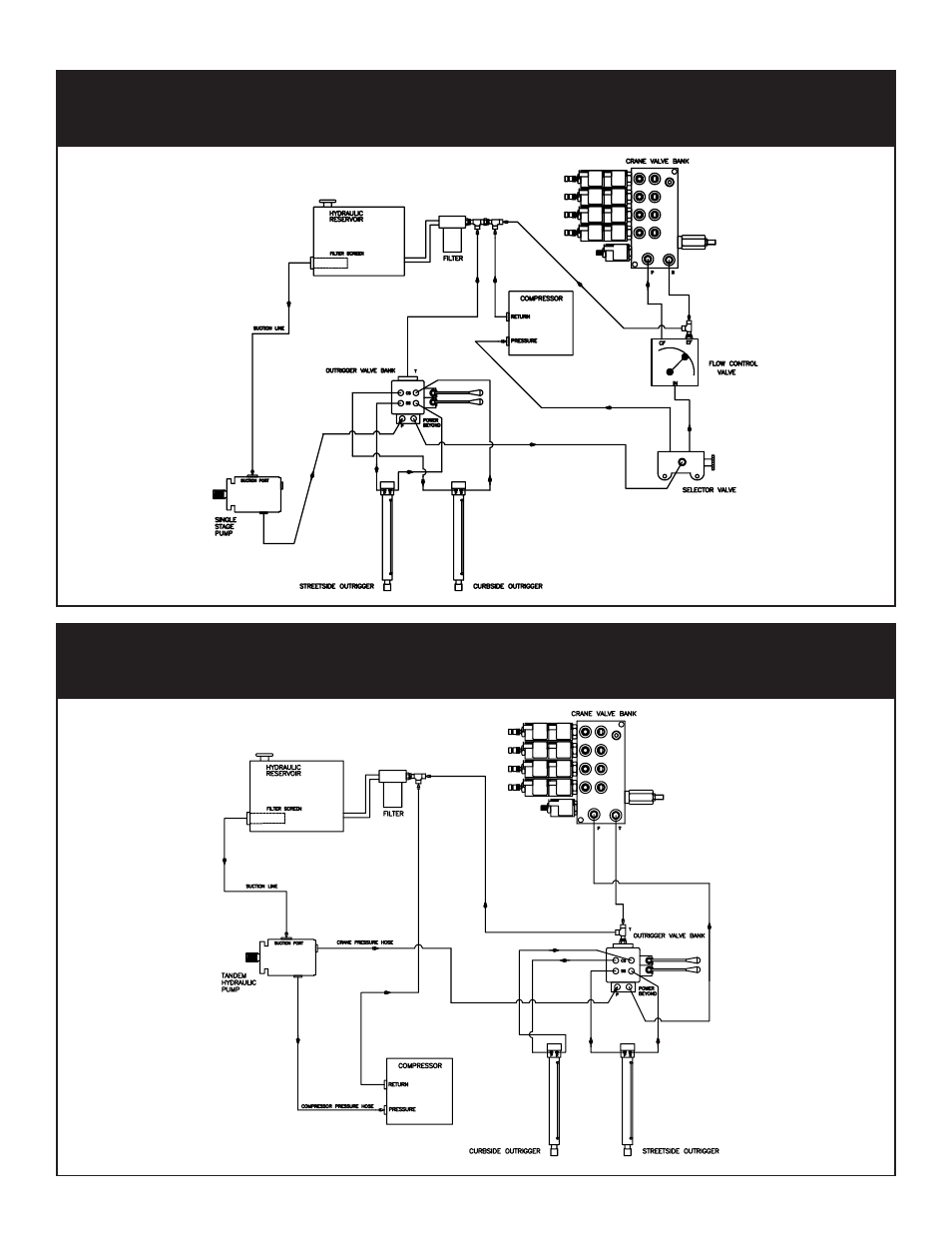

Typical Hydraulic Circuit for Single Stage Pump with

Multiple Components

Typical Hydraulic Circuit for Tandum (Two Part) Pump with

Multiple Components
