13 SIR-ALP10T Operation and Installation Guide 13 SIR-ALP10T Installation Guide

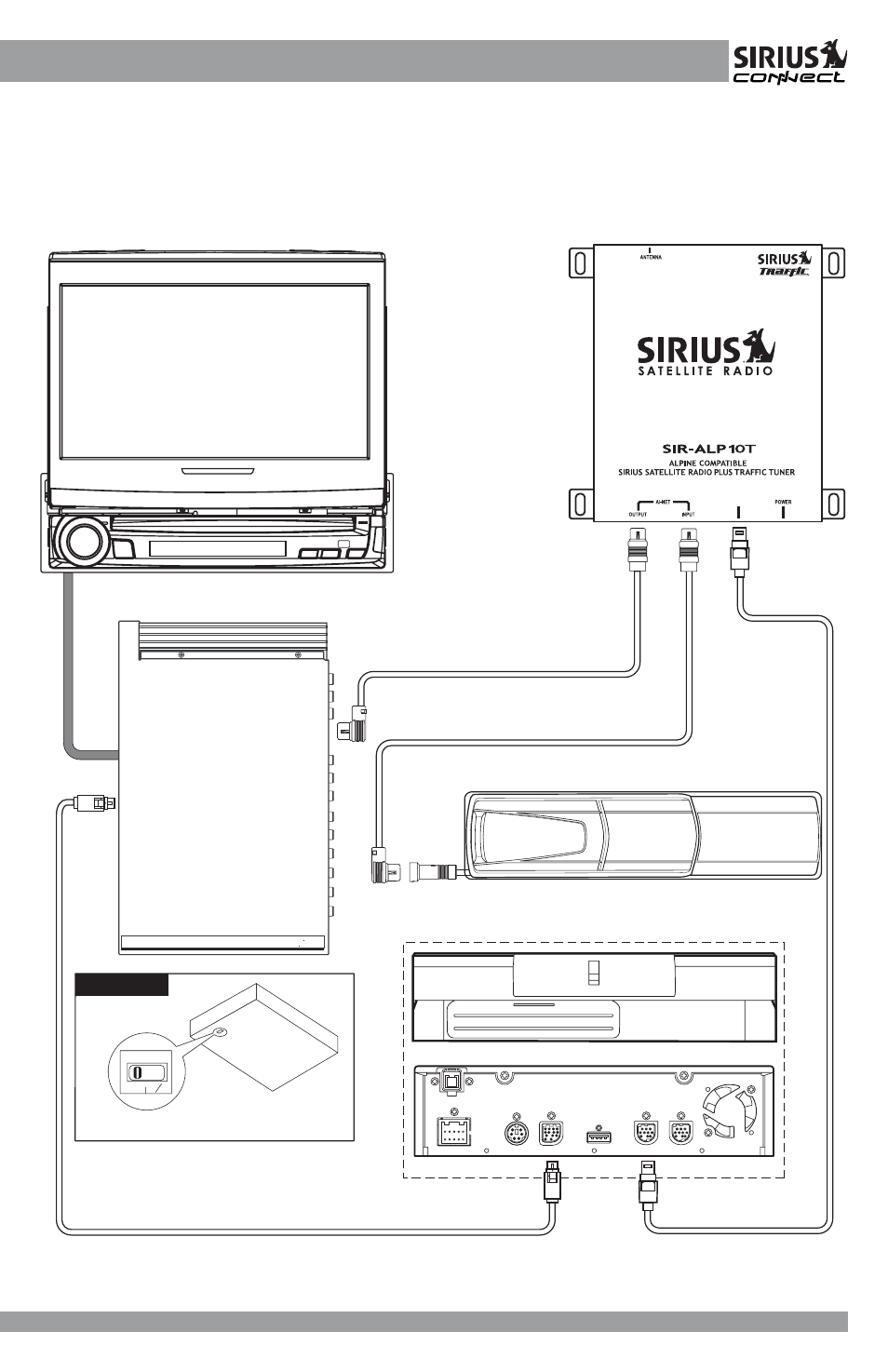

System 4: Alpine Multimedia Headunit, Alpine Navigation System,
CD-Changer or IPOD Interface, and SIR-ALP10T
Note: For this system configuration, DO NOT connect the RED (ACC/IGN) line on the SIR-ALP10T.
(REAR VIEW)
(FRONT VIEW)
Bottom of
Tuner Module
Alpine CD Changer (CHA-S634)/Alpine iPOD interface (KCA-420i)
DATA
Alpine Navigation System (NVE-N872A)
Alpine Multimedia Station Headunit
EX-2 DISPLAY
Ai-NET
NORM EQ DIV
Hideway Headunit Tuner Module
Ai-NET Switch Set to NORM ~ Defaut Setting
Special Note
(IVA-D300, IVA-D310, IVA-D901)
