ASSEMBLY

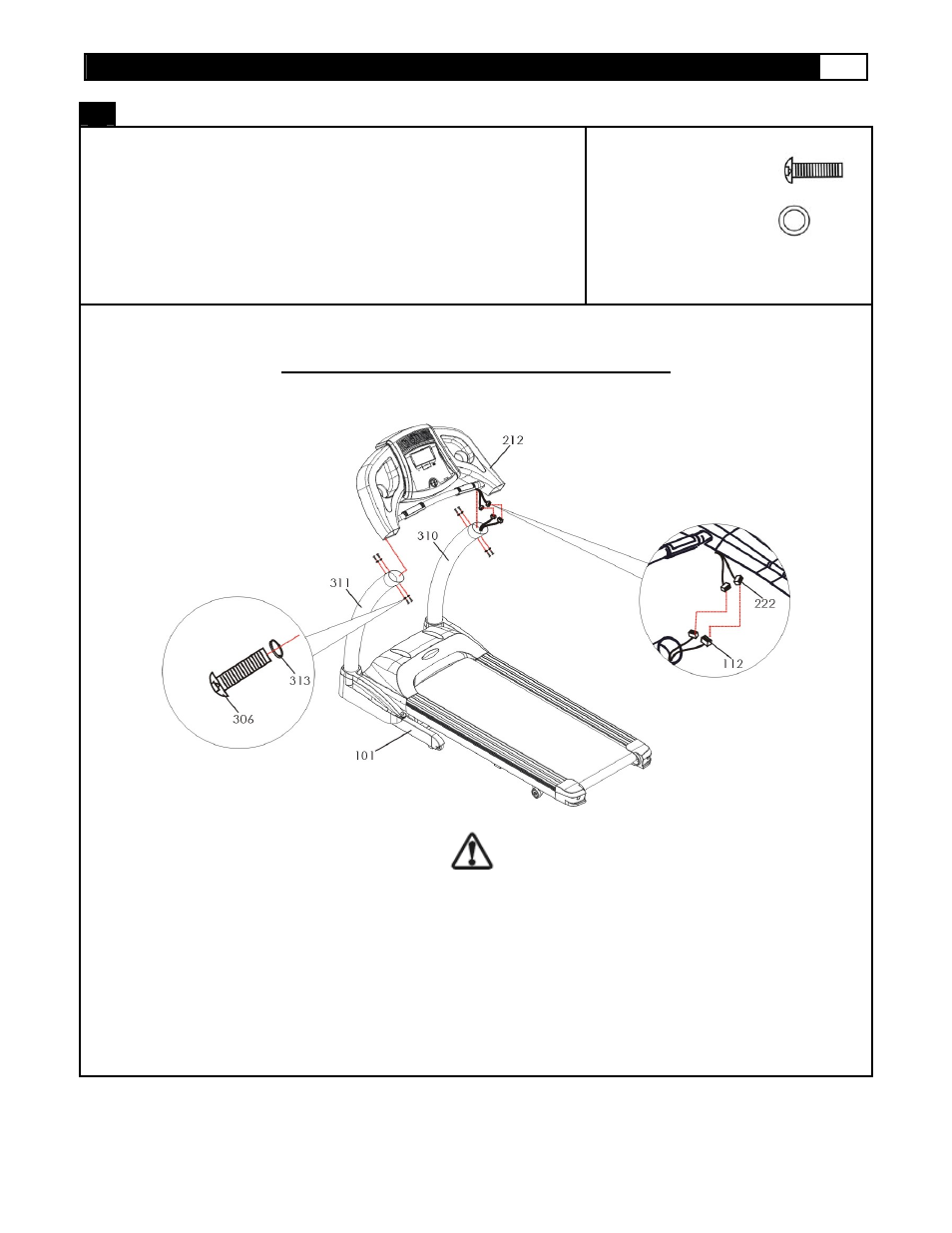

STEP 2: Attach Console to left and right console support tubes
(1) Connect the two Wires (one 7
Pin and one 5 pin) - Upper
(222) (from
console) to the
same wires – Lower
(
144
) (from right console support tube)
(2) Place the console over the left and right console support tubes and
secure with eight M8 x 15mm Allen Head Bolts (306) and eight M8 Flat
Washers (313) (4 on each side). HAND TIGHTEN ONLY.
306 X8
313 X8
Caution Pinch point! Do not pinch wires between frame.
Bolts should be hand tight only
