KS-342

Features and panel items

For the most part, the explanations given for the individual

parts of the KS-342 will allow you to operate the mixer effec-
tively. You should therefore read this part of the manual care-
fully in order to understand the many features and operations
possible with the unit.

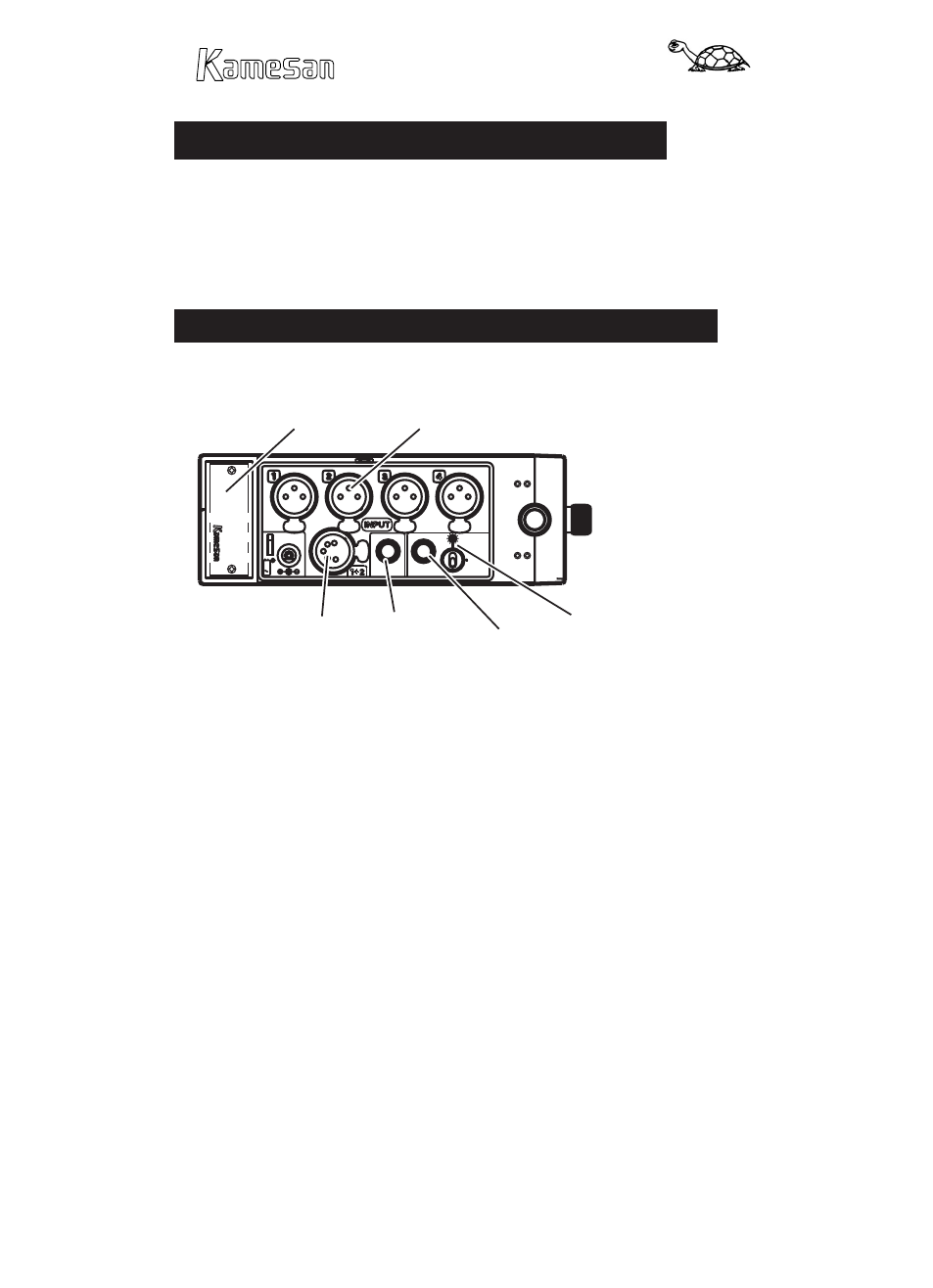

Left side (viewed from front)

This section is chiefly the inputs to the mixer:

��

��

�

� �

�

��

�

��

�

��

��

��
��

��

��
��
��

INPUTS 1 through 4

Connect the microphones or line level

sources to these XLR jacks.

INPUTS 1+2

This XLR-5 jack is used to connect a stereo mi-

crophone to the 1 and 2 inputs. The wiring is: 1= ground, 2=L

+, 3=L –, 4=R +, 5=R –.

Battery locking lever Pull

down to release the battery pack

Coaxial power supply

Connect a suitable power supply (tip

negative, between 10 V and 15 V, approximately 0.5 A).

DC 12 V OUT

This connector is used to supply external power

to other equipment.

AUX IN

This connector is used to connect an auxiliary input,

such as a camera’s audio signal, etc.

Aux level control and routing switch

The level control is

used to set the level of the input aux signal when it is routed to

the output busses.
