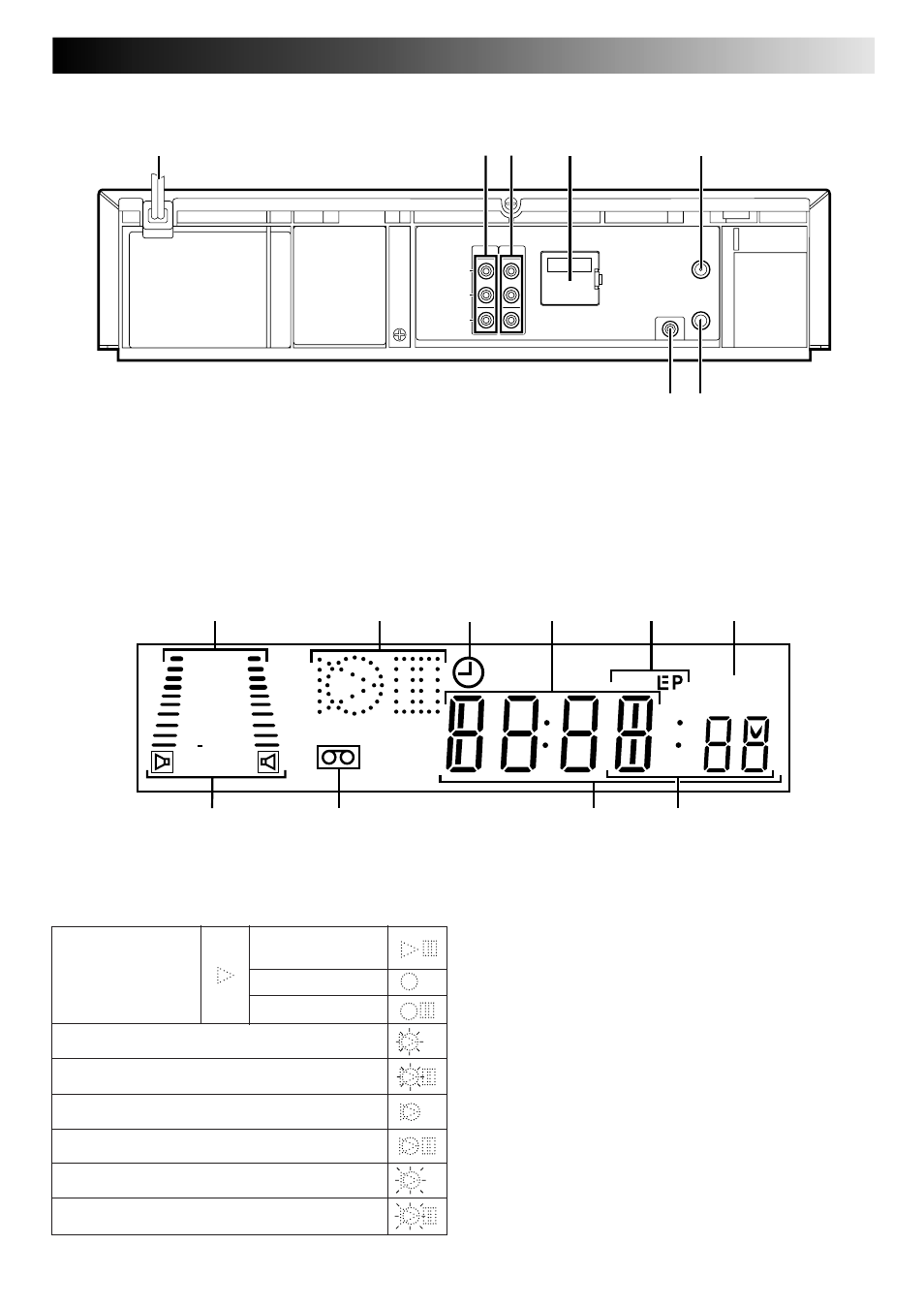

DISPLAY PANEL
1 B.E.S.T. Picture System Display
੬
pg. 22
Audio Level Indicator
2 Symbolic Mode Indicators
3 "Timer" Indicator
੬
pg. 27
4 Channel Display
Clock Display
5 Tape Speed Indicators
੬
pg. 18
6 Instant REVIEW Indicator
੬
pg. 14
7 Audio Mode Indicator
੬
pg. 15
8 "Cassette Loaded" Mark
9 Counter Display
0 Mode Display (L-1 or F-1)
8 9 0 7
1 4 6 5 2 3
REVIEW SP
+8
4
0
6
15dB
NORM
STILL:
SLOW:
RECORD:
RECORD PAUSE:
PLAY:
FF/REW VARIABLE
SHUTTLE SEARCH:
5 ANT. IN Connector
੬ pg. 3
6 Remote PAUSE Connector
੬
pg. 35
7 RF OUT Connector ੬ pg. 3
1 Mains Power Cord
੬ pg. 3
2 AUDIO/VIDEO IN Connectors
੬ pg. 34
3 AUDIO/VIDEO OUT Connectors ੬ pg. 3, 34
4 Lithium Battery Compartment
੬ pg. 5
REAR VIEW
VIDEO
AUDIO
L
(MONO)
R
IN OUT ANT. IN
RF OUT
PAUSE
5 4 2
7 6
1 3
AUDIO DUBBING:
AUDIO DUBBING PAUSE:
INSERT:
INSERT PAUSE:
AUDIO DUBBING INSERT:
AUDIO DUBBING INSERT PAUSE:
