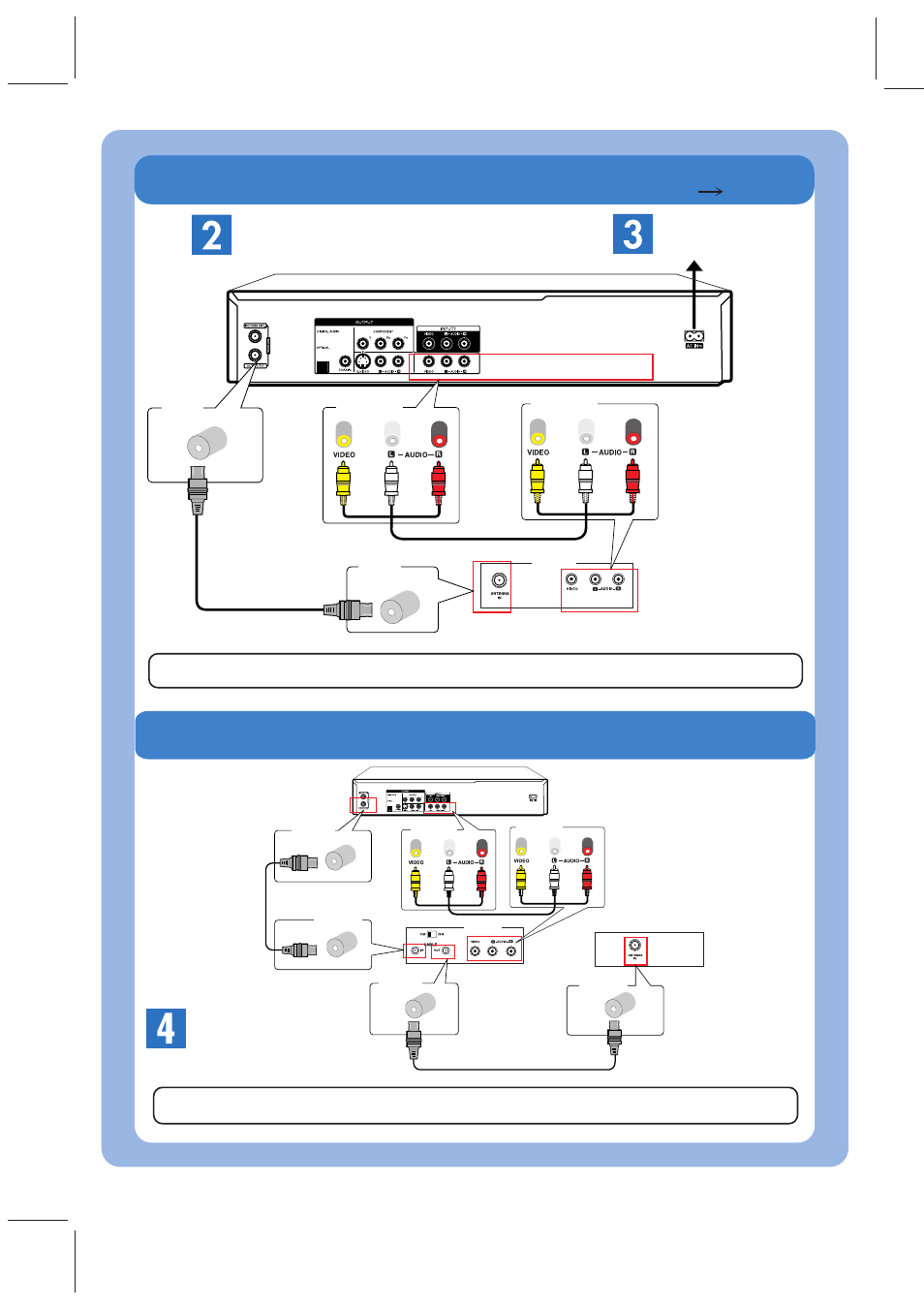

Basic-3 : Connecting To TV INSTRUCTIONS
pg. 11
AC Outlet Connect with your TV
After connections,
Power On.
Basic-4 : If your TV has Antenna In Jack only.
DR-MV150B
DR-MV150B
To TV
(AV INPUT)
ANTENNA
OUT
ANTENNA
IN
OUTPUT
(Video/Audio)
AV INPUT
Rear of TV
ANTENNA
OUT
ANTENNA
IN AV INPUT
RF Modulator
(Not Supplied) ANTENNA
OUT
ANTENNA
IN
OUTPUT
(Video/Audio)
AV INPUT
(Video/Audio)
The TV must be set to the same channel as the output of the RF Modulator.
The TV must be set to EXT-Video, Aux, Video 1, or etc to watch DVD, VCR or Tuner.
You must make this connection.
Necessary if you want
to record and watch
different programs.
- 2 -
