12
WARNING
Saw body is heavy! Use caution when lifting
and stabilize until firmly attached to the
stand! Failure to comply may cause
serious injury!
4. Line up holes in saw body with holes in the top
of the stand. Fasten saw body to the stand with
four M8 x 40 hex cap screws, eight M8 washers,
four M8 lock washers, and four M8 hex nuts (as
shown in item A, page 10).

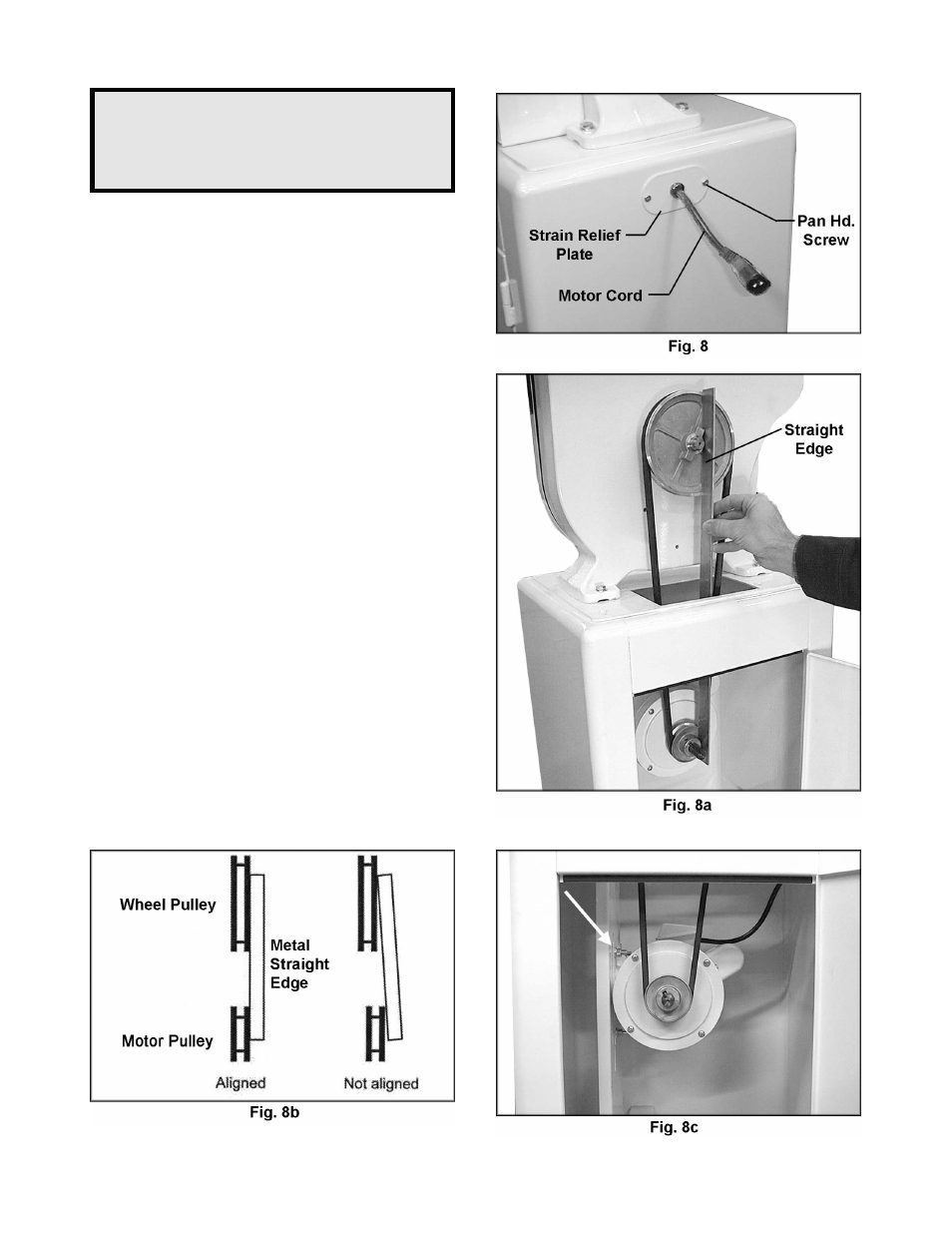

5. Push motor cord and strain relief plate through
the opening in the side of the stand (Fig. 8).
Fasten the strain relief plate to the stand with
two M5 x 12 pan head machine screws (shown
in item B, page 10).
6. Check the alignment of the pulleys by placing a
straight edge against the flat sides of the motor
and wheel pulleys (Fig. 8a). If the pulleys lie in a
straight plane (Fig. 8b) they are aligned. If they
do not lie in a straight plane, loosen the set
screw on one of the pulleys and shift the pulley
in or out until both pulleys lie in a straight plane.
Tighten set screw.
7. Open the lower door, and place the v-belt
around the motor pulley and the wheel pulley
(see Fig. 8a).
8. Loosen the nuts on the four motor mounting
bolts (Fig. 8c) and tension the v-belt by pushing
down on the motor. Tighten the four motor
mounting nuts.
