52
SUBSIDIARY INFORMATION (cont.)

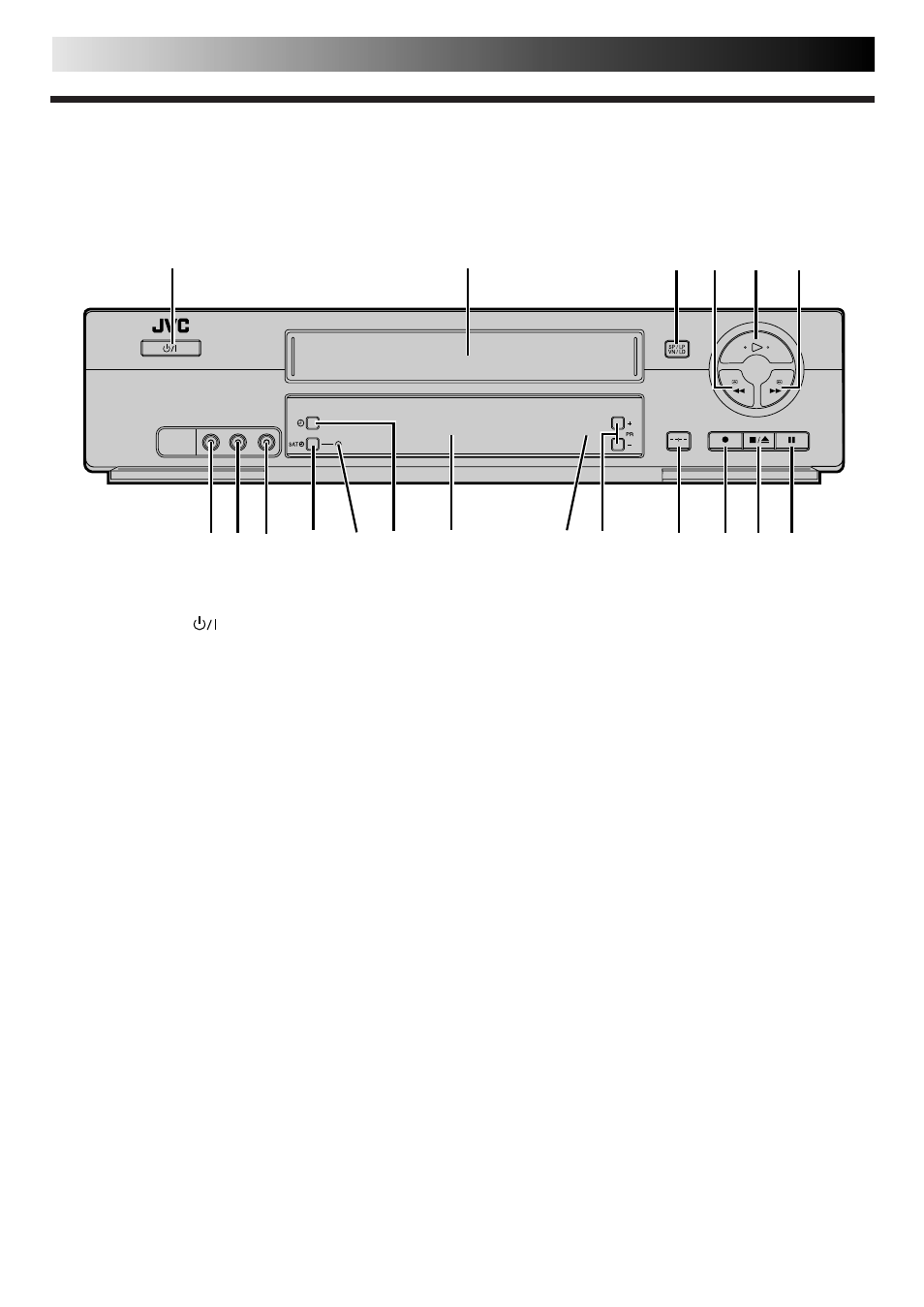

FRONT VIEW
VIDEO L –AUDIO– R
1 2 3
% $ @
4 5 6
( & * ^ 0 ! # 8 7 9
1 STANDBY/ON Button turns recorder on/off
(loading a cassette also turns power on).
2 Cassette Loading Slot is where cassette is
inserted; door closes, "cassette loaded" indicator
lights up on front display panel.
3 SP/LP Button selects tape speed.
੬
pg. 14
4 Rewind [REW] Button rewinds tape ; initiates
reverse high-speed search.
੬
pg. 12, 13
5 PLAY Button plays back tape
੬
pg. 12; cancels
Pause, Still, Slow, Search modes.
੬
pg. 13
6 Fast Forward [FF] Button fast-forwards tape;
initiates forward high-speed search.
੬
pg. 12, 13
7 VIDEO Input Connector (HR-J670/672EK only)
enables easy connection of video output from
another recorder or camcorder for editing.
੬␣ pg. 30
8 AUDIO Input Connector [L] (HR-J670/672EK
only) enables easy connection of audio output
(mono) from another recorder, camcorder or
other source for editing.
੬
pg. 30
9 AUDIO Input Connector [R] (HR-J670/672EK
only) enables easy connection of audio output
(Hi-Fi) from another recorder, camcorder or
other source for editing.
੬
pg. 30
Index
0 SAT‰ Button enables/disables the Auto Satellite
Prog Rec mode.
੬
pg. 27
! SAT‰ Indicator lights up during Auto Satellite
Prog Rec mode.
੬
pg. 27
@ Timer ‰ Button engages timer-standby mode.
੬
pg. 17, 19
# Display Panel provides clear view of various
displays and indicators.
੬
pg. 53
$ Infrared Beam Receiving Window is where
remote control should be aimed when in use.
% PR +/– Buttons select a preset position.
੬
pg. 14
^ – –:– – (Display) Button switches display
between clock time, tape remaining time,
counter readings and preset position*.
੬
pg. 15
* Preset position is not displayed during playback.
& RECORD Button starts regular recording (press
once), Instant Timer Recording (press twice);
sets duration of ITR.
੬ pg. 14, 15
* STOP/EJECT Button stops tape; ejects tape
during Stop mode.
੬
pg. 12
( PAUSE Button stops tape temporarily during
recording
੬ pg. 14; stops tape temporarily
during playback; plays back frame by frame
with each additional press.
੬ pg. 13
