32
EN
ENTREE/DECODEUR
IN/DECODER AV2 ENTREE/SORTIE
IN/OUT
ENTREE
ANT. IN
SORTIE
RF OUT
ANTENNE AV1
DECODER VCR TV
EXT.2 EXT.1

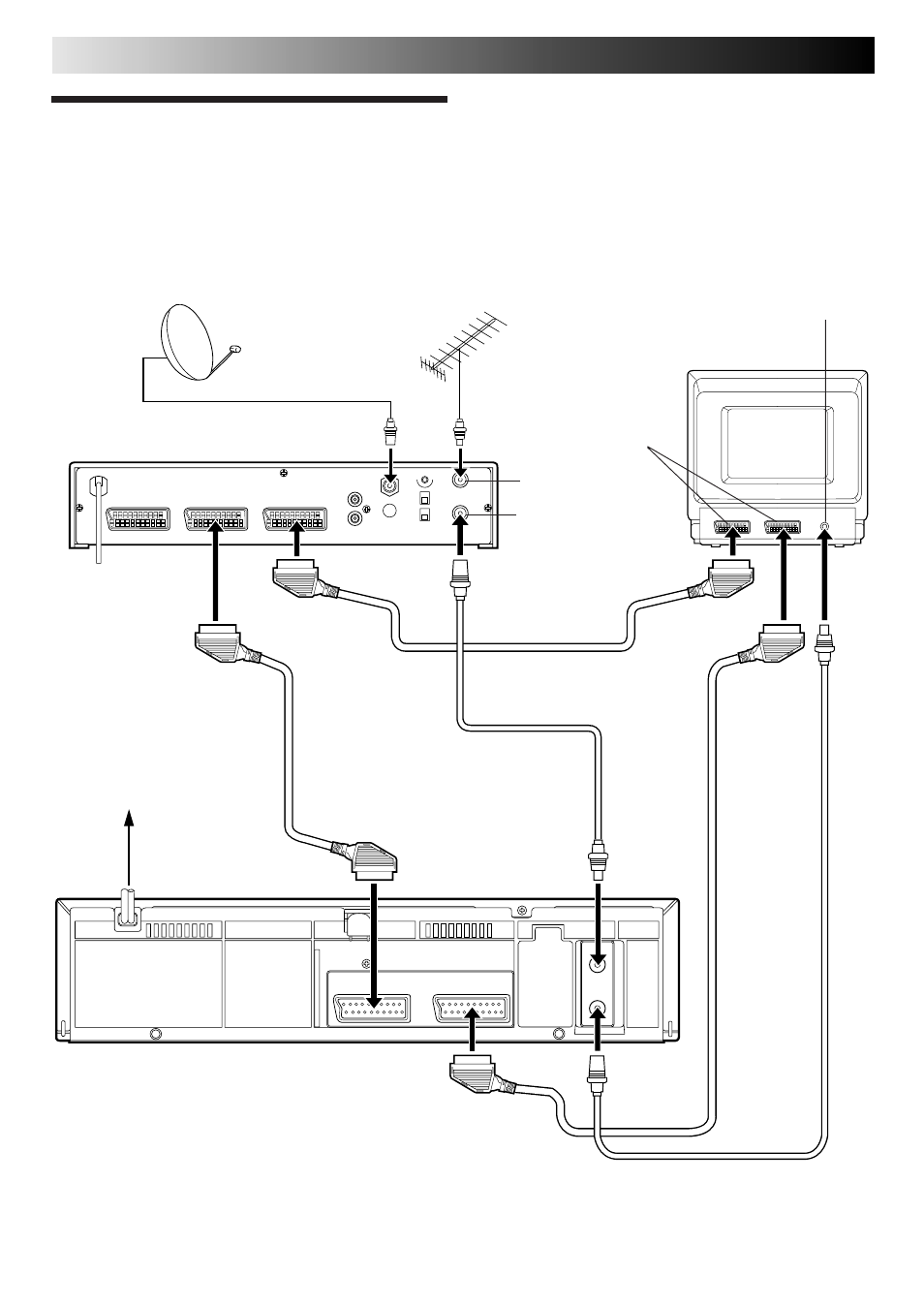

Connection To
A Satellite
Tuner
The AV2 IN/DECODER connector on the rear panel of your
recorder allows simple connection to a satellite tuner.
NOTE:
For details, check your satellite tuner’s instruction manual.
Mains outlet
TV Aerial cable
Aerial connector
Satellite Tuner Unit
Satellite Cable
Outdoor Unit
Aerial
Back of TV
21-pin AV input
connectors
(SCART)
RF OUT
ANT. IN
Back of Recorder
SYSTEM CONNECTIONS
