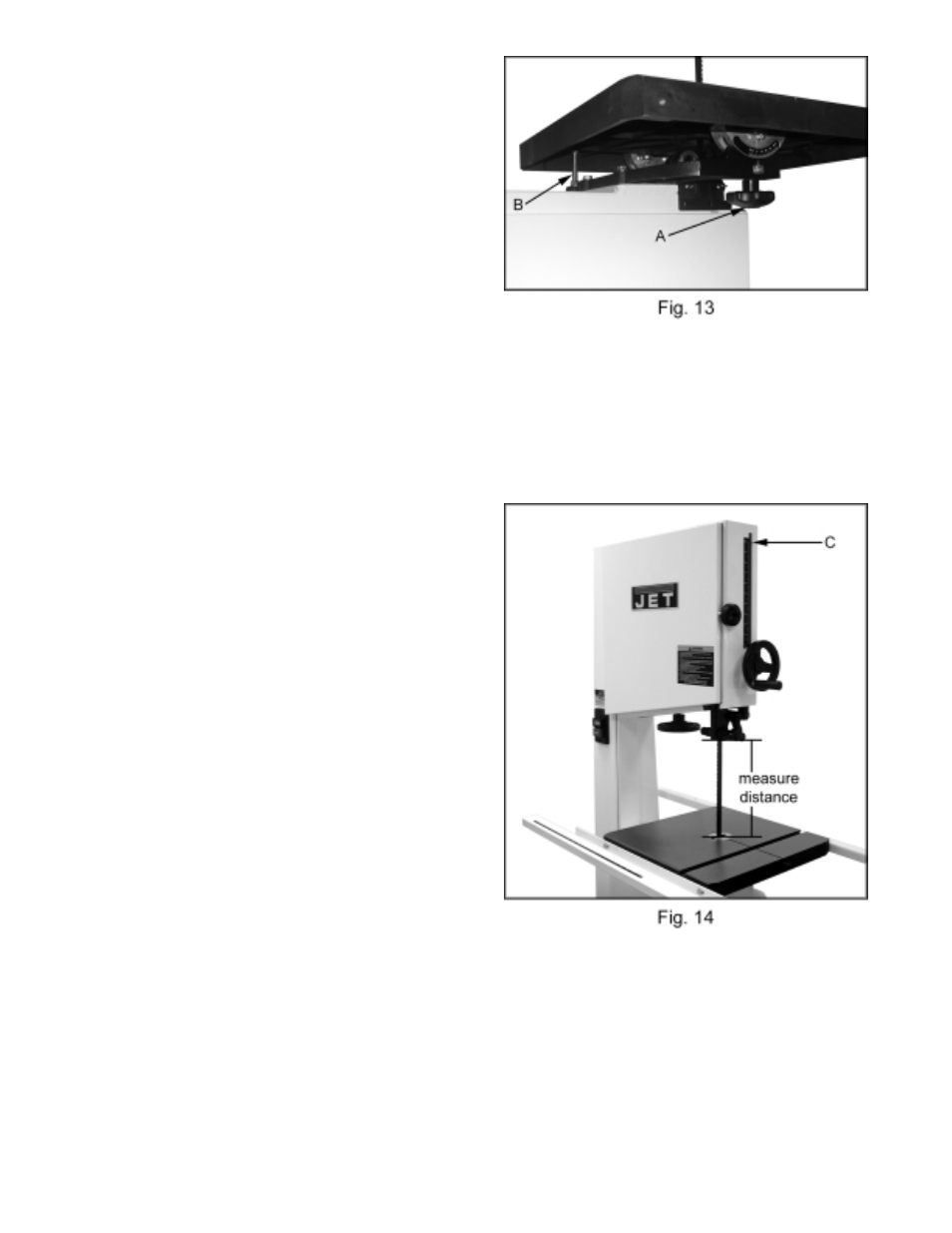

Tilting the Table

1. Disconnect the machine from the power

source, unplug.

2. Loosen the lock knobs (A, Fig. 13).

3. Tilt table up to 45 degrees to the right, or up

to 10 degrees to the left.

4. Tighten the lock knobs.

Note: Table stop bolt (B, Fig. 13) must be
removed to tilt table to the left.

Height Scale Adjustment

1. Disconnect the machine from the power

source, unplug.

2. The upper blade guide should be set about

1/8” above the material to be cut.

3. Measure from the table top to the bottom of

the blade guides, Figure 14.

4. Set the indicator to this measurement on the

height

scale.

Grasp the end of

the

indicator (C, Fig. 15) between your finger,
and

thumb.

Move

the

indicator

into

position.
