Basic Connections
A
Check contents
Make sure the package contains all of the accessories listed in “Specifications”.
B
Situate VCR
Place the VCR on a stable, horizontal surface.
C

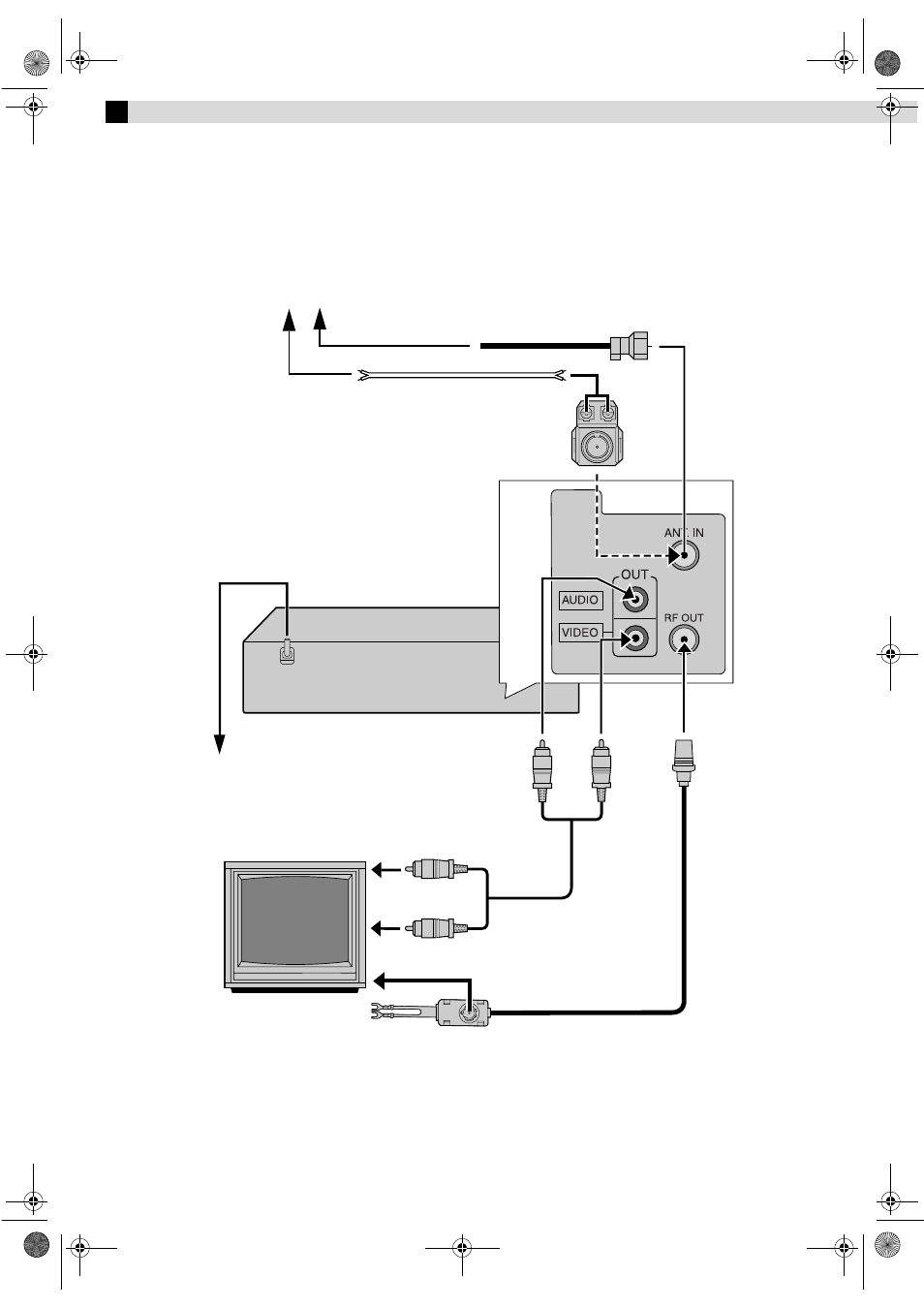

Connect VCR to TV
RF cable
(supplied)
Back of VCR
Flat feeder
AC power cord
Audio/video
cable
(not supplied)
To audio/video input
connectors
Antenna or cable
Matching transformer
(not supplied)
Coaxial cable
AC outlet
To 75 ⍀ terminal
TV
To 300 ⍀ terminal
