JL Audio Stealthbox SB-T-TTNCRW/10W3v2 - Manual (Page 2)

Specifications:
Enclosure Type: Sealed
Driver Type: 2) 10W3v2-D4
Nominal Impedance: 4
Ω
Cont. Power Handling: 600Watts
JL Audio recommends using a high quality amplifier such as the JL Audio 500/1. The diagram below shows the recommended
crossover, infrasonic filter and equalizer settings for the 500/1 when being used to power your Stealthbox®.
Included Hardware:
1) Wax Square
1) 3/8” x 2-1/4” Fender Washer
1) 3/8” Flat Washer
1) 3/8” Split Lock Washer
1) 3/8”-16 Hex Nut
1) 3/8”-16 x 2-1/4” Socket Cup Screw
10369 N. Commerce Pkwy, Miramar, Florida 33025-392 Phone: 954.443.1100 Fax: 954.443.1111
+12VDC Remote Ground
JL AUDIO 500/1
five-channel system amplifier
+ _ _ +
Subwoofer Output
MONO OUTPUT ONLY 40
45
55 65 85
120
200
Filter Freq. (Hz)
Mode / Slope
Off / 12dB / 24dB
Amp LP Filter
Infrasonic Freq. (Hz)
15
18
25 30 40
50
60
Off / 30Hz
Infrasonic Filter
0.5
0.7
1.1 1.6 2.7
4.3
"Q"
20
25
35 45 55
70
85
Center Freq.
0
+4 +10 +13
+15
Boost (dB)
Off / On
Bass EQ
Remote Bass Port
Advanced
Bass
Control
Preamp Output Section
Full Range / Amp Filter / Out Filter
Output Mode Filter Slope
12dB / 24dB
40
45
55 65 85
120
200
Filter Freq. (Hz) Left Ch. Right Ch.
Filter Mode
LP / HP
Amplifier Input Section
Input Sens.
Left Ch. Right Ch.
Signal Sensing
Off / On
Input Voltage
Low / High
The JL Audio 500/1 is a very versatile audio component. Please consult the owner’s manual for detailed information
about installing and tuning this amplifier.
➔ ➔
STEP 7: Run and attach speaker wire from the
amplifier location to the enclosure.

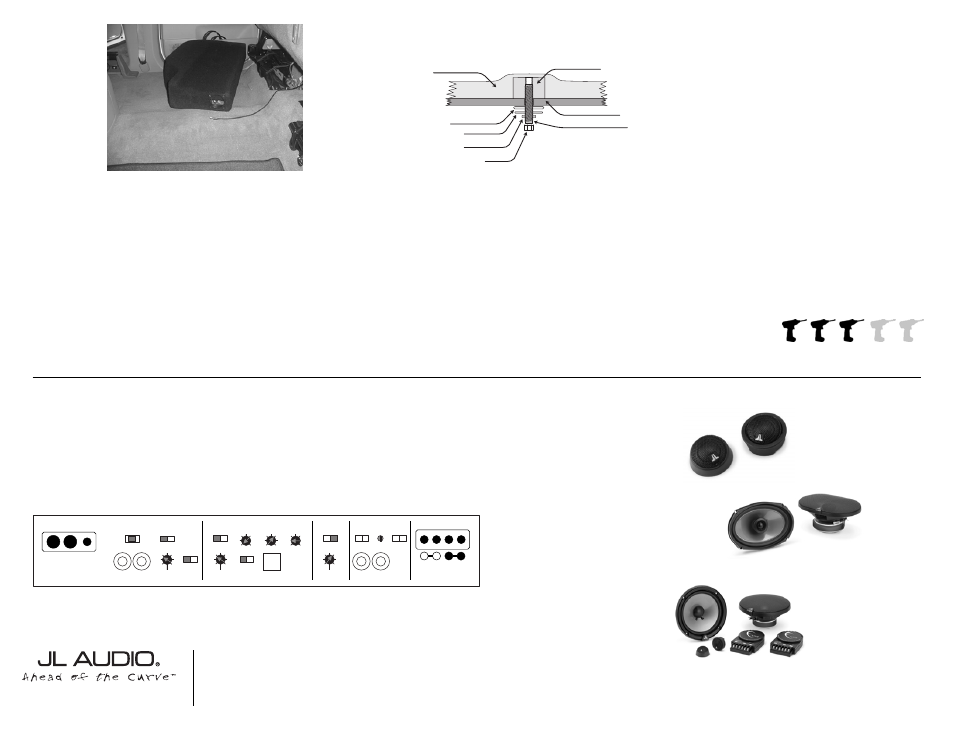

STEALTHBOX WALL THREADED INSERT
VEHICLE SHEET METAL
FENDER WASHER SOCKET CUP SET SCREW
LOCK WASHER
FLAT WASHER
HEX NUT
STEP 8: With the socket cup set screws protrud-
ing through the floor of the vehicle. Place the sup-
plied fender washer, flat washer, lock washer and hex
nut in this order.
Secure tightly.
➔
S B - T- T T N C RW / 1 0 W 3 v 2 , J L AU D I O, I n c 2 0 0 4 S h e e t S K U # 0 1 1 9 2 R ev i s i o n 1 0 / 9 / 2 0 0 4 Pa g e 2 w w w . j l a u d i o . c o m
Mid/High Frequency Driver Information:
CONGRATULATIONS!
INSTALL COMPLETE.
VR075-CT
VR690-CXi
VR650-CSi
Dash Location Driver Size:
2.5”
Applicable JL Audio Products:
TR050-CT,VR075-CT, XR100-CT
*mounting plate is needed
Front Location Driver Size:
6” x 9”
Applicable JL Audio Products:
TR690-TXi,VR690-CXi
*mounting plate is needed
Rear Location Driver Size:
6.5” separates
Applicable JL Audio Products:
TR,VR, XR, ZR 650-CSi
*mounting plate is needed
Cont.
From
Previous
Page
Difficulty Of Installation:
