7
Installation
Tools required
Drill with 5/16" drill bit
10mm open end wrenches
Cross point screwdriver
Adjustable square
Hammer (or rubber mallet)
Straight edge
The following instructions are for installing the
XACTA Fence II and Rail System on JET Models
JWCS-10 and JWTS-10 series table saws.
Front Rail Installation

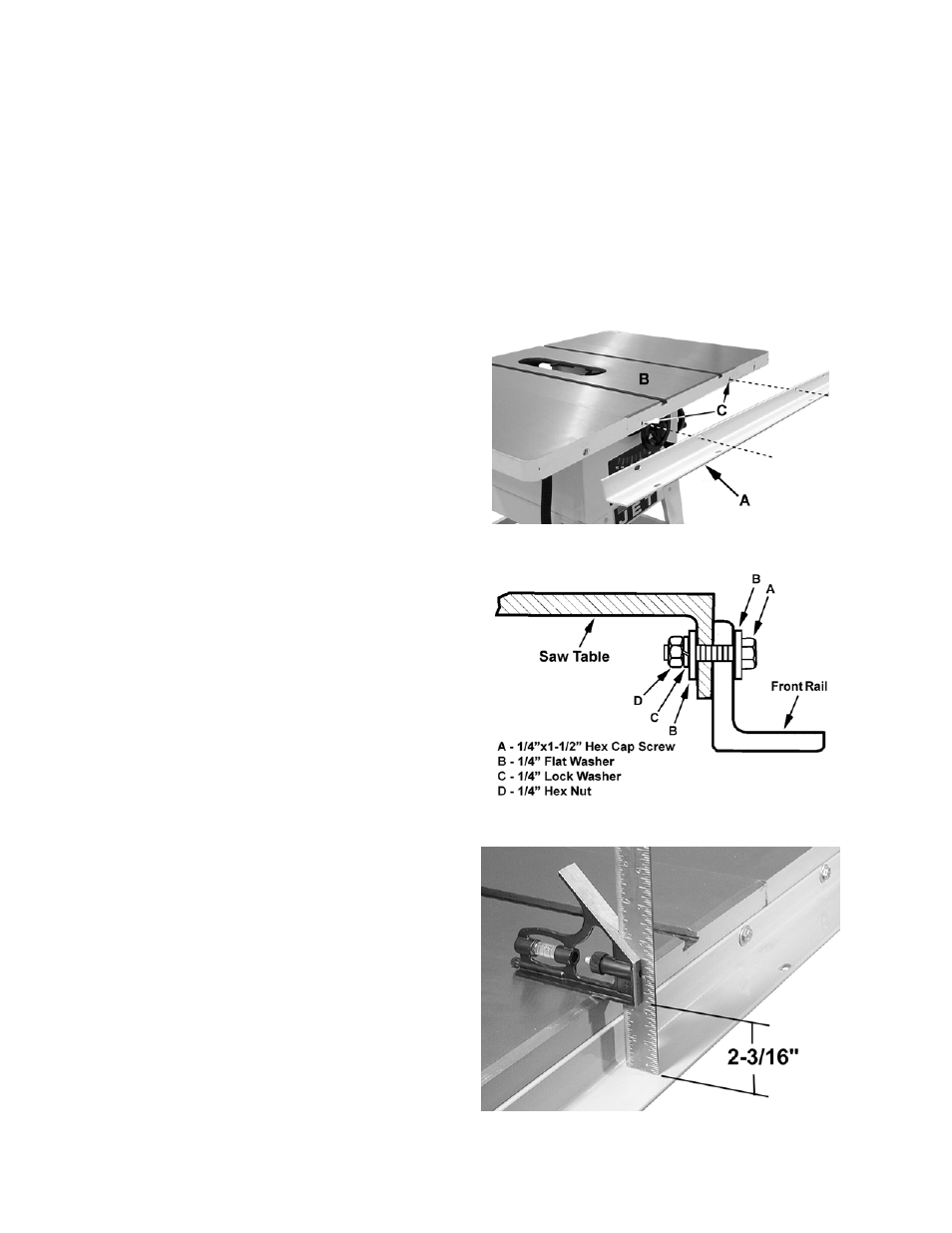

Referring to Figures 1:
1. With a 5/16” drill bit, drill out the two threaded
holes on the table front (C).
Note: By drilling out the threads you will gain
the needed room for adjustment of the front
rail.
2. Identify the front rail (A), which is 2” x 2” with
slots running along each side.
3. Align the slots on the front rail to the four holes
in the front edge of the saw table (Figure 1).
Referring to Figure 2:
4. Lightly secure the front rail to the saw table
and extension wings with four 1/4-20 x 1-1/2
hex cap screws, eight 1/4” flat washers, four
1/4” lock washers, and four 1/4” hex nuts.
Tighten just enough to hold the rail next to the
table but keep loose enough to allow height
adjustment.
The front rail must be 2-3/16" down from the table
top in order to function properly.
5. Place an adjustable square on the table as
shown in Figure 3.
6. Check the height of the front rail at several
locations along the surface of the saw table.
The front rail must be parallel with the table
top.
7. When the front rail has been correctly
positioned, tighten all mounting screws
securely with two 10mm wrenches.
Figure 1
Figure 2
Figure 3
