8
3
CH.
IN
OUT
ANT.
DIGITAL AUDIO AUDIO S-VIDEO COMPONENT
DVD OUTPUT
L
R
VIDEO
OPTICAL COAXIAL
AUDIO
L
R
4
( )
TV ( )
Y
P B /C B
P R /C R
POWER
VIDEO (M) L - AUDIO - R VCR CH
VCR/DVD
EJECT OPEN/CLOSE
PLAY STOP
REW FF REC DVD

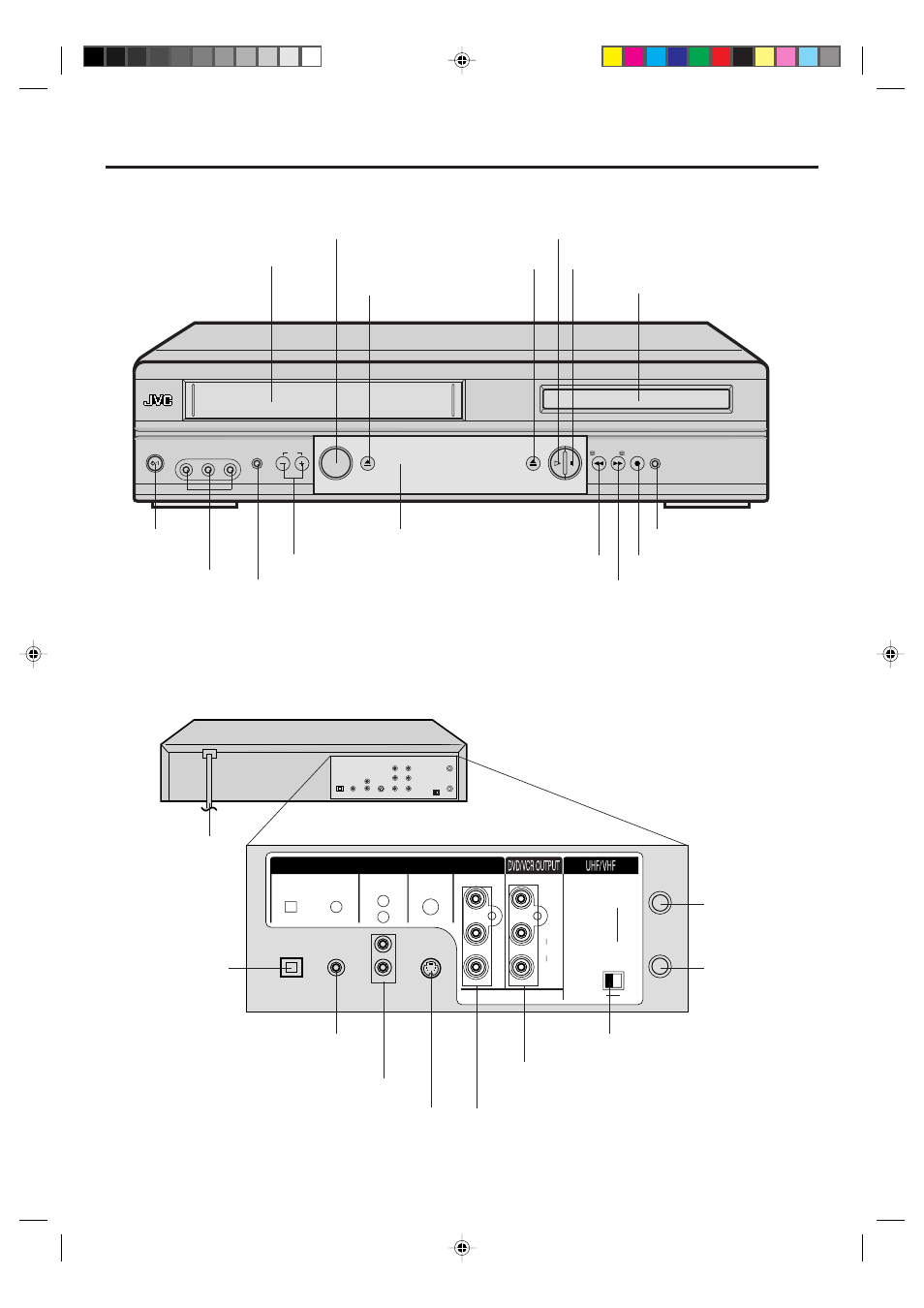

Parts and functions
Front
STOP button
Rear
AC power cord
PLAY button
OPEN/CLOSE button
Disc tray
POWER
button
DVD/VCR common AUDIO (L/R)/VIDEO OUT
jacks
3/4 Channel Selector Switch DVD COAXIAL DIGITAL
AUDIO OUT jack
RF IN jack
CHANNEL +/– buttons
AUDIO (L/R)/
VIDEO IN jacks
FF (Fast Forward) button
Remote sensor
EJECT button
VCR indicator
VCR/DVD mode selector button
Cassette Loading Slot
REW (Rewind) button REC button
DVD indicator
DVD OPTICAL
DIGITAL AUDIO
OUT jack
DVD AUDIO (L/R) OUT jacks
DVD S-VIDEO OUT jack DVD COMPONENT OUT jacks
RF OUT jack
