Johnson Controls SA PD 180 THRU 240 User Manual

Page 31

background image

430645-YIM-D-0610

Johnson Controls Unitary Products

31

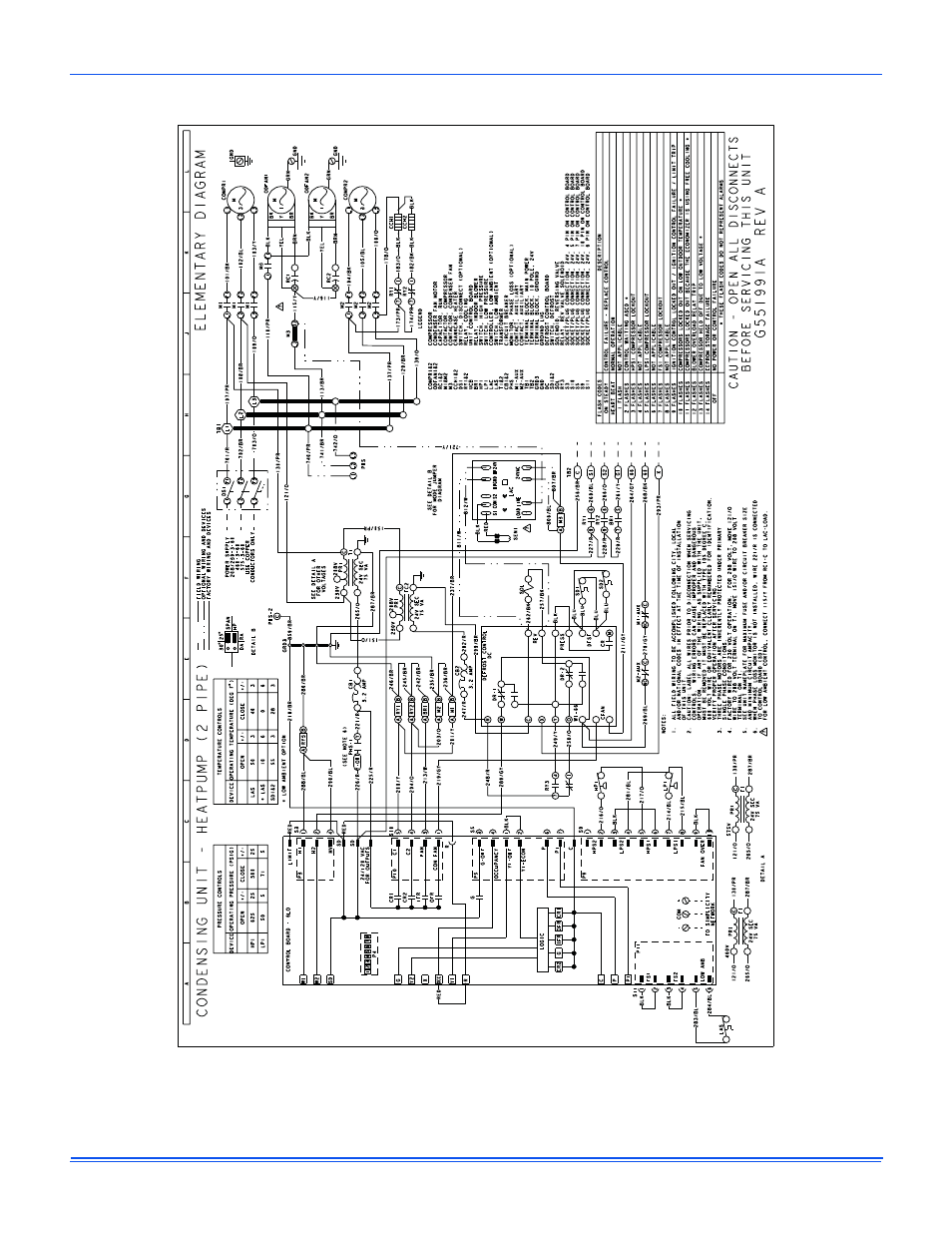

Figure 18: Typical PC120 Heat Pump Wiring Diagram
