4

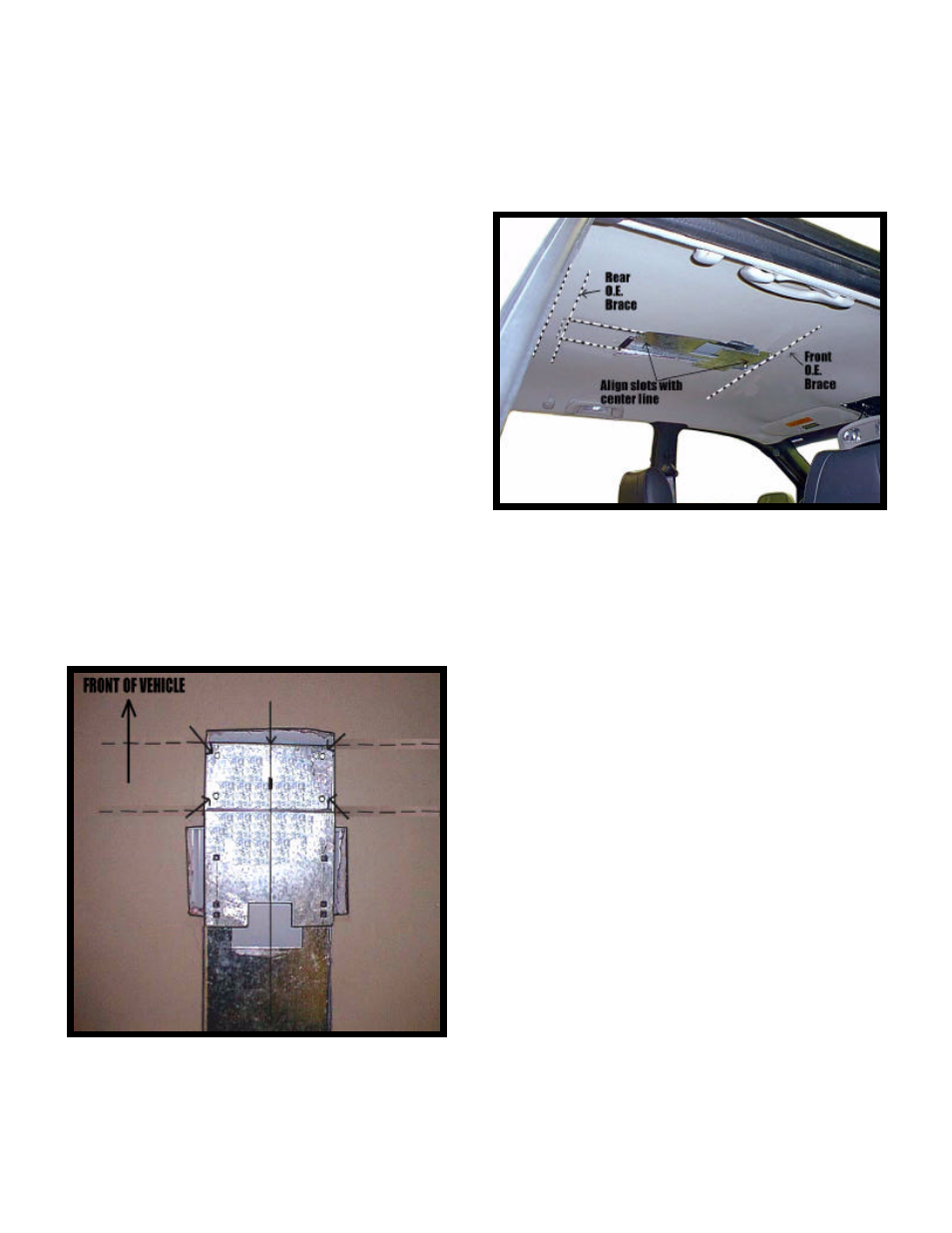

8. Insert rear mounting bracket (item 6 pg. 2) with the
bent edges downward. Slide bracket rearward
between headliner and roof until tabs engage rear
O.E. roof brace. Align slots in bracket with center
line scribed on roof. See Figure 4. Note: There is
a foam sealer between O.E. braces and roof of
vehicle. It may require a little force to fully
engage tabs of bracket if foam is in that area.
9. Install front mounting bracket (Item 7 pg. 2) over rear
mounting bracket and align slot with centerline scribe
and edge of bracket with front O.E. brace. Secure
using (4) four # 10x 1/2" screws. (Item 1 pg.2)
See Figure 5.
FIGURE 5
FIGURE 4
