Jeep 50-0284x-015 Series - Manual

INSTALLATION INSTRUCTIONS
FOR
50-0284x-015 SERIES 1181313
JEEP GRAND CHEROKEE

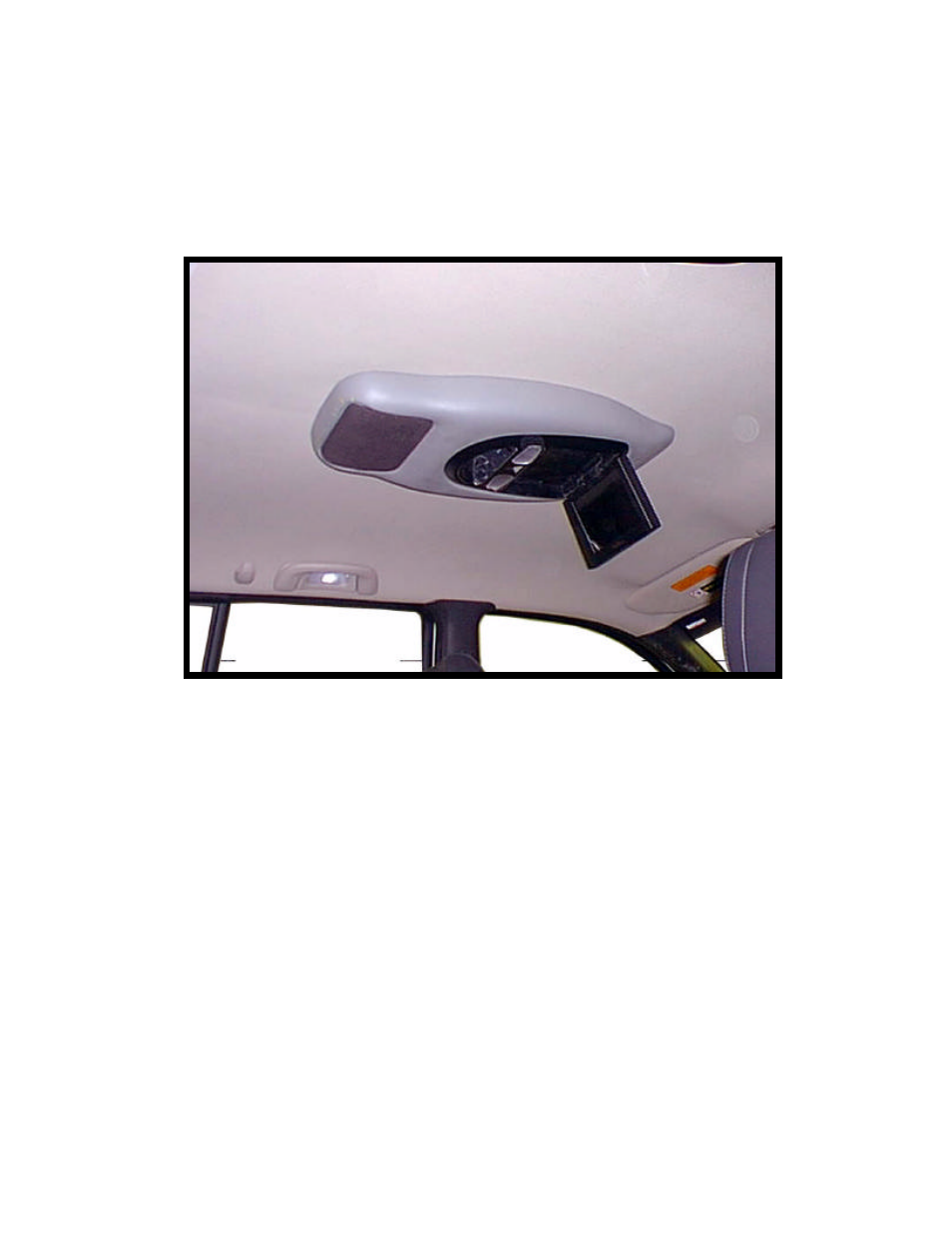

OVERHEAD CONSOLE for use with FLIPDOWN VIDEO SYSTEM
These instructions are intended for use only by experienced professionals in the automotive
customizing business. Special tools and equipment, as well as specialized handling and care
of product during installation, may be required. Before beginning this installation, carefully read
through the following instructions. Use extreme care when cutting headliner material.
Check for wiring or other componentry above headliner material. Cut only where indicated.
Materials/ Tools required for this installation:
1. #2 Phillips screwdriver 2. Powered screwdriver or drill with adapter
3. Awl or similar tool 4. Razor knife or similar
5. 18 GA wire 4' - 6' 6. Scissors
7. 5/16” Hex Socket Bit 8. Safety Goggles
9. Test light 10. 3/8” Drill Bit
11. Audiovox Series 640/650 Video Module
NOT FOR VEHICLES EQUIPPED WITH SUN ROOF.
June 2, 1999
Printed in the U.S.A
INSTALLATION INSTRUCTION # 44-0031A
