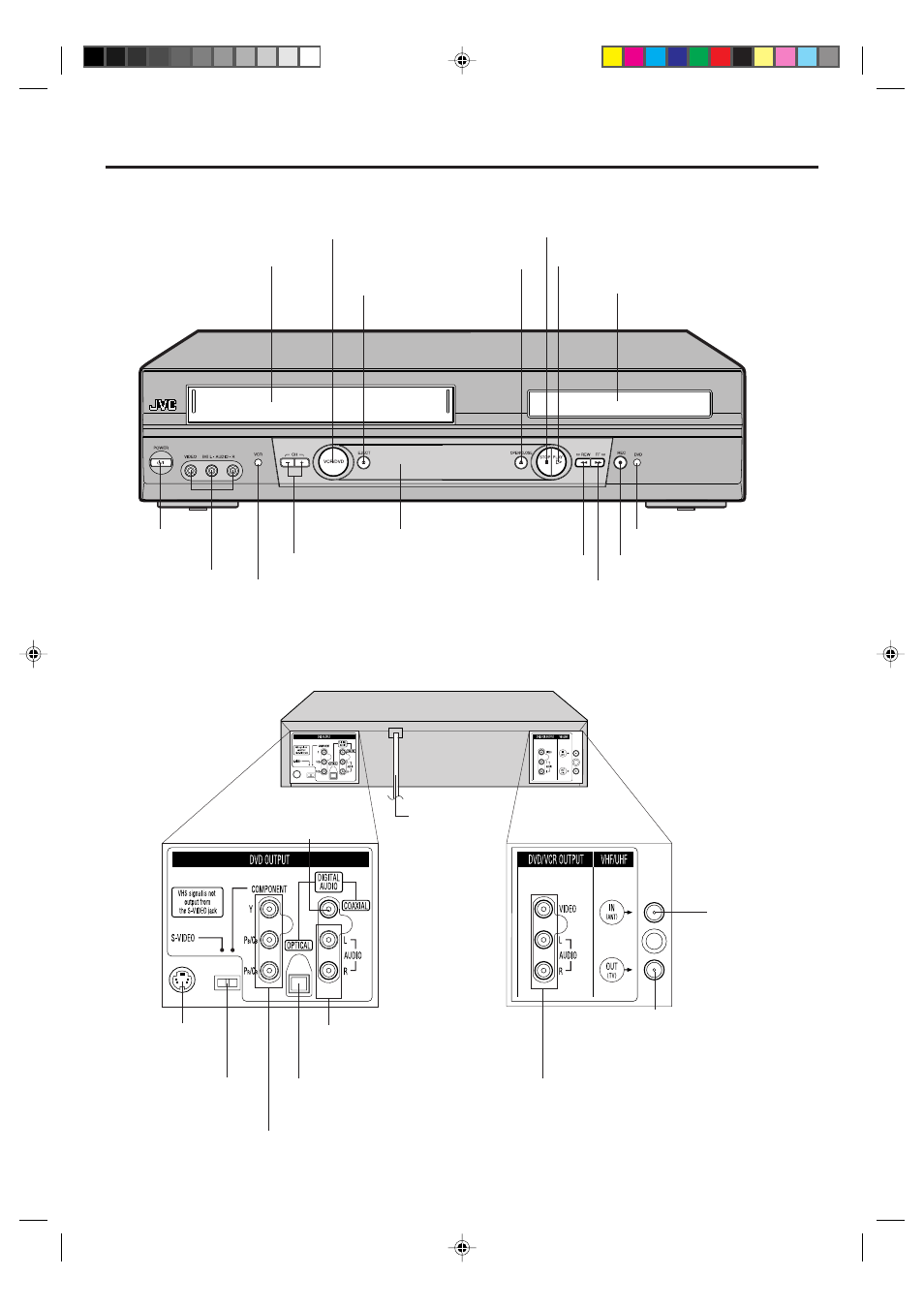

Parts and functions
Front
STOP button
Rear
PLAY button OPEN/CLOSE button
Disc tray
POWER
button
CHANNEL +/– buttons
AUDIO (L/R)/
VIDEO IN jacks
FF (Fast Forward) button
Remote sensor
EJECT button
VCR indicator
VCR/DVD mode selector button
Cassette Loading Slot
REW (Rewind) button REC button
DVD indicator
AC power cord
DVD/VCR common AUDIO (L/R)/
VIDEO OUT jacks S-VIDEO/COMPONENT
Video selector switch
DVD COAXIAL DIGITAL
AUDIO OUT jack
RF IN jack
DVD OPTICAL DIGITAL
AUDIO OUT jack
DVD S-VIDEO
OUT jack
DVD COMPONENT OUT jacks
RF OUT jack
DVD AUDIO (L/R)
OUT jacks
