SYSTEM CONNECTIONS (cont.)
Connecting/Using
A Decoder The L-2 IN/DECODER connector can be used as an input
connector for an external decoder (descrambler). Simply
connect a decoder and you can enjoy the variety of
programming that is available through scrambled
channels.
A
Select the input mode.
Set “L-2 SELECT” to “DECODER”. (
੬
pg. 31)
B
Connect the decoder.
Connect your recorder’s L-2 IN/DECODER connector to
the decoder’s 21-pin SCART connector using a 21-pin
SCART cable.
C
Set the tuner.
Perform the procedure as described in “When Receiving
A Scrambled Broadcast” on page 43.

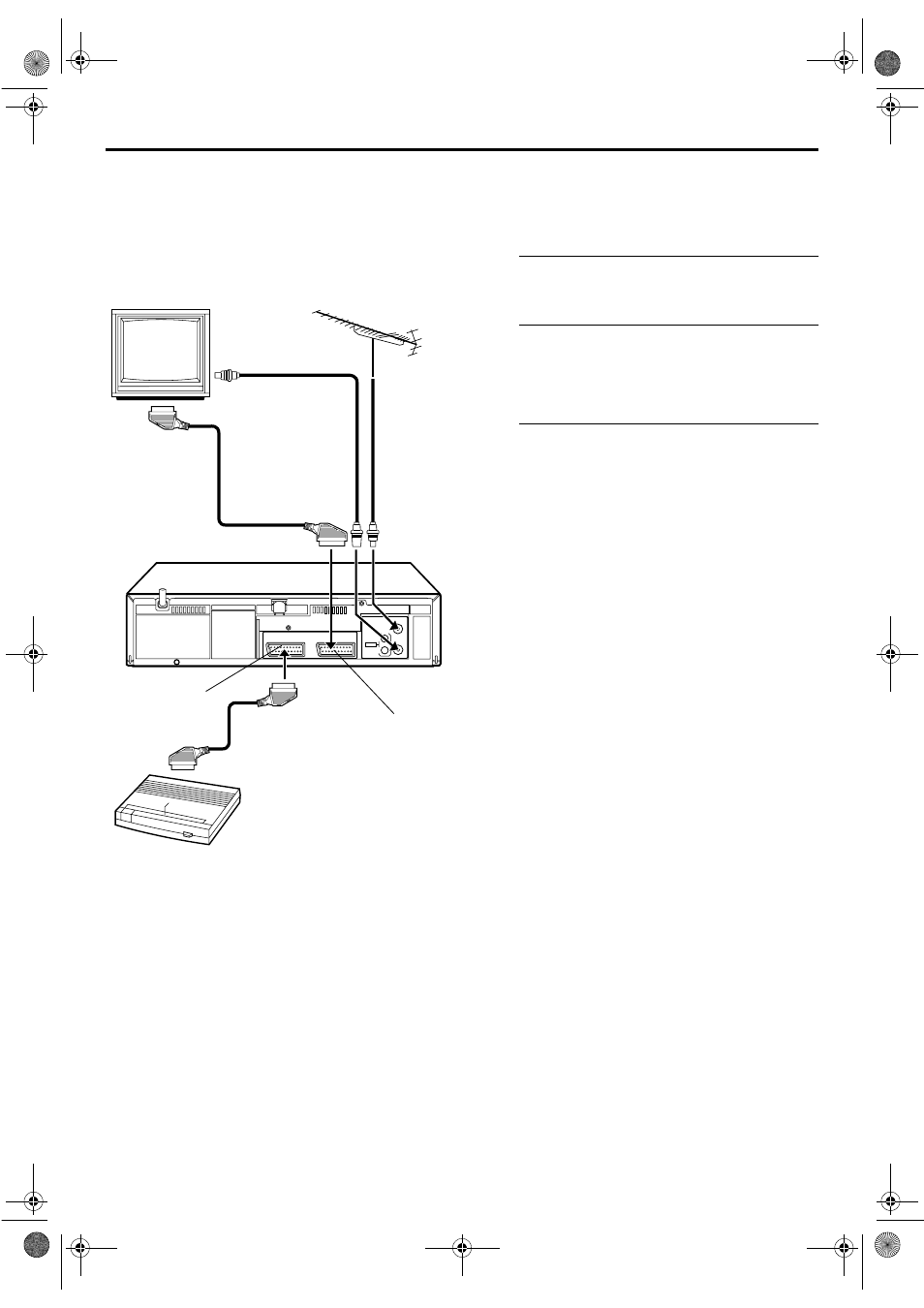

TV receiver
