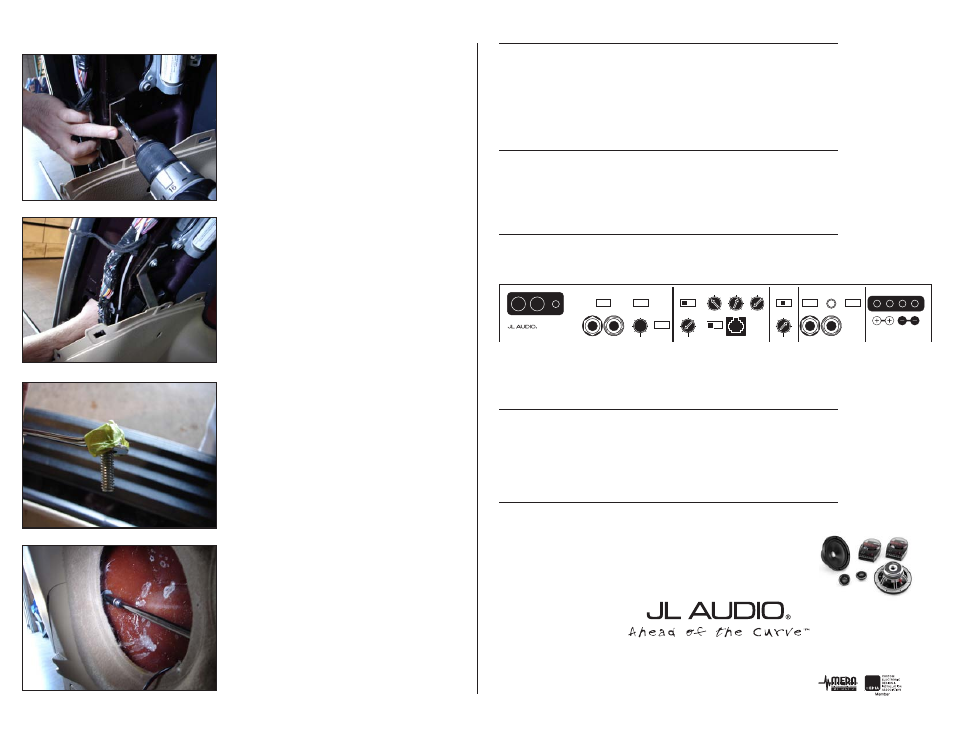

SB-GM-ESC(ESV)/10W1v2 INSTR_SKU# 011303

S T E P 1 5
Install the mounting 3/8-16 x 1 3/4” Hex Head Bolt, Split Lock
Washer and Flat Washer through the enclosure wall into the
Speed Nut shown in STEP 11. Also install the Hex Nut, Split
Lock Washer and, Flat Washer on the stud that protrudes
into the bottom of the Stealthbox® from the Triangular
Plate installed in STEP 5. Re-install the woofers into the
Stealthbox®.

C O N G r A T U L A T I O N S !

You have completed the installation for this model!

Enjoy your new Stealthbox®! Please refer to the Power

Recommendation section for an amplifier recommendation

and basic set-up help.

D E T A I L
One way to get the Hex Head Bolt and Flat Washer installed
from the inside of the rear pillar out is to tape them to a
wrench and then guide them through the recently drilled
hole. Once this hardware is in place, tighten all of the
hardware that secures the Custom Bracket in location. With
the Custom Bracket securely installed, replace the upper rear
quarter window trim molding that was removed in STEP 7.

Connect the speaker cables from the amplifier and set the
Stealthbox® in place.

S T E P 1 3
From inside the rear pillar, feed the 1/4-20 x 1” Hex Head Bolt
and 1/4” Flat Washer through the hole drilled in STEP 12 as
shown.

A suggestion on how to get the hardware through the hole
and held in place is shown below.

S T E P 1 2
With the bottom of the Custom Bracket bolted in and
aligned as described in Step 11 drill a hole through the
pillar corresponding with the upper hole in the Custom
Bracket as shown.

****CAUTION****

Before drilling, always make sure that you are not

going to be drilling into any gas lines, brake lines,

tires, transmission lines, electrical wiring, exhaust

systems or anything else that might cause a

reduction in your weekly pay. Always wear eye

protection when drilling!

Page 3 • JL Audio, Inc 2009

All specifications are subject to change without notice. “JL Audio®” and the JL Audio logo, “Stealthbox” and the Stealthbox logo are registered

trademarks of JL Audio, Inc. “Ahead of the Curve” and its respective logo is a trademark of JL Audio, Inc.
JLA-SKU# 011303 02.15.2010 • Printed in USA • ©2010 JL Audio, Inc. • U.S. PATENTS: #5,734,734 #5,949,898 #6,118,884 #6,229,902 #6,243,479

#6,294,959 #6,501,844 #6,496,590 #6,441,685 #5,687,247 #6,219,431 #6,625,292 #D472,891 #D480,709 Other U.S. & Foreign patents pending.

For more detailed information please visit us online at www.jlaudio.com.

(954) 443-1100

w w w. j l a u d i o . c o m

1 0 3 6 9 N O R T H C O M M E R C E P A R K W A Y • M I R A M A R , F L O R I D A • 3 3 0 2 5 • U S A

I N C L U D E D H A r D W A r E

1) Triangular Plate

1) Custom Bracket

4) 1/4” Flat Washer

3) 3/8” Split Lock Washer

2) 1/4-20 x 1” Hex Head Bolt

2) 1/4” Split Lock Washer

2) 3/8-16 x 1 3/4” Hex Head Bolt

2) 3/8-16 Hex Nut

2) 1/4-20 Speed Nut

2) 1/4-20 x 1” Hex Head Bolt

2) 3/8 x 1-1/4” Fender Washer

2) 3/8 x 2” Fender Washer

S P E C I F I C A T I O N S

Enclosure Type: Acoustic Suspension (sealed)

Driver Type: (2) 10W1v2-4

Nominal Impedance: 4Ohms per woofer, 2Ohm final load

Continuous Power Handling: 600 Watts

P O W E r r E C O m m E N D A T I O N

JL Audio recommends high quality amplifiers such as the JL Audio HD900/5, 500/1v2, XD600/1 or J2 500.1. The
diagram below shows the recommended crossover, infrasonic filter and equalizer settings for the 500/1v2. If
another amplifier is being used, please reference this illustration and use similar settings on that amplifier.

All JL Audio amplifiers are very versatile audio components. Please consult the owner’s manual for even more
detailed information about installing and tuning your amplifier.

C O N N E C T I O N S

Using quality power, signal and speaker wire is essential in ensuring the performance of your Stealthbox®.
JL Audio recommends using a 4 AWG power kit such as the XC-PCS4-1B for your Stealthbox® amplifier, other
kits are available should you be using more than one amplifier. Signal wire such as the JL Audio Premium
Audio Interconnect Cables should be used that will provide signal for both channels of the amplifier. JL Audio
reccommends using 12AWG speaker wire for subwoofers such as our XC-BCS12-25.

m I D / H I G H F r E q U E N C Y D r I V E r F I T m E N T

A variety of JL Audio coaxial and component systems will fit in the factory speaker locations of you vehicle.

Front Speaker Size / Location: 6-1/2”- Front Doors

Fits JL Audio Models: TR650-CXi, C2-650x, C3-650, C5-650, C5-650x & ZR650-CSi

Rear Speaker Size / Location: 6-1/2”- Rear Door

Fits JL Audio Models: TR650-CXi, C2-650x, C3-650, C5-650, C5-650x & ZR650-CSi

+12VDC

Ground Remote

Preamp Output Section

Infrasonic Filter

“Q”

Center Freq.

Boost (dB)

Amp LP Filter

Advanced

Bass

Control

Amplifier Input Section

Subwoofer Output

MONO OUTPUT ONLY

Left Output

Right Output

Left Ch.

Right Ch.

Filter Freq. (Hz)

Filter Freq. (Hz)

Infrasonic Freq. (Hz)

Remote Bass Port

Full Range | Amp Filter | Out Filter

Output Mode

Filter Slope

Mode

Mode | Slope

Input Voltage

Input Sens. Signal Sensing

12dB | 24dB

Filter Mode

LP | HP

Bass EQ

Off | On

Off | 12dB | 24dB

Low | High

Off | On

Off | On

40

45

55

65

80

100

200

15

18

22

30

45

55

60

40

45

55

65

80

100

200

0.5

0.7

1.1

1.6

2.7

4.3 20

25

30

40

60

75

80

0

+4

+10

+13

+15

500/1

v2

Monoblock Subwoofer Amplifier
