INDEX

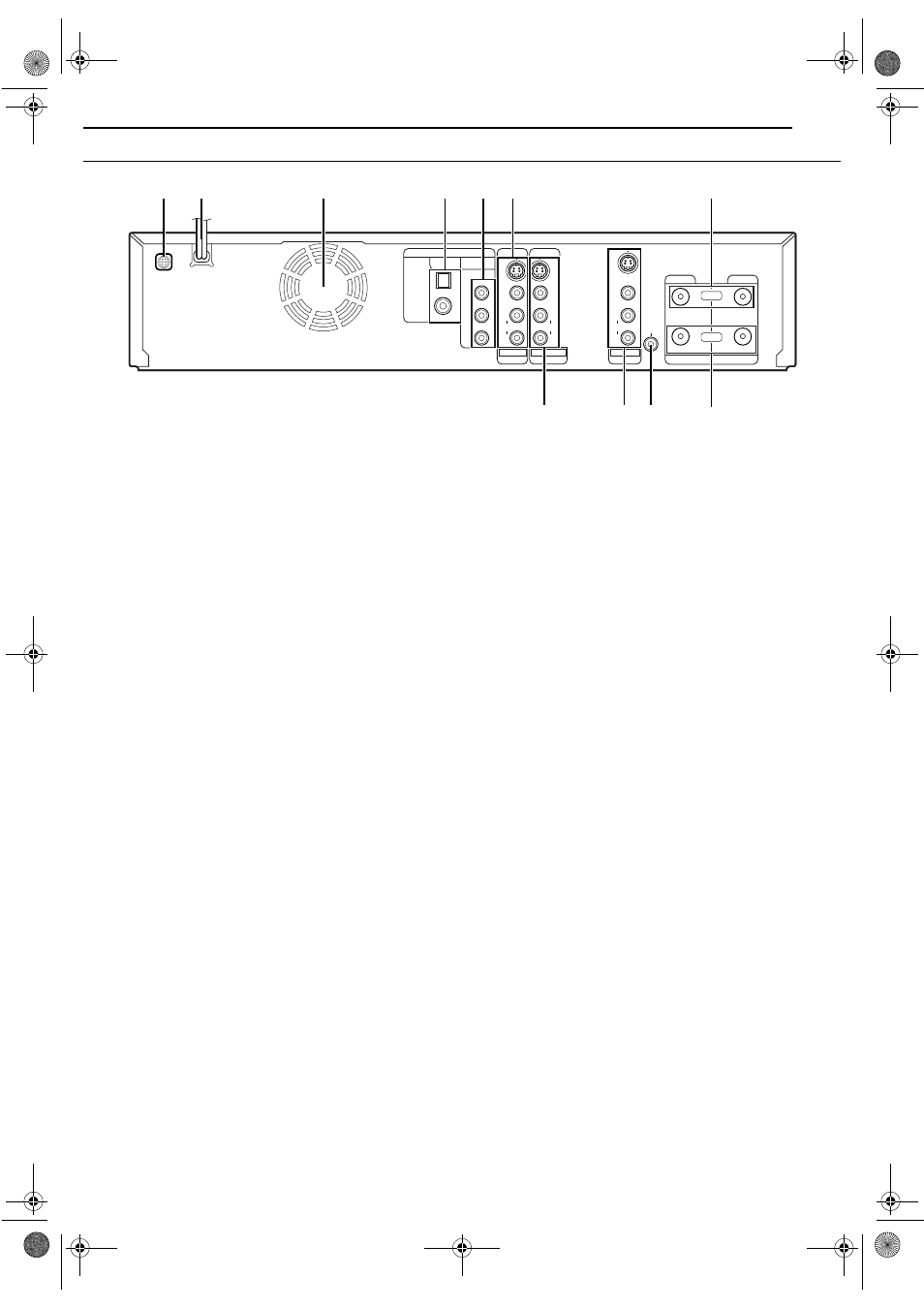

Rear View
A Region Number Label
B AC Power Cord
C Cooling Fan
● This prevents the temperature from rising inside the unit.
Do not remove it.
● Install the unit so as not to block the area around the fan.
● The cooling fan on the rear of the unit may be activated even if
the unit is turned off when “AUTO CLOCK” is set to “ON”
(
D Digital Audio Output Connectors
(DIGITAL AUDIO OUT (COAXIAL/OPTICAL)) (DVD
deck only)
E Component Video Output Connectors (COMPONENT
VIDEO OUT) (DVD deck only)
F S-video/Video/Audio Output Connectors (S-VIDEO/
VIDEO/AUDIO OUTPUT) (DVD deck only)
G Antenna Input Connectors (VHF/UHF IN (DVD/VCR))
H S-video/Video/Audio Input Connectors (S-VIDEO/
I S-video/Video/Audio Output Connectors (S-VIDEO/
VIDEO/AUDIO OUTPUT)
J Cable Box Control Connector (CABLE BOX) (DVD deck
only)
K Antenna Output Connectors (VHF/UHF OUT (ANT.
LOOP. OUT/TV OUT))
1
OUTPUT
DVD/VCR
VHF/UHF
OUTPUT
DVD
INPUT L-1
DVD/VCR
COAXIAL
OPTICAL
DVD
DVD
IN
VCR
Y
L
R
P
B
P
R
DIGITAL
AUDIO OUT
COMPONENT
VIDEO OUT
VIDEO
S VIDEO
S VIDEO
S VIDEO
AUDIO
VIDEO
AUDIO
PCM/
STREAM
L
R
VIDEO
AUDIO
CABLE
BOX
ANT. LOOP OUT
TV OUT
L
R
OUT
I
A B
C
D
F
E
G
K
J
H
