Getting started (continued), Part names and functions – JVC KY-F550 User Manual
Page 8

E-8
4
1
2
3
1

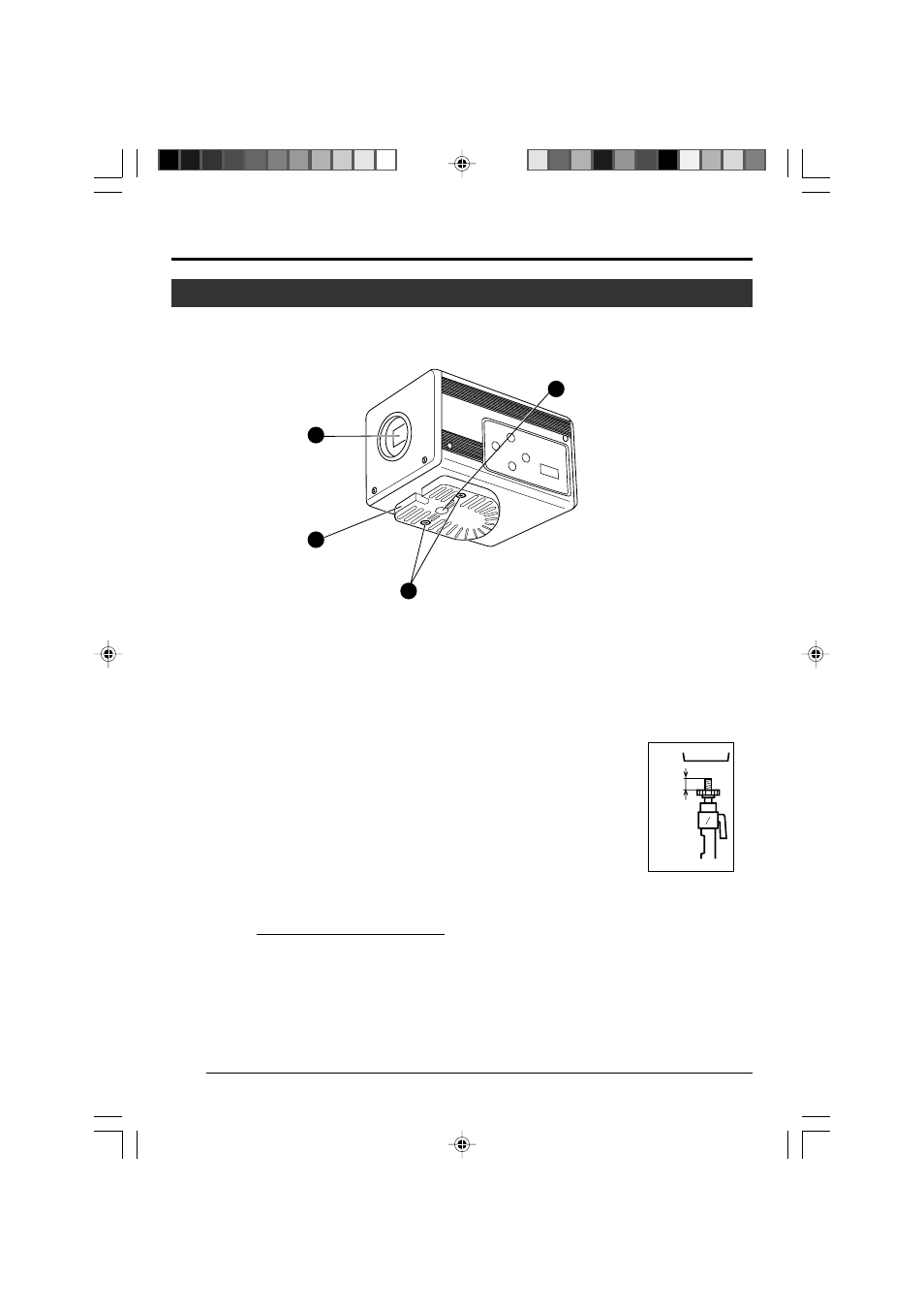

Lens Mount
For mounting lens. Suitable for C mount lens
meant for 3 CCDs.
☞Page 17 ‘Mounting the Lens’
2
Camera Mounting Bracket
Supplied together with this unit. Mount it to the
top or bottom surface according to the condi-
tions of use. Mount with the fastening screws
for the camera mounting bracket
3.
☞Page 19 ‘Mounting the Camera’
3
Fastening Screws for Camera
Mounting Bracket
Supplied together with this unit.
(M2.6 x 6 mm, 2 pcs)
Caution
Make sure to use screws that are supplied with
this unit. Use of screws that are 6 mm or longer
in length may give rise to malfunction of the unit.
4
Camera Mounting Screw Holes (1/
4-20UNC)
Use when mounting this unit to fixer or swivel
bases.
(Use screws that are 7 mm or shorter in length. )
1. Getting Started (continued)
Part Names and Functions
7mm
and
below
Front / Bottom
