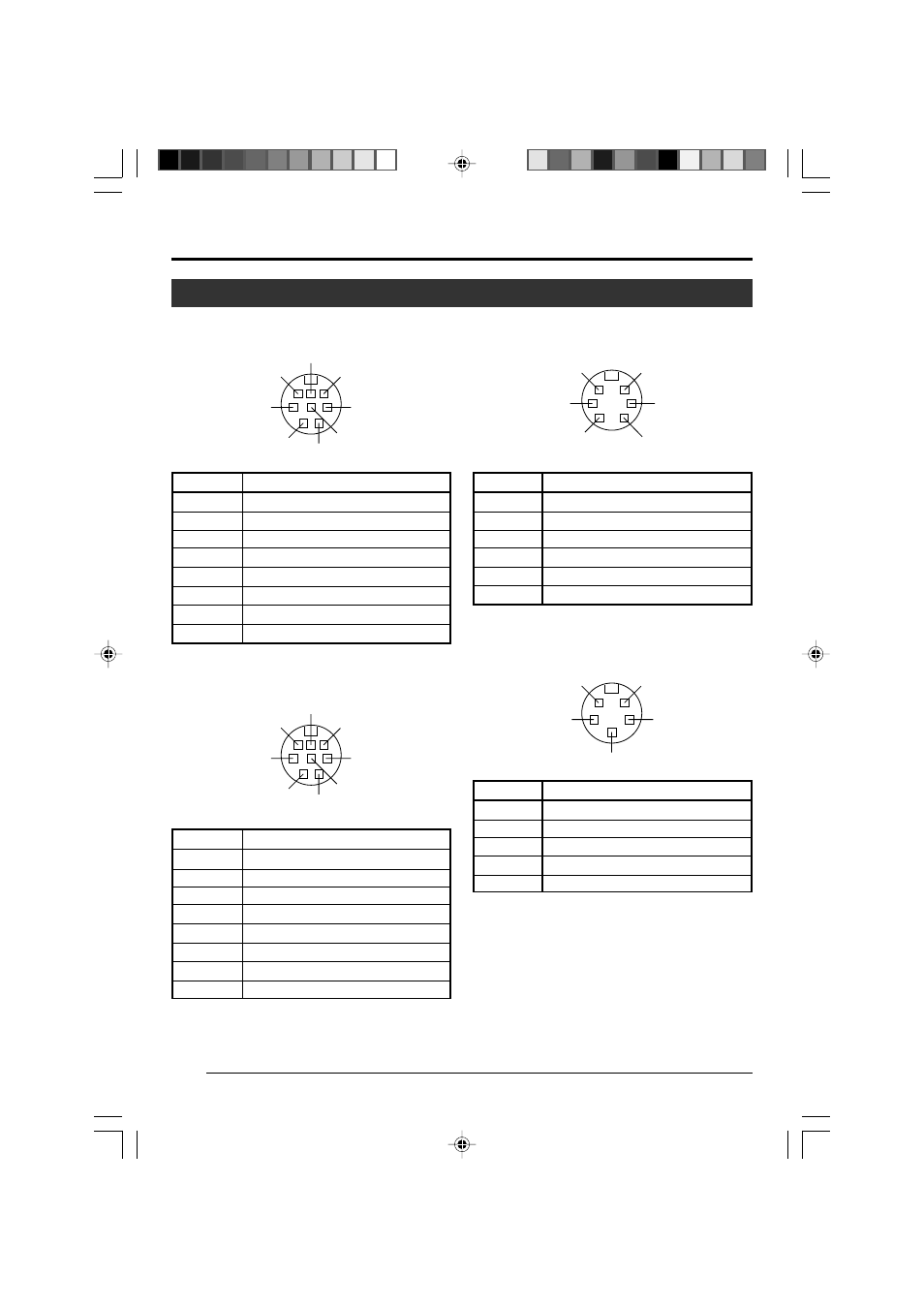

1. Getting Started (continued)
Description of Terminals
Power Input Terminal (Mini DIN 8 Pin,
Female)
Pin No.
1
2
3
4
5
6
7
8
Remote Terminal (Mini DIN 6 Pin, Female)
Lens Connection Terminal (Mini DIN 8
Pin, Female)
Trigger Terminal (Mini DIN 5 Pin, Female)
(TCS7858 : Hoshiden)
Notes
● Please consult your JVC-authorized dealer on
connection of trigger terminal.
● Ensure to use cables that are shielded.
Suitable Plug: Mini DIN 5 PIN
Signal
NC
GND
NC
NC
GND
+ 12 V Input
NC
+ 12 V Input
Pin No.
1
2
3
4
5
6
Signal
GND
OPERATE(L:ON)
GND
SID2(TX)
SID1(RX)
+ 9 V Output
Pin No.
1
2
3
4
5
6
7
8
Signal
LENS TYPE
GND
IRIS CONTROL
+ 12 V Output
SERVO SEL
ZOOM CONTROL
FOCUS CONTROL
Y SIGNAL OUT
Pin No.
1
2
3
4
5
Signal
SI Output
TRIG Input
GND
WEN Output
NC
