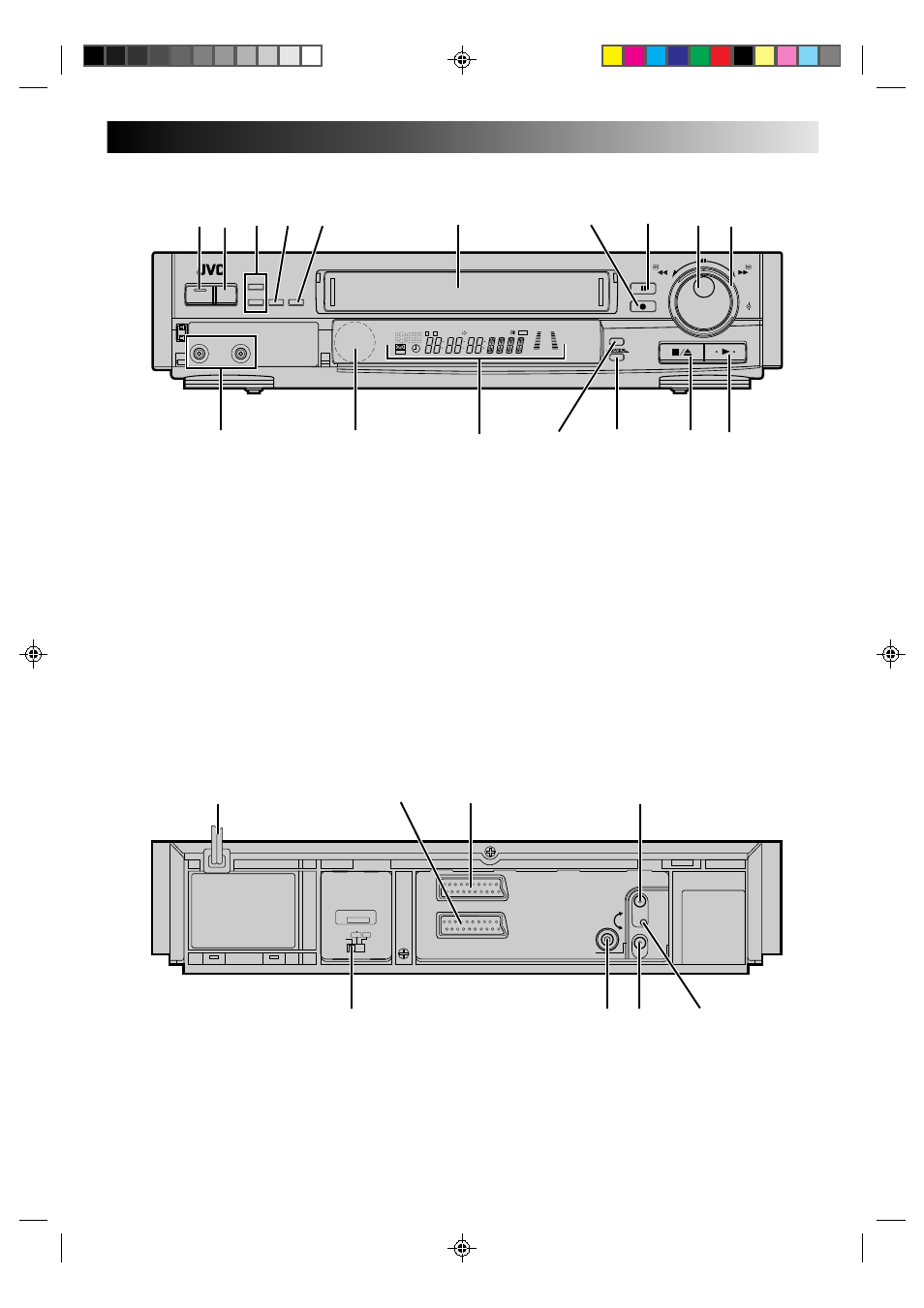

FRONT VIEW
1 Mains Power Cord (
੬
pg. 3)
2 AV1 IN/OUT Connector (
੬
pg. 3)
3 AV2 IN/DECODER Connector (
੬
pg. 4)
4 ANT. IN Connector (
੬
pg. 3)
5 AV2 SELECT/RF TEST Switch (
੬
pg. 4)
6 Remote PAUSE Connector [E439EG only]
(
੬
pg. 29)
7 RF OUT Connector (
੬
pg. 3)
8 RF Output Channel Adjustment Screw (
੬
pg. 4)
REAR VIEW
*Remove the cap to use the front panel connectors.
1 OPERATE Button (
੬ pg. 5)
2 TIMER Button (
੬ pg. 23)
3 TV PROG. +/– Buttons (
੬
pg. 5)
4 SP/LP [Tape Speed] Button [E439EG](
੬
pg. 15)
COUNTER MEMORY Button [E239EG](
੬
pg. 14)
5 AUTO SP/LP TIMER Button [E439EG](
੬
pg. 26)
COUNTER RESET Button [E239EG](
੬
pg. 14)
6 Cassette Loading Slot
7 RECORD Button (
੬ pg. 15)
8 PAUSE Button (
੬ pg. 10)
9 TV PROG. Dial (
੬ pg. 15)
JOG Dial (
੬ pg. 10)
0 SHUTTLE Ring (
੬ pg. 10)
! VIDEO and AUDIO Input Connectors (
੬ pg. 27)
@ Infrared Beam Receiving Window
# Display Panel (
੬
pg. 38)
$ AUDIO DUBBING Button [E439EG](
੬ pg. 27)
DISPLAY Button [E239EG](
੬ pg. 14)
% REVIEW Button (
੬
pg. 11)
^ STOP/EJECT Button (
੬
pg. 9)
& PLAY Button (
੬
pg. 9)
