You can use a camcorder as the source player and your video
recorder as the recorder.
Edit From A
Camcorder
MAKE CONNECTIONS
1
Connect the camcorder’s AUDIO/VIDEO OUT
connectors to the recorder’s front panel AUDIO/VIDEO
input connectors.
● When a Master Edit Control-equipped JVC camcorder
is used, the camcorder is capable of controlling the
recorder. Refer to the camcorder’s instruction manual
for operating procedure. (E439EG only)
SET RECORDER’S INPUT
MODE
2
Press NUMBER key “0”. “F-AU” appears in place of a
channel number.
START CAMCORDER
3
Engage its Play mode.
START RECORDER
4
Engage its Record mode.
NOTE:
Connections made to the front panel AUDIO/VIDEO input
connectors automatically override those made to the rear panel
AUDIO/VIDEO input connectors.
1 2
4 5
3
6
8
0
7 9
1
3
2
NUMBER "0"
+
– 00 00 00 00 00 00 00 00 00 00 0
00 00 00 00 00 00 00 00 00 00 0

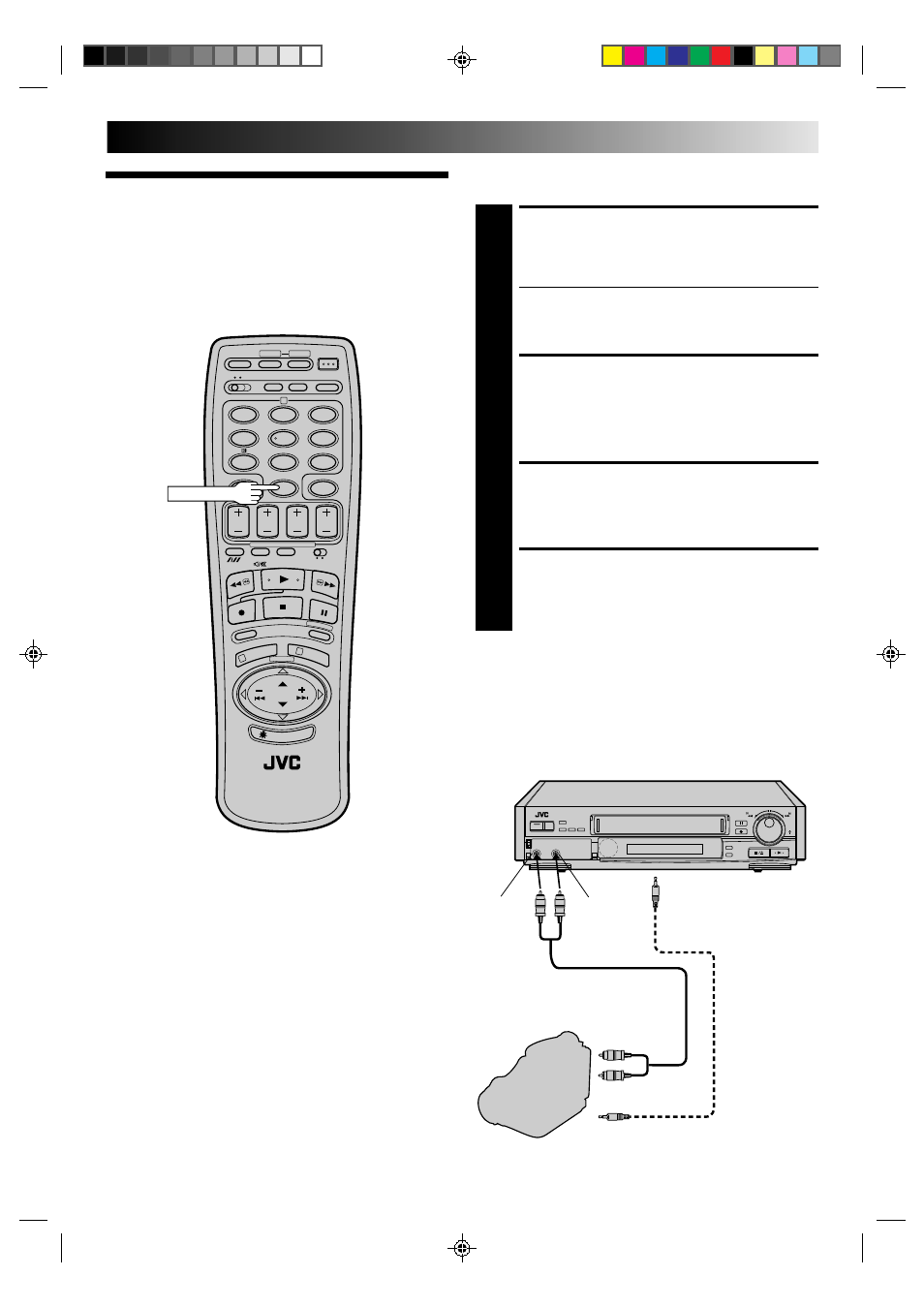

Player
AUDIO
IN
Editing Cable
(not provided)
EDIT
VIDEO OUT
Recorder Your recorder
Camcorder AUDIO OUT
Audio/Video Cable
(not provided)
VIDEO
IN
To the rear panel PAUSE
connector [E439EG only]
