STEEL MOLDBOARD SPECIFICATIONS
BLADE WIDTH 8.0' 8.5' 9.0' HML-10 10’ DAGT-10 10’
BLADE HEIGHT 29 3/8” 29 3/8” 29 3/8” 32” 32”
GAUGE STEEL 11 Gauge 11 Gauge 11 Gauge 7 Gauge 7 Gauge
VERTICAL RIBS 6 6 6 7 7
TYPE OF SPRINGS Extension (4) Extension (4) Extension (4) Extension (6) Extension (6)
NUMBER OF TRIP-EDGE PINS 6 6 6
CUTTING EDGE (OPTIONAL) 2 2 3
PLOW WIDTH AT FULL ANGLE 86” 92” 97"
PUSHFRAME 3" x 2” x 3/16" 3” x 2” x 3/16” 3” x 2" x 5/16"
PIVOT PIN DIAMETER 1 3/16” 1 3/16” 1 3/16”
POWER ANGLING RAMS 1 1/2" x 10" 1 1/2” x 10” 1 1/2” x 10” 2” x 12” 2” x 12”
AVERAGE SHIPPING WEIGHT* 800 Lbs. 825 Lbs. 875 Lbs.
*weight is based on average depending on specific mounting

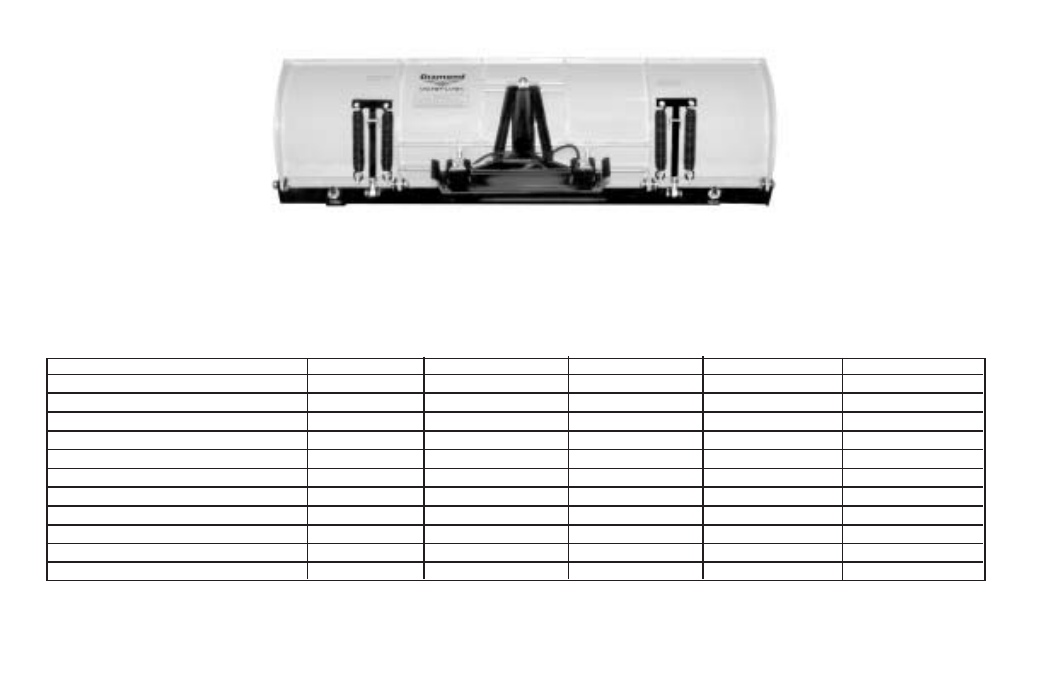

TRIPEDGE SERIES
Models 8.0, 8.5, 9.0
For 3/4 and One Ton 4x4 Standard
Duty Pickups and Cab-Chassis Vehicles
